Summary of Contents for FM Systems PG-1

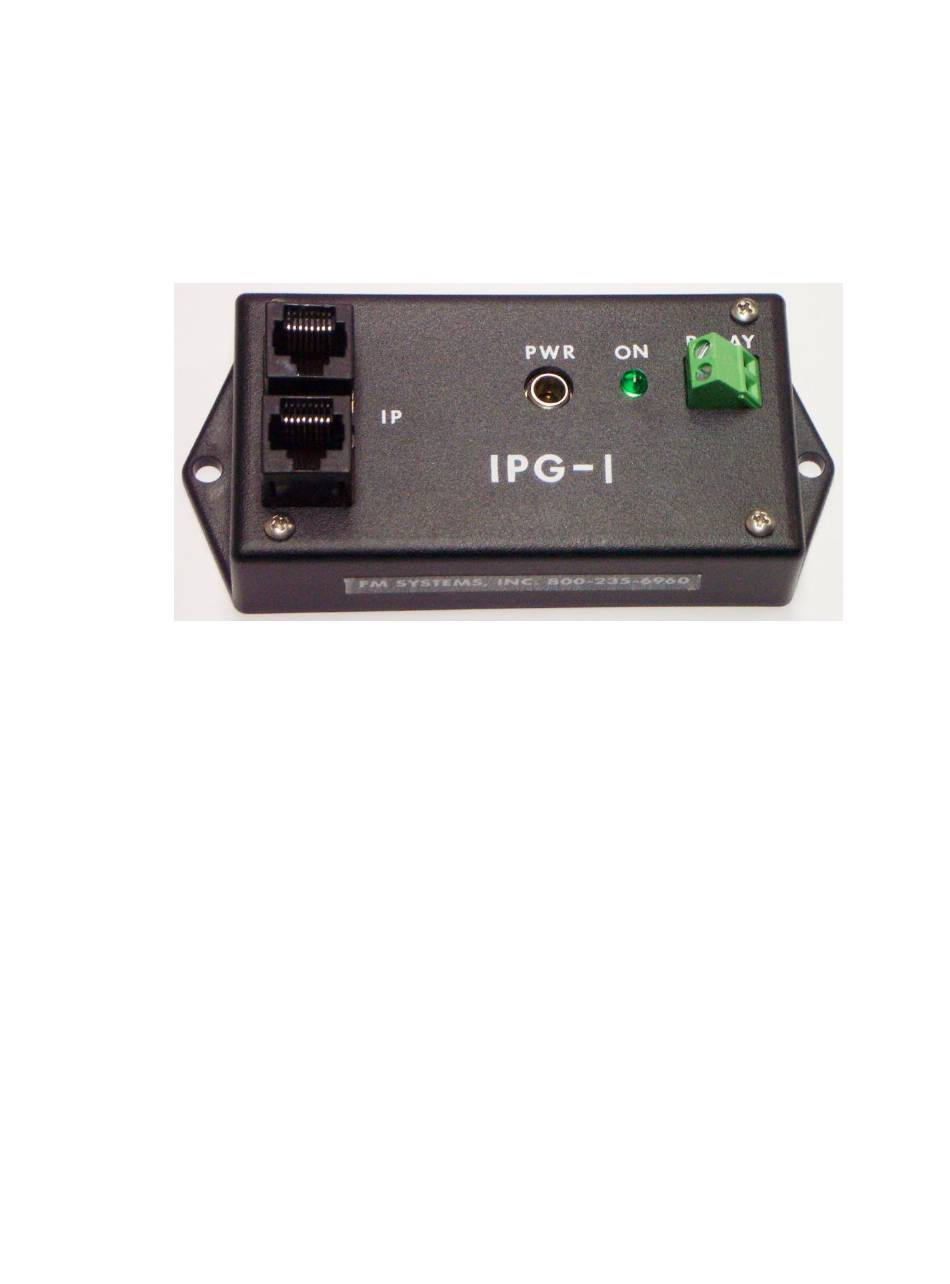

- Page 1 IPG-1 IP CAMERA-GUARD INSTRUCTION BOOK IB6444-01...
- Page 2 TABLE OF CONTENTS DESCRIPTION MOUNTING INSTRUCTIONS HOW TO CABLE THE IPG-1 POWER SUPPLY INSTALLATION OPERATION CARE AND MAINTENANCE APPLICATIONS (WHERE TO USE THE SYSTEM) GROUND LOOPS THAT CAUSE INTERMITTANT DATA PROGRAMMING THE RELAY OUTPUT TROUBLE SHOOTING THE DATA SIGNAL IPG-4.ISB PAGE 1 OF 5...
- Page 3 DESCRIPTION The IPG-1 Camera Guard monitors the communication path of IP camera data signals. This supervisory system will identify the loss of any video data signal due to removal of the camera, loss of power to the camera, a camera cable disconnect, or a defective camera output. The IPG-1 continuously displays the "Data on"...
- Page 4 POWER SUPPLY INSTALLATION The IPG-1 is powered by a 24 VDC wall mount power transformer. Just plug the 24 VDC connector into the jack marked "24VDC PWR". The Green LED will not illuminate until both the power supply and the video data is applied. OPERATION When IP video is applied to the IPG-1 it takes a continuous sample of the camera signal and monitors the data level.
- Page 5 For contact relay output locate the black jumper jack on J2, next to the relay on the top of the PC Board. There are three gold pins under the jumper jack. Select (NO) for Normally Open or (NC) for Normally Closed and place the jumper jack on two of the three pins. The top of the PC Board is marked with graphic to make programming easy.
- Page 6 TROUBLE SHOOTING THE DATA SIGNAL The IPG-1 IP Camera Guard monitors the data flow from camera to the NVR and any switches that might be in the system. The unit detects the loss of data transmission and operates a relay to control pumps and other equipment. This unit will work best when the IP video data is operating at full frame video, or high frame rate setting on the camera.
