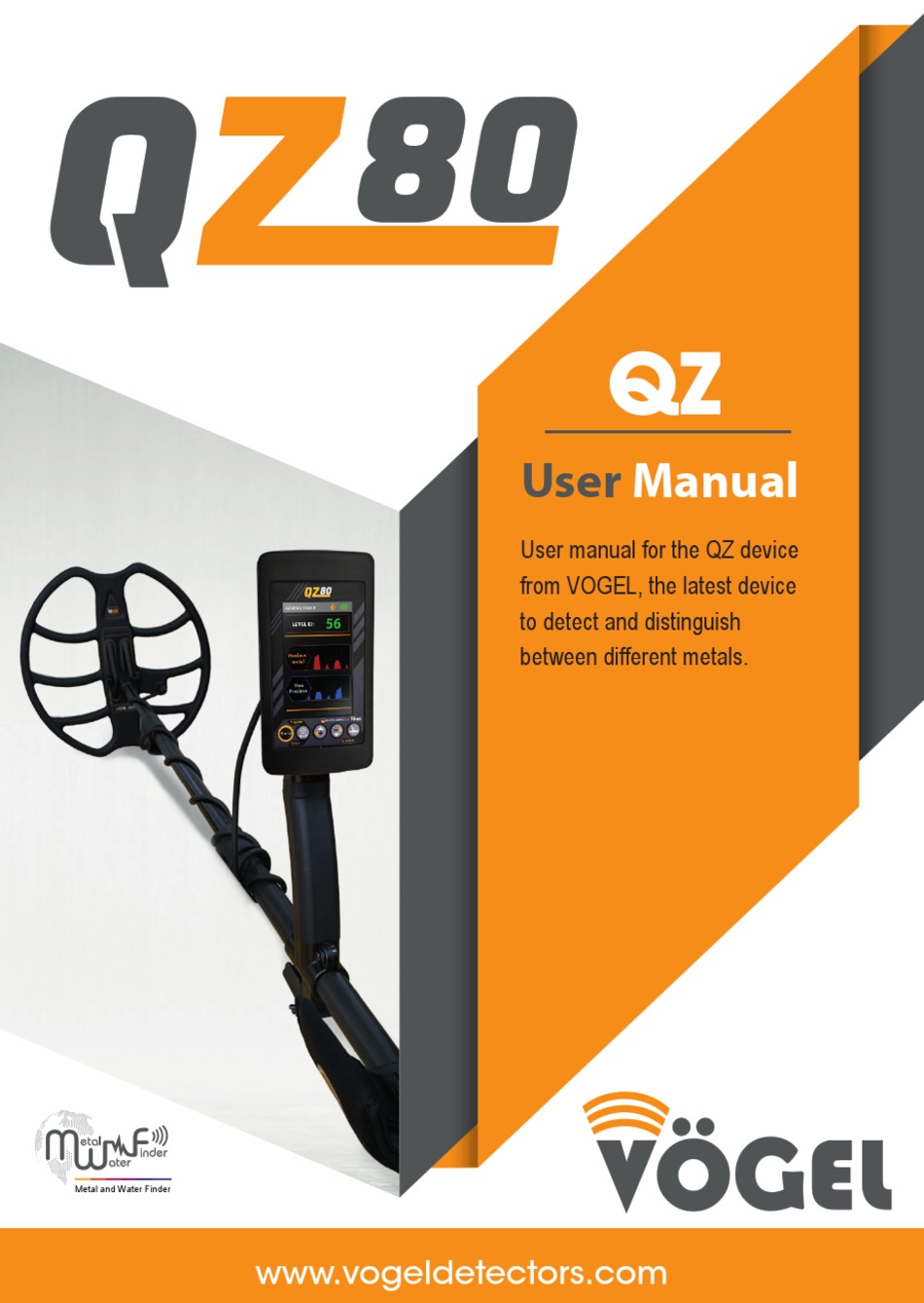

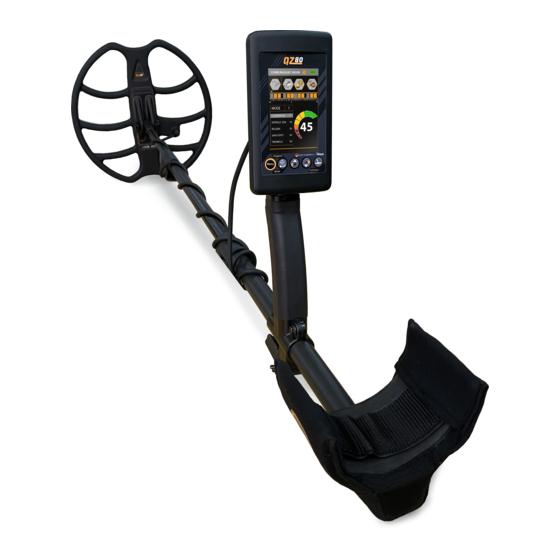

Page 1 User Manual User manual for the QZ device from VOGEL, the latest device to detect and distinguish between different metals. Metal and Water Finder www.vogeldetectors.com...
Page 2 Index page Important notes page Technical Speci cations page Introduction page Characteristics page Device components page Main unit page Assembly page Getting started page Main Unit setup and start working page setting page search setting page Calibration page Search Modes page Treasures Mode page...
Page 3: Important Notes
IMPORTANT NOTES In the case of tampering with the device, the device will lose its security. The device must be connected to the searching coil during operation Do not store the device in a place with high temperatures and humidity. The user strips himself of metal, such as rings watch, or a metal belt The user should practice on how to use the device before setting off for detection and search operations.
Page 4: Technical Specifications
TECHNICAL SPECIFICATIONS search for: Searching for metals, gold and blanks. searching system: Very low frequency VLF system Operator mikrocontroller A system for measuring and processing levels of the electromagnetic field formed around the target and the receiver through the reception coil in the search coil, Operating system analyzing these results and showing them through sound alerts and color graphic indicators on the screen.
Page 5 From -15 °C to 60 °C Operating temperature: storage temperature: From -15 °C to 40 °C It can be ﬆored and operated at an average air Humidity : humidity of 5% to 80%. 5 Kg weight: Dimensions: 4.6X5.7X9 cm 66X41X17 cm Bag dimensions: Page 4...
Page 6 Introduction The QZ80, produced by the German company VÖGEL, is one of the company's beﬆ in metal detector technology. This device is characterized by diﬀerent syﬆems and multiple search options in order to reach the moﬆ accurate results in the search for targets. The QZ80, through its unique search syﬆems, facilitates the work of prospectors and shortens the eﬀort and time spent during...
Page 7 - High-resolution color interactive interfaces to give the search process a lively character. -When you acquire the QZ80 device, you do not need to calibrate the soil for the same search area every time you search, as the device ﬆores the magnetic harmonic value even after turning oﬀ...
Page 8: Device Components
Device components Searching coil - 33 cm Main Unit Designed to Standards to detect the small and medium size pieces. Searching coil - 21cm Designed to standard sensing small sized parts and nuggets. carry handle Device Bag Warranty User Manual Charger Headphons card...
Page 9: Main Unit
Main Unit Power button ON/OFF Pinpoint button Move buttons searching coil socket OK button TFT display Back button Hedphone socket Charger socket speaker Calibration button Page 8...
Page 10 ASSEMBLY We open the handle locks to calibrate the length of the handle. Lengthening or shortening both arms of the carrying handle in proportion to the user. When determining the appropriate length for each of the forearms, we close the locks to give them movement.
Page 11: Getting Started
COR R EC T USE COR R EC T USE GETTING STARTED Shaft height is wrong Shaft height is correct Shaft height is wrong Shaft height is correct In order for the search to be complete and without leaving unchecked areas, it is not possible to move 5cm (~2'') above the ground.
Page 12 MAIN UNIT SETUP AND START WORKING Turn on the device by pressing the Power Button The boot screen will appear and then the interface of the connection mode with the search coil By VÖGEL Metal detektor with MWF Detector association ©...
Page 13 This status appears if the This condition appears if the search coil is connected search coil is not connected The main interface contains two icons. Search to enter the search and settings menu to adjust the device settings and an indicator of the battery charge level is present in all interfaces.
Page 14 SETTING When choosing the settings icon and pressing the enter button, we will see a settings interface that enables us to reset the device. It contains options for adjusting the brightness, sound, and language of the device, in addition to the possibility of restoring the device to factory settings.
Page 15 Language setting: When selecting the language icon to change the language, we press the enter button to go to the languages interface. The device has six languages: English, German, French, Arabic, Spanish and Russian. The transition between these languages is done through the navigation buttons, and to con rm one of the languages, we press the OK button SETTING...
Page 16: Search Setting
SEARCH SETTING When selecting the search icon and pressing the OK button, the search menu appears, which contains the search Mode and search settings, to enter to the search setting press OK. MAIN MENU Setting Search Search settings: To adjust the search settings, there are three options - The option to cancel or activate the sensitivity to iron wich work for the General mode and Treasures mode.
Page 17 Calibration The calibration process must be performed before starting the research process,by pressing Calibratition button. In the ground calibration settings interface, the user is asked to down the search coil from the horizontal position to vertical with a height of 10 cm from the surface of the ground and then scroll it right and left to complete the automatic calibration of the soil by analyzing the magnetic nature of the soil to obtain the magnetic harmonic.
Page 18: Search Modes
Search Modes When entering the search interface, we press the move button (move) to detect the search mode icon then press the OK button to enter the search mode interface, which contains four di erent search modes. Note: When the device exposed to transient signals (magnetic noise), which appears either in the form of an audio alert or indicators on the screen.
Page 19: General Mode
General Mode we can enter to the general search mode by pressing the Enter button, and the general search pattern interface appears. The general search interface contains two graphs, the rst showing the results of precious metals in the search area, while the second shows the results of non-precious metals. in addition to the target frequency, whose value increases by approaching the target.
Page 20 Treasures Mode When selecting the treasure search mode, we press the OK button to show the treasures mode interface, which contains a chart for the graphic analysis of the search process in addition to the list of targets that the device can detect. TREASURES MODE Gold Valuable...
Page 21 TREASURES MODE TREASURES MODE Gold Valuable Gold Valuable Caves Caves & Worthless & Worthless Mineral Mineral Signal form in case of gold/zinc. Signal form in case of precious metals. TREASURES MODE TREASURES MODE Gold Valuable Gold Valuable Caves Caves & Worthless &...
Page 22 Search mode for nuggets and coins When selecting the nuggets and coins search mode, we press the Enter button to show the nuggets and coins style interface, which contains a list of targets that the device can detect. When a target is present, the magnetic intensity of the signal is shown that uctuates between -90 and +90, thus the type of target detected.
Page 23 Manual search settings COINS / NUGGETS The device has been provided with the feature of manual adjustment of the search values to get rid of the instability of the device after performing the calibration as a result of several factors a ecting the search coil, including normal and abnormal ones. This is done by pressing and holding the back button until the search values are selected in gray.
Page 24 Pinpoint detection When you have nished selecting the desired levels, wait for three seconds for the selection triangle to disappear. When the triangle disappears and the Pinpointer button is pressed, it will go to the point search interface. POINT POINTER POINT POINTER MODE Page 23...
Page 25 Point search, which expresses the position of the target relative to the disc. If the target is below the middle of the search coil, the signal is maximum in the search area and decreases in the direction towards the ends of the search coil. Pinpoint mode also turns o motion detection, so the target signal can be heard even if the coil is stationary.
Page 26: Depth Mode
Depth Mode This mode depends on the latest analysis and processing algorithms for the data generated during the search process to determine the depth of the target discovered through the COR R EC T U SE Shaft height is wrong search using one of the previous search modes.
Page 27 Charging It is preferable to turn o the device during the charging process. The total charging process takes two hours. When the charging process is nished, the color of the LED on the charger will change from red to blue. Page 26...
Page 28 NOTES 1- The user must connect the search coil to the device before turning it on. 2- When an unused button is pressed in one of the search modes, a di erent beep sounds. 3- The device must be turned o during the charging process. 4- Use the charger that came with the device.
