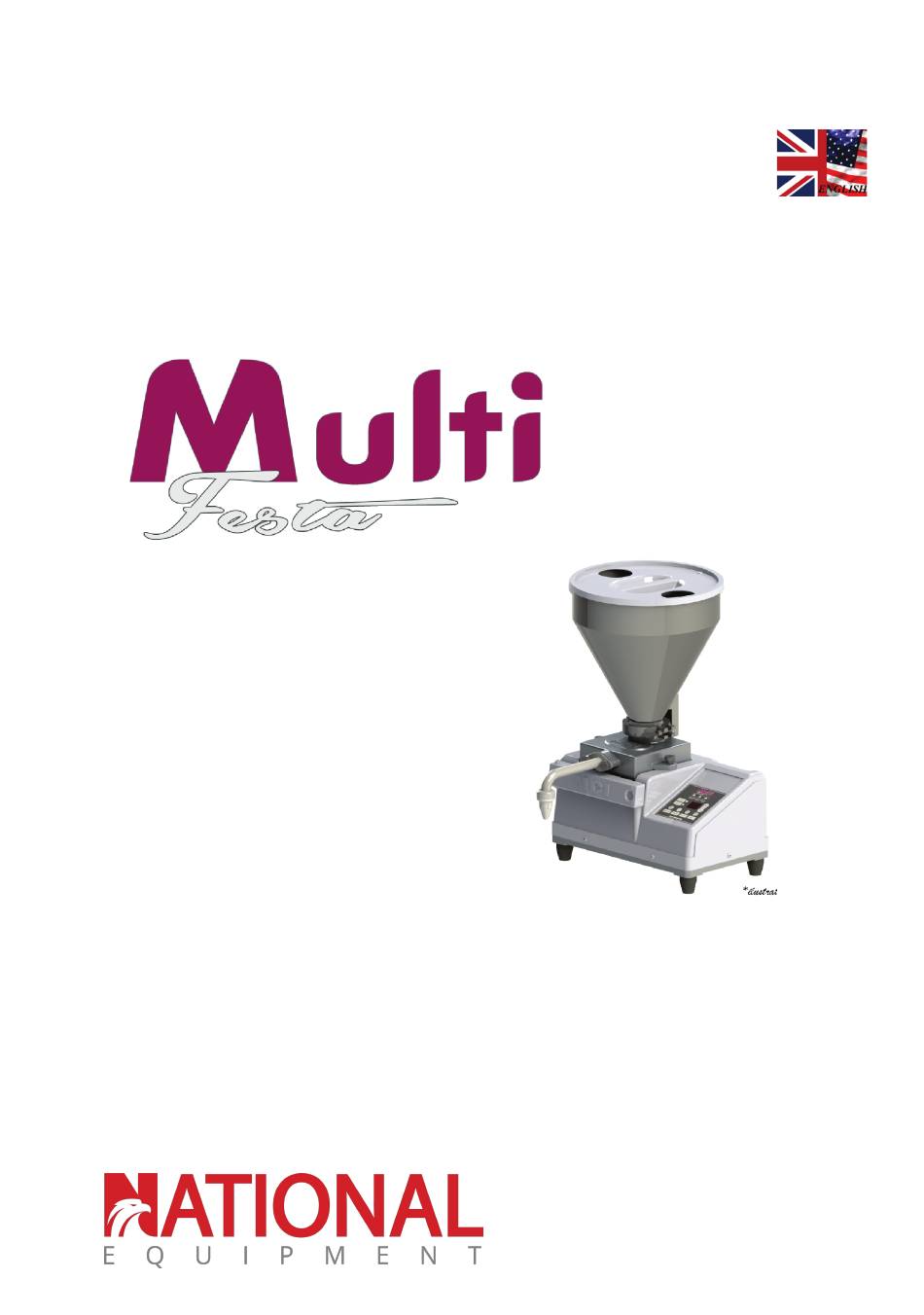

Instruction Manual
00_20
review_115 V
*ilustrative image
AUTOMATIC DOSING OF PRODUCTS
National Equipment Distributors LLC.
624 Matthews-Mint Hill Rd. Suite 122
Matthews, NC 28105 USA
(877) 805-2045
nationalequipmentdistributors.com
WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov
Advertisement
Summary of Contents for MCi Multi Festa
- Page 1 Instruction Manual 00_20 review_115 V *ilustrative image AUTOMATIC DOSING OF PRODUCTS National Equipment Distributors LLC. 624 Matthews-Mint Hill Rd. Suite 122 Matthews, NC 28105 USA (877) 805-2045 nationalequipmentdistributors.com WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov...
- Page 2 FUNCTIONS IN THE ELECTRONIC PANEL PAGE 16 DOSING MODE PAGE 17 CONTINUOUS MODE PAGE 18 CLEANING PAGE 19 ELECTRIC COMPONENTS PAGE 20 ELECTRIC DIAGRAM Multi Festa 60 Hz Model: Batch: Frequency: 2020 0,30 A Year: Serial Number: Rated Current: 45 W 115 V N.A.
- Page 3 3. The MCI equipment shall be installed with suitable electrical grounding. Failure to this electrical grounding may cause electrical damages to the equipment, such as the electronic board burning.
- Page 4 0,20 m (7.87 in) illustrative image Description: Multi Festa, semi-automatic dosing, dose and lling products with creamy or pasty consistency. It has a dosing pump that imparts uniformity in dosage and lling, productivity, economy and operational safety for your business.
- Page 5 SAFETY COMPONENTS Multi Festa provides safety components that fully meet the regulatory standard of safety, containing xed protection, mobile protection and interconnected devices to ensure operator safety in accident prevention. SAFETY SENSOR FOR THE FUNNEL POSITIONING It terminates the general operation of...
- Page 6 IMPORTANT INFORMATION FOR THE USAGE OF THE MULTI FESTA: When using the MULTI FESTA, keep the uniform product volume in funnel to no weight change in dosage. Keep the air-conditioned production environment to not interfere in the product weight...
- Page 7 MULTI FESTA comes with the following accessories: two maniples cabinet pump dosing set and cover for dosing for filling set nozzles to set dosing with stuff Ø8mm injected nozzle code 46199 code 46193 Allen wrench actuator pedal Pump wrench 3 mm (0.11 in)
- Page 8 8 mm (0.31 in) «chuveirinho» code 46047 code 46935 code 48229 Plain straight Ribbed straight Mago nozzle Mago nozzle Mago nozzle Mago nozzle nozzle n#4 - MCI nozzle n#4 - MCI socket n#22 n#10 n#30 code 47616 code 47617 code 48268 code 35724...
- Page 9 Two ways assembly Two ways assembly with dosing nozzles with lling nozzles code 46202 code 46203 Assembly of the double Assembly of the double lling nozzle dosing nozzle «chuveirinho» «chuveirinho» «chuveirinho» assembly «chuveirinho» assembly nozzle wrench assembly 5 ways 3 straight ways 3 curves ways code 48261 code 48218...
- Page 10 12 13...
- Page 11 ITEM CODE QTY. DRAWING DESCRIPTION 48595 01-0347-041 Funnel set 48188 01-0347-028 Pump set 46173 02-0347-012 Retainer - Ø56X36 mm 51453 01-0347-046 Base assembly UL 46142 12-0347-007 Dosing drive 46174 02-0347-013 Sensor drive bearing 48605 02-0347-009 Zinc plated spacer 51842 12-0347-022 Cabinet - UL 04231 04231...
- Page 12 22 24...
- Page 13 ITEM CODE QTY. DRAWING DESCRIPTION 46145 12-0347-006 Funnel cover 51887 02-0347-078 Dosing pump of lobes assembly (with funnel) 23676 23676 Headless Allen screw - M5 x 25mm Maniple - Mam-I 00841 16533 16533 46168 01-0347-013 Dosing pump cover assembly 46162 02-0347-004 Z6 motor gear - dosing pump 46170...
- Page 14 13622 13622 51454 02-0347-068 Lower base - UL 51452 01-0347-049 Drive assembly - UL 46106 02-0347-008 Pump support - Multi Festa dosing Slotted at head screw 04397 04397 - M6x25 mm 50669 07-0000-053 Motor Bosch 310 46103 02-0347-006 Drive support...
- Page 15 CONTINOUS the selected function AMOUNT SPEED QUANTITY RECOIL www.MCI.com.br Recoil Amount It refers to the reversal of the direction of It refers to the time in which the dosing rotation of the dosing lobes that are lobes move , determining the amount/ intended to contain some product volume of the dosed product.
- Page 16 (50, 49, 48 ..1) IMPORTANT INFORMATION FOR THE USAGE OF THE MULTI FESTA: The amount of product in the hopper directly affects the accuracy of weighing. Keep the stable level of product in the hopper, feeding it often as production.
- Page 17 Note: The FILLING NOZZLE assembly contains a LIMITER so that the product to be lled is not fully drilled. Adjust your position according to the size of the product. LIMITER FILLING NOZZLE 1. Connet the Multi Festa in outlet; To operate the machine, the COMAND ENABLE must be lit EMERGENCY SAFETY COMAND...
- Page 18 For CLEANING of the MULTI FESTA, the product should be removed completely from the hopper; Press the button until the "continuous" selection. Press continuously the pedal to remove the product from the hopper. If necessary, make the manual removal of excess of waste in the hopper;...
- Page 19 115 V AC Connector for pedal cable ITEM QTY. CODE DESCRIPTION 50391 Eletronic board 51798 DIN 4 female 51818 Push button pedalboard 50162 Fuse holder Schurter modelo FPG1 (5X20 mm Ip40) 50163 Glass fuse 5 A Ø5x20 mm Schurter 250V DIN 4 male 51797 51551...
