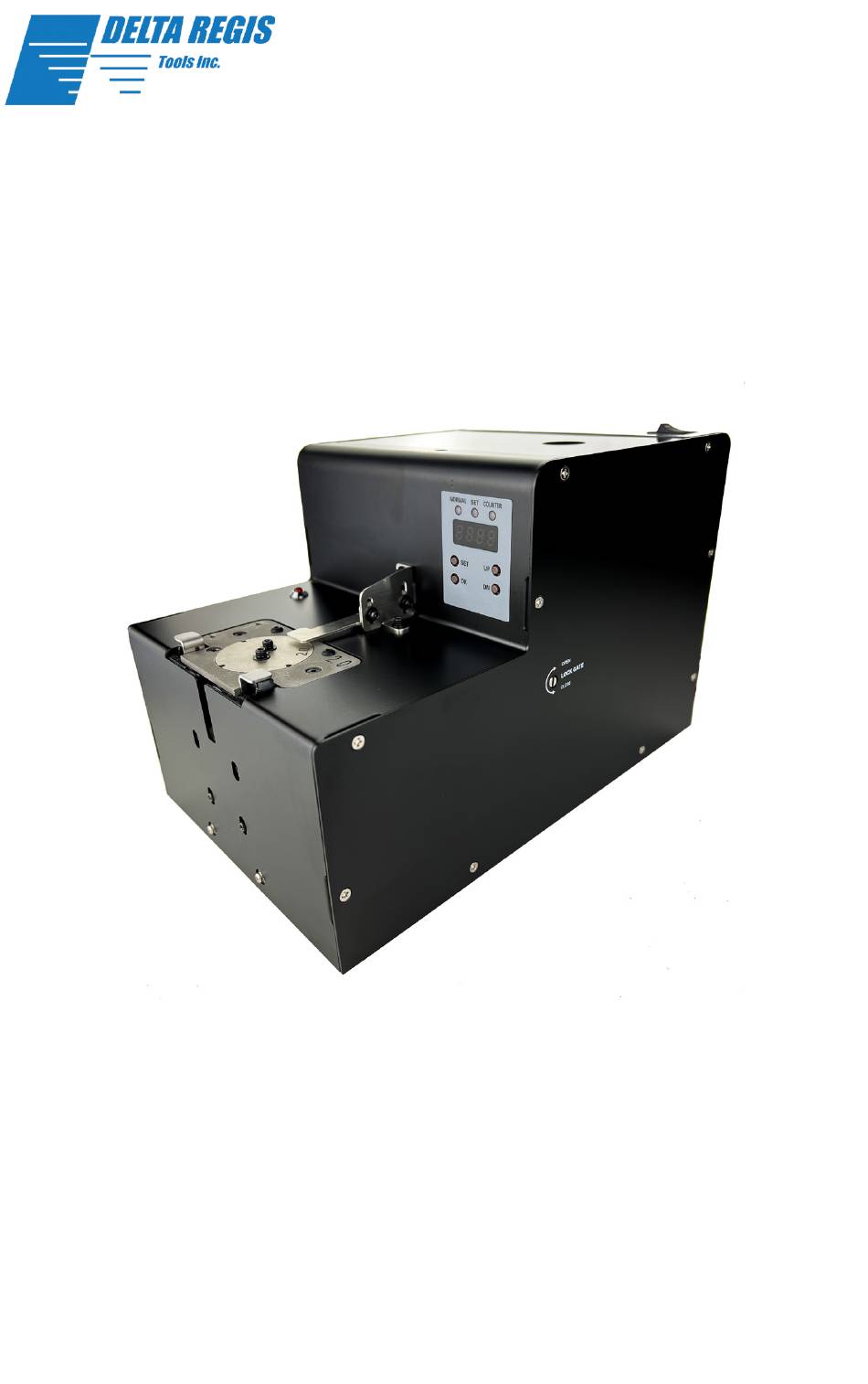

DRFF-530R
Screw Feeder
Operation and Setup Manual
CAUTION — Please read, understand, and follow all operating and
safety instructions in this manual before using a DRFF screw feeder.
If you have any questions or concerns, please contact us at:
Delta Regis Tools, Inc.
7370 Commercial Circle
Fort Pierce, FL USA 34951
Delta Regis_DRFF-530R_M_R0.0
Copyright © 2022 Delta Regis Tools Inc
Ph +1-772-465-4302
Fx +1-772-465-4368
Email: sales@deltaregis.com
Website: www.deltaregis.com
Advertisement
Table of Contents
Related Manuals for Delta Regis DRFF-530R
Summary of Contents for Delta Regis DRFF-530R
- Page 1 If you have any questions or concerns, please contact us at: Delta Regis Tools, Inc. Ph +1-772-465-4302 7370 Commercial Circle Fx +1-772-465-4368 Fort Pierce, FL USA 34951 Email: sales@deltaregis.com Website: www.deltaregis.com Delta Regis_DRFF-530R_M_R0.0 Copyright © 2022 Delta Regis Tools Inc...
- Page 2 Do not attempt to disassemble or repair the screw feeder. Repairs should only be performed by qualified technicians properly trained in the safe operation, troubleshooting, and repair of these devices. Please consult Delta Regis for the location of the nearest service depot.
-
Page 3: Included Accessories
DRFF-530R Screw Feeder Operation and Setup Manual This machine has been set up according to the sample fasteners and/ or technical drawing you had provided us during your purchase. If fine tuning is required, please follow the instructions starting on page 5. -
Page 4: Product Overview
DRFF-530R Screw Feeder Operation and Setup Manual Product Overview 1 - Rail Gates 2 - Power Switch 3 - Screw Present/Error LED 4 - Programming Key Pad w/ LCD 5 - DC Receptacle 6 - Grounding Lug (ESD Applications) 7 - I/O Signal... -
Page 5: User Adjustments
DRFF-530R Screw Feeder Operation and Setup Manual User Adjustments Screw Guide Plate 1. Locate and loosen highlighted screws using a 2mm hex key. 2. Using the included shims, insert under the screw head guide, press down on the plate and tighten screws from step 1. - Page 6 DRFF-530R Screw Feeder Operation and Setup Manual User Adjustments Screw Guide Plate (Continued) 3. Add several screws into the rail assembly. Tilt the screw feeder forward, ensure the screws can smoothly pass under the guide plate. NOTE: When adjusting the screw guide plate, the screws from step 1 must be fully tightened to avoid loosening during use.
- Page 7 DRFF-530R Screw Feeder Operation and Setup Manual Infrared Sensor Adjustment (Continued) 2. Adjust the infrared openings so only half of the opening is exposed, tighten screws from step 1. NOTE: Only half of the infrared opening can be exposed. If the screw cannot be detected, you can make further adjustments.
- Page 8 DRFF-530R Screw Feeder Operation and Setup Manual User Adjustments Brush Adjustment 1. Loosen the highlighted screws using a 2.5mm hex key. www.deltaregis.com...
- Page 9 DRFF-530R Screw Feeder Operation and Setup Manual User Adjustments Brush Adjustment (Continued) 2. Insert several screws into the rail, under the brush. Manually sweep the brush across the screw heads. Adjust the brush so slightly touches the screw heads. Re-tighten the screws from step 1.
-
Page 10: Filling The Hopper
DRFF-530R Screw Feeder Operation and Setup Manual Filling the Hopper Before filling the hopper, turn the machine OFF. Remove the hopper cover. Check for debris or foreign objects. Fill the hopper with screws leaving a minimum of 2 mm space under the rail for thread lengths up to 5mm, 4mm space for thread lengths over 5mm. -
Page 11: Removing Screws
DRFF-530R Screw Feeder Operation and Setup Manual Removing Screws Using a magnetized bit, hold your electric screwdriver at a vertical orientation, move the screwdriver’s bit to the bit guide, slide down the guide to the screw head, momentarily start the screwdriver to engage the bit with the screw and pull the screwdriver away from the feeder. - Page 12 DRFF-530R Screw Feeder Operation and Setup Manual Programming LCD Display & Programming Keys 1. In any state, long press the SET button for 3 seconds, the system enters programing mode, the SET light illuminates, and the program selection is activated. Currently, the first two digits of the display are flashing, and the last two digits are steady to display the program value under this program.
- Page 13 DRFF-530R Screw Feeder Operation and Setup Manual NOTE: Normal Mode = Accumulative Count Counter Mode = Batch Count Program Program Name Program Description (set by using UP/DN) Set the target number of fasteners to count Fastener Count (Program Value: 00-99 (00 disables Counter...
-
Page 14: Error Codes
DRFF-530R Screw Feeder Operation and Setup Manual Enters diagnostic mode and displays the DC Infrared Sensor voltage of the infrared sensors ~0470 when open, Voltage ~5000 when screw present (Program Value: 00: disable; 01 enable) Set according to the thickness of the screw head Screw Specification (Program Value: 00: Large Screw;... -
Page 15: Troubleshooting
DRFF-530R Screw Feeder Operation and Setup Manual Troubleshooting In the event of a fault, immediately disconnect the power supply and perform the following troubleshooting. Problem Reason Solution The power supply is Check the AC adapter and not plugged in or the... - Page 16 DRFF-530R Screw Feeder Operation and Setup Manual Problem Reason Solution Gate opening(s) too Adjust the gates (0.2mm tight gap) Height of screw head Adjust the height of the guide plate too low guide plate (see page 5) Vibration motor speed...
-
Page 17: Maintenance
Check all accessible fasteners to ensure they are tight before reinstalling the covers. Parts and Accessories If you require parts or accessories for your Delta Regis product, please refer to our website or contact us for further information. Use only genuine Delta Regis parts when servicing these products. - Page 18 There is no warranty of merchantability or fitness of purpose. In no event will Delta Regis Tools, Inc. be liable for business interruptions, loss of profits, harm, injury, damage, personal injury, cost of delay, or any other special, indirect, incidental, or consequential losses, costs, or damages.
- Page 19 Product: Screw Feeder Trade Name: Delta Regis Applicable Models: DRFF-530R, DRFF-530, DRFF-630C The undersigned hereby declares, on behalf of Delta Regis Tools, Inc., that the product designated in this declara�on is in conformity with the provisions of: MD Direc�ve 2006/42/EC...
