Summary of Contents for FEIYUTECH Pocket 2
- Page 1 Feiyu Pocket 2 Stablized Camera Instructions V1.0.1...
-
Page 2: Table Of Contents
4.3 Function Button ……………………………………………………………4 4.4 Touch Screen ………………………………………………………………4 4.5 Indicator light instructions ………………………………………………9 5. Using the Feiyu Cam App ………………………………………… 9 5.1 Connect with Feiyu Pocket 2 via Wi-Fi …………………………………9 5.2 Camera Interface ……………………………………………………………10 6. Maintenance ……………………………………………………… 12 7. Specifications ……………………………………………………… 13... - Page 3 1. Quick start guide 2. Online instruction 3. Tutorial Tutorial * The tutorial videos can be watched at FeiyuTech official website or scan the QR code. https://www.feiyu-tech.com/play/ Download APP Connect with Feiyu Cam App to achieve more functions.
-
Page 4: Overview

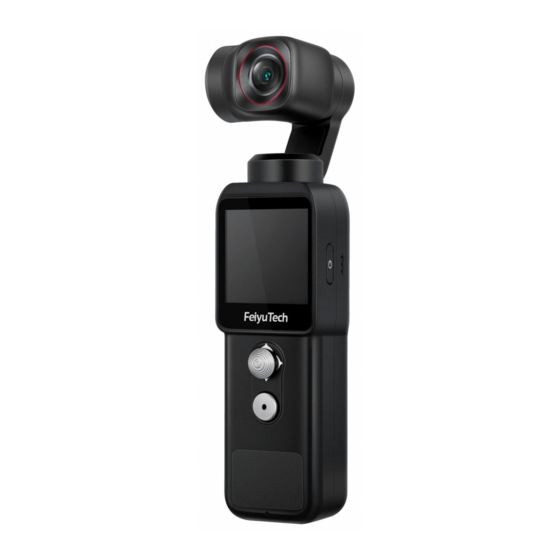

1. Overview Feiyu Pocket 2 is a portable and controllable HD camera which easy to carry. Five-way joystick makes operation much easier. It also come with built-in speaker and 3-axis anti-shake gimbal. Support motion sensing, remote control via APP, you can select photo/video/timelapse modes and remote control camera as your wish. -
Page 5: List
2. List ① ② ③ ④ ⑤ ① Feiyu Pocket 2×1 ④ Wrist strap×1 ② Protective cover×1 ⑤ Manual×1 ③ USB-C cable×1 3. Start to Use (1) Please fully charge the battery before powering on the product for the first time. -
Page 6: Insert Microsd Card
3.2 Insert MicroSD card An UHS-I Speed Grade 3 (U3) rating microSD card (equipped by user) is required. Please format the MicroSD card with Feiyu Pocket 2 when insert it at the first time. 4. Operation 4.1 Power Button Long press for 1s: Power ON/ OFF... -
Page 7: Function Button
4.3 Function Button Move to left / right: Control pan axis Move upward / downward: Control tilt axis Double tap: Recenter Triple tap: Enter / Exit selfie mode Press and hold: Enter lock mode 4.4 Touch Screen Swipe to Left: Switch shooting modes Swipe to right: Enter album Swipe upward: Gimbal control Swipe downward: Enter setting... - Page 8 Users can set video resolution and FPS. Optional video resolution: 4K / 2.7K / 1080P / 16:9 Video Optional FPS: 24 / 25 / 30 / 48 / 50 / 60 /120 Users can shoot slow-motion video. Optional ratio of slow-motion recording: 4K 2X/1080P Slow motion 4X/720P 8P Users can choose static, motion timelapse, or...
- Page 9 Slide upward: ·Enter gimbal control interface. ·Users can recenter gimbal / switch to selfie mode / modify follow sensitivity / switch working modes. Tap to recenter, lens return to center and keep towards front or back as before. Follow mode (1) Gimbal follow mode setting All follow mode(FPV)
- Page 10 Enter calibration. When camera is not level, users can use it to fix. Place the product on a stable horizontal plane such as table, and follow the prompts on the screen to operation. Average metering (1) System Spot metering is available Move settings, users can switch languages / reset system parameters / view device information ( firmware version, SN code, etc.)/...
- Page 11 Shooting mode PRO mode Image White Settings Exposure Color Volume Format balance Photograph √ √ √ Video √ √ Slow motion √ √ √ √ Time-lapse photography √ √ √ Panoramic photo √ √ √ Image Format: Select save format (JPG or J+R) for photo White balance : Select a preset white balance mode or set color temperature manually Exposure: Set ISO, shutter speed or exposure compensation...
-
Page 12: Indicator Light Instructions
Red light keeps on Charging indicator Photo indicator 5. Using the Feiyu Cam App 5.1 Connect with Feiyu Pocket 2 via Wi-Fi Connect pocket Turn on Feiyu Cam App, tap [ Feiyu Pocket ] No device connected Help option, long press shutter button to turn on Wi-Fi, follow the prompts to connect Feiyu pocket. -
Page 13: Camera Interface
5.2 Camera Interface [3] [4] [5] [21] [20] [19] [18] [17] [16] [10] [15] [14] [13] [12] [11] [1] Album Enter album [2] Lock Screen orientation lock [3] Battery indicator Show battery level of Feiyu pocket. [4] File format Prompt the file format of the saved file. [5] Storage spaces Display remaining storage spaces. - Page 14 Modes Photo- Slow Panoramic Video Timelapse Hyperlapse Parameter graph motion photo Mounting/Handheld mode √ √ Viewing angle √ √ √ √ √ √ Anti-flicker √ √ √ √ √ √ Watermark √ √ √ √ √ Proportion √ Photo format √...
-
Page 15: Maintenance
Fast follow [17] Follow sensitivity Smooth follow Users can use smartphone to control pan and [18] Smartphone tilt axis through motion sensing. motion sensing mode *Need smartphone gyroscope sensor support. Select the object in camera interface to lock [19] AI tracking it, and camera will auto rotate to follow the object movement. -
Page 16: Specifications
7. Specifications Product Size 29.8×40.6×124.6mm ( Working state ) Weight 127g Material Aluminum alloy, ABS/PC Waterproof Capacity : 875mAh Category of Battery: lithium-ion battery Battery Battery Power: 6.738Wh Voltage: 7.7V Operating Temperature: 0℃ ~+40℃ 220min (Working at 1080 60fps) Working Time 190min (Working at 4K 30fps）... - Page 17 3. DO NOT disassembly the product except marked detachable. It need send to FeiyuTech after-sales or authorized service center to fix it if you accidently disassembly and cause abnormal work. The relevant costs are borne by user.
- Page 18 Find More Features Facebook Youtube Twitter Instagram...
- Page 19 This document is subject to change without notice. If you have any questions about this document, please contact us by the following ways. Manufactured by: Guilin Feiyu Technology Incorporated Company Website: www.feiyu-tech.com Tel: +86 773-2320865 E-mail: support@feiyu-tech.com...
