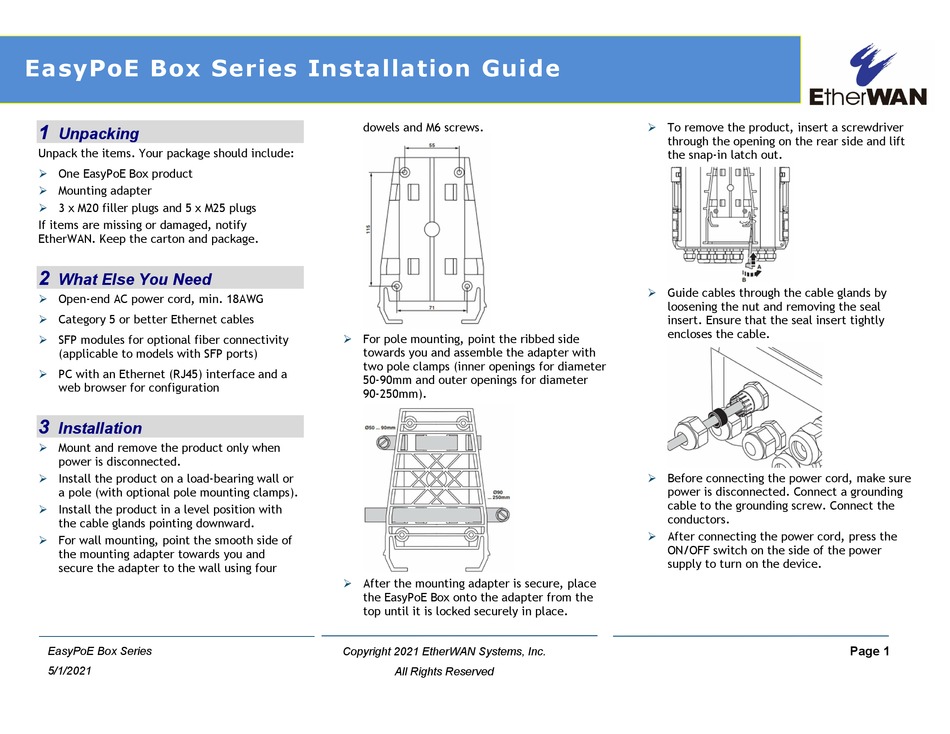

EtherWAN EasyPoE Box Series Installation Manual

EasyPoE Box Series Installation Guide
1
Unpacking
Unpack the items. Your package should include:
One EasyPoE Box product

Mounting adapter

3 x M20 filler plugs and 5 x M25 plugs

If items are missing or damaged, notify
EtherWAN. Keep the carton and package.
2
What Else You Need
Open-end AC power cord, min. 18AWG

 Category 5 or better Ethernet cables
SFP modules for optional fiber connectivity

(applicable to models with SFP ports)
 PC with an Ethernet (RJ45) interface and a
web browser for configuration
3
Installation
Mount and remove the product only when

power is disconnected.
Install the product on a load-bearing wall or

a pole (with optional pole mounting clamps).
Install the product in a level position with

the cable glands pointing downward.
 For wall mounting, point the smooth side of
the mounting adapter towards you and
secure the adapter to the wall using four
EasyPoE Box Series
5/1/2021
dowels and M6 screws.
 For pole mounting, point the ribbed side
towards you and assemble the adapter with
two pole clamps (inner openings for diameter
50-90mm and outer openings for diameter
90-250mm).
After the mounting adapter is secure, place

the EasyPoE Box onto the adapter from the
top until it is locked securely in place.
Copyright 2021 EtherWAN Systems, Inc.
All Rights Reserved
 To remove the product, insert a screwdriver
through the opening on the rear side and lift
the snap-in latch out.
Guide cables through the cable glands by

loosening the nut and removing the seal
insert. Ensure that the seal insert tightly
encloses the cable.
 Before connecting the power cord, make sure
power is disconnected. Connect a grounding
cable to the grounding screw. Connect the
conductors.
After connecting the power cord, press the

ON/OFF switch on the side of the power
supply to turn on the device.
Page 1
