Garmin GPSMAP 60CSx Quick Start Manual

Marking Your Location as a Waypoint
A waypoint is a geographic location that you specify, it can be
your current location, a point on the Map Page or any item from
the Find Feature database. Waypoints are saved to the Find Menu.
1. Press and release the MARK
key to display the Mark
Waypoint Page. Observe that
your current position is
assigned a map symbol, a
unique identification number,
a date and time of recording,
location coordinates, and if
available elevation and depth.
2. To save the waypoint
to the Waypoints List, use
the ROCKER key to select
"OK" and press ENTER.
To personalize the Waypoint, refer to the "Using Waypoints"
section of the Owner' s Manual.
Using the Map Page
The Map Page displays a detailed
map of the area around your current
location. You can view your progress
when moving or navigating to a
chosen destination. The IN and OUT
keys allow you to change the map
scale and configurable data fields
provide navigation information.
1. Press the PAGE key to cycle
the Main Pages until the
Map Page is displayed.
2. Press the MENU key to view options for the Map Page.
3. Begin to move about and observe the Position Arrow
on the map. Use the ROCKER key to move the Panning
Arrow to highlight a map item or view more map area.
Refer to the Owner' s Manual for more details.
Finding a Destination (Waypoint)
You can search for a destination using the Find Menu. A destina-
tion can be any map item such as a Waypoint, City, or Point of
Interest (restaurant, museum, etc.) available from the map database.
Without downloaded detailed map data from Garmin MapSource
only waypoints, cities, interstate exits and geocache points can be
used as destinations.
1. Press the FIND key to display the Find Menu.
2. Use the ROCKER key to select the Waypoints icon and
then press ENTER to display the list of waypoints. By de-
fault, the list shows only those nearest to your current
location. Press the MENU key to view the options list.
3. Use the ROCKER key to scroll through the list until the
desired waypoint is highlighted. Then press ENTER to
display the information page for that waypoint.
4. Use the ROCKER key to select the "Go To" button at the
bottom of the page. Then press ENTER to begin navigation
to the waypoint.
Waypoint Information
Page
Using the on-screen buttons
allows you to: delete the
waypoint, view it on the map
page or navigate to it.
Find Menu
Displays only these
Find item groups
when detailed map
Waypoints List
data has not been
downloaded.
Navigating to a Waypoint
When using "Go To" to navigate, you are directed to follow a
direct line (or course) to the waypoint. The direction you are to
move is the heading (eg. N, S, E, W). If you stray off course you
, can use a bearing (compass pointer) to be redirected toward your
®
destination. The Map, Compass and Trip Computer Pages use these
elements to direct your navigation efforts.
1. Press the PAGE key repeatedly until the Compass Page is
displayed. This page contains a "Bearing Pointer" and a
"Compass Ring".
The Bearing Pointer indicates the direction to go and the
Compass Ring rotates to indicate North orientation when
you begin to move. Digital Data fields at the top of the
page display selectable navigation information such as
speed, distance to go, elapsed time, etc.
2. Press the QUIT key to move to the Map Page and observe
your progress toward the waypoint. A Bearing line displays
on the map and the Position Arrow moves as you move.
3. Press the QUIT key again to move to the Trip Computer
Page. This page provides travel data such as a trip odom-
eter, maximum speed, etc.
4. To stop navigation, press the MENU key with the Com-
pass or Map Page displayed, then select "Stop Naviga-
tion" and press ENTER.
Compass Page Map Page
© Copyright 2005 Garmin Ltd. or its subsidiaries
Part Number: 190-00482-01 Rev. A

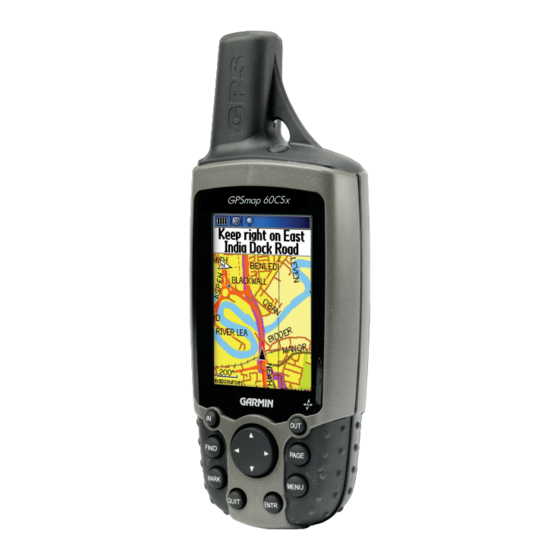

GPSMAP
with sensors and maps

quick start guide

GPS Antenna
Power/Backlight Key
Color LCD Display
In/Out (Zoom) Keys
Page Key
Rocker Key
Find Key
Mark Key
Quit Key
Enter Key
Trip Computer
Menu Key
Printed in Taiwan
® 60CSx
