INSTRUCTION MANUAL

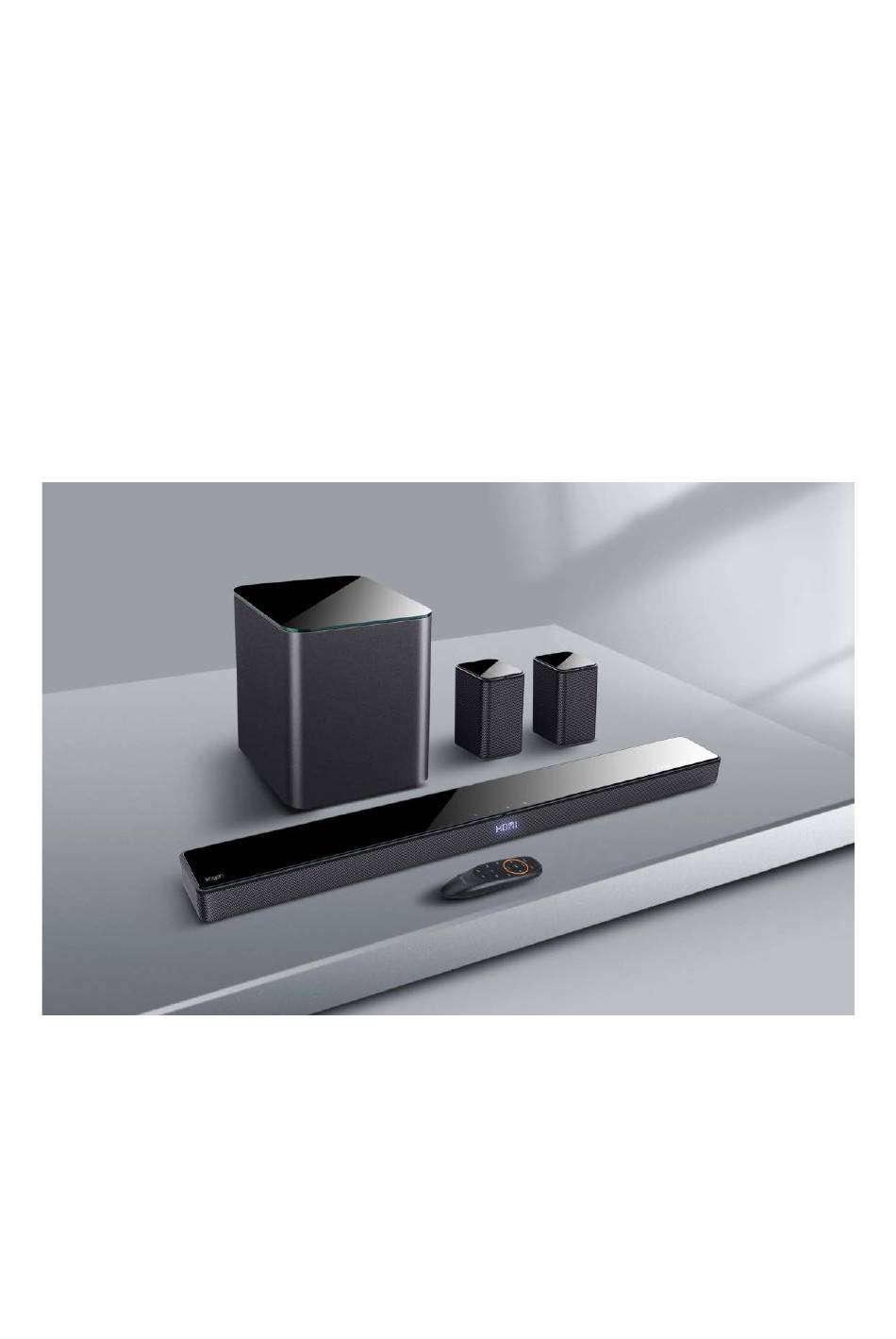

5.1 Soundbar with Wireless Surround Speakers and Wireless Subwoofer

Model: S5

Thank you for purchasing your new

5.1 sound bar system. We recommend that you spend some time reading

this instruction manual in

order that you fully understand all the operational features it offers. Read all the

safety instructions carefully before use and keep this instruction manual for future reference.

Table of Contents

Need help?

Do you have a question about the S5 and is the answer not in the manual?

Questions and answers

Summary of Contents for Maniway S5

Page 1 INSTRUCTION MANUAL 5.1 Soundbar with Wireless Surround Speakers and Wireless Subwoofer Model: S5 Thank you for purchasing your new 5.1 sound bar system. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. Read all the...
Page 2: Safety Precaution
SAFETY PRECAUTION IMPORTANT SAFETY INSTRUCTIONS Caution: To reduce the risk of electric shock, do not dismantle the product and do not expose the apparatus to rain or moisture. No user-serviceable parts inside. Refer servicing to qualified personnel only. Explanation of Graphical Symbols: The lightning flash within an equilateral triangle is intended to alert you to the presence of un-insulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute an electric shock to a person or persons.
Page 3: Care And Maintenance
9. Object and Liquid Entry - Never push objects of any kind into this product through openings, as they may touch dangerous voltage points or short-circuit parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. 10.
Page 4 Product Over view Sound Bar Button Press to switch the unit between ON and STANDBY mode. /SOURCE Button Press this button to select different operating modes (BT, AUX, USB, OPTICAL, COAXIAL,HDMI). 3. -Button Press to decrease the volume level. 4.+Button Press to increase the volume level.
Page 5 Subwoofer Front Back Bottom 1. Pair button 2. Pairing Indicator (Steady Blue=Linked, Flashing Blue=Unlinked) 3. AC Socket 4. Power On/Off Switch 5. Subwoofer Speaker Surround Speaker (Main Speaker "R") 1. Mounting hole 2. DC in Jack 3. Pair Button 4. Audio Out Jack(To the Surround speaker "L") 5.
Page 6 Remote Control : Switch the unit between ON and STANDBY mode. 2. SURR–: To adjust the surround speaker volume level down. 3. SURR+: To adjust the surround speaker volume level up. 4. +: Press to adjust main volume level up. : In Bluetooth/USB mode, skip to previous track.
Page 7 HDMI is an interface that enables the digital transmission of video and audio data with just a single connector. HDMI prevents any degradation to the signal due to conversion to analogue and maintains the video and audio quality of the original digital source. HDMI IN-1 &...
Page 8: Wall-Mounting The Soundbar
*Not all TVs have the audio outputs shown above. To connect the Sound Bar directly to your other devices (Blu-ray player, game system, etc) see your device’s user manual. **When using either of the Digital Inputs, if the status indicator light is flashing quickly: (A) Ensure that the Optical cable or Coaxial cable is properly connected;...
Page 9: Basic Operation
BASIC OPERATION POWER ON/STANDBY & PAIRING THE SUBWOOFER TO THE SOUND BAR AT THE FIRST TIME USE Before connecting the AC power, ensure that the power supply voltage corresponds to the voltage printed on the back or the underside of the unit. 1.
Page 10 2. Activate Bluetooth on the compatible device, and set it to search for compatible devices. 3. Select the speaker name: "S5 " from the list of found devices. Note: Only one playback unit can be connected to the speaker. If the speaker is already connected to another playback unit, the speaker will not appear in the Bluetooth selection list.
Page 11: Usb Playback
If pairing has been carried out successfully, a prompt sound is heard meanwhile, the “bT” symbol stops flashing. 5. After connection is complete, you can listen to music wirelessly through Bluetooth and select music in Bluetooth device. 6. Press “+”/ “–” button to raise/lower the volume level. 7.
Page 12: Troubleshooting
• During any input mode, if you plug a USB storage device into the unit, the input mode will automatically change to USB playback mode. TROUBLE SHOOTING Should you experience difficulties in the use of this player, please refer to the following chart. PROBLEM POSSIBLE CAUSE SOLUTION...
Page 13: Technical Specification
TECHNICAL SPECIFICATION Power Supply Soundbar and rear speakers ………………………………………..……………………………………DC IN 20V/1.8A Subwoofer ……………………………………………………………………………………………AC 100-240V 50/60Hz Power Output (RMS)……………………..…….. (20Wx2+20W)(soundbar) +90W (sub)+20Wx2(rear speakers) Speaker drivers Soundbar……………………………………………….…..…. 4Ω, 15W, runway shape (45*100mm) x4+1.75"x4 Subwoofer………………………….…………………………………………………………..….………. 4Ω, 100W, 8'' x 1 Rear Speaker…………………………………………………...……………………………………..…8Ω, 20W, 2.5'' x 2 Transmission frequency......................
Page 14: Fcc Warning
FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
