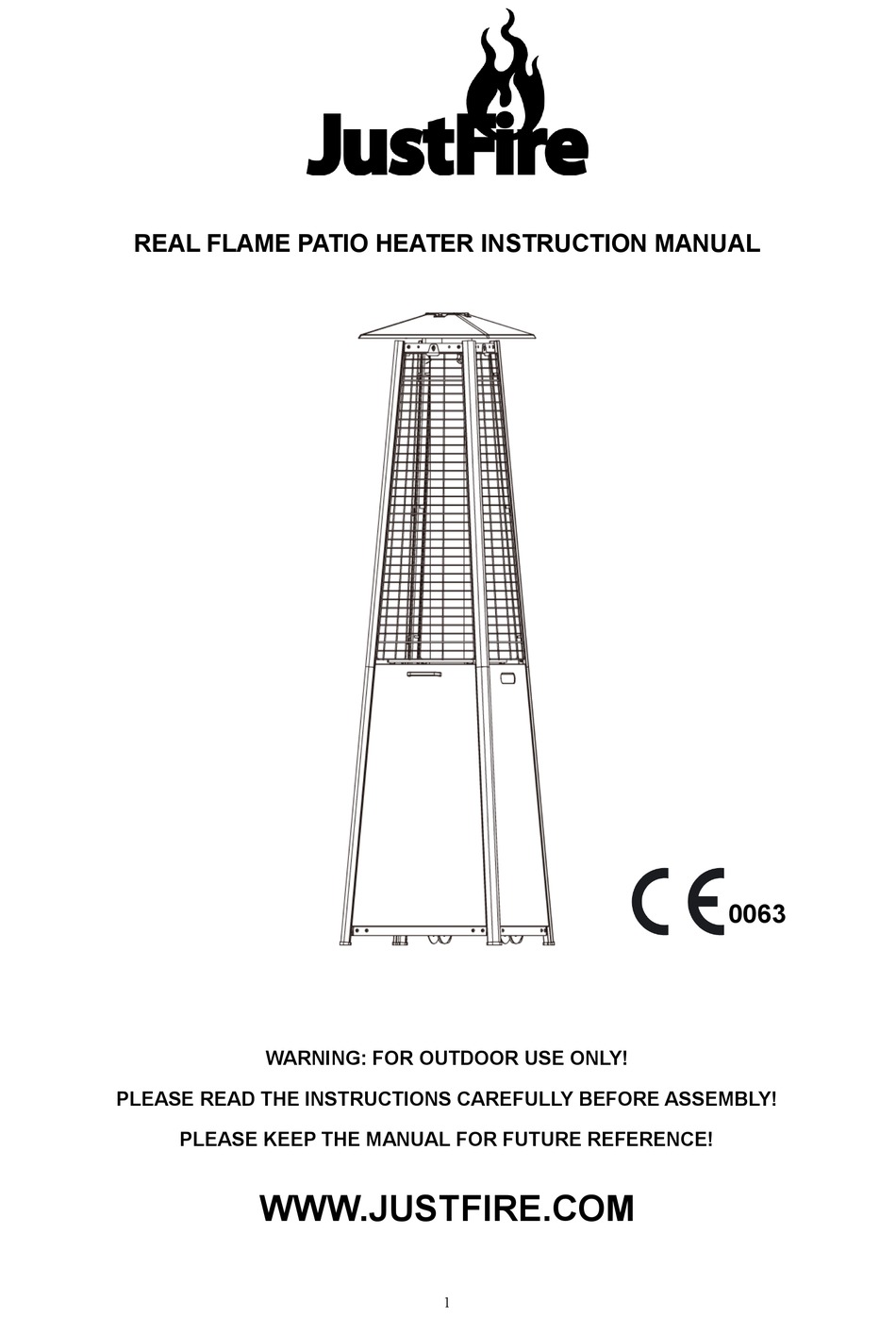

- Page 1 REAL FLAME PATIO HEATER INSTRUCTION MANUAL 0063 WARNING: FOR OUTDOOR USE ONLY! PLEASE READ THE INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY! PLEASE KEEP THE MANUAL FOR FUTURE REFERENCE! WWW.JUSTFIRE.COM...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Patio Heater Safety Warnings ------------------------------------------- Part List & Hardware ------------------------------------------------------- Exploded View --------------------------------------------------------------- Patio Heater Assembly ---------------------------------------------------- Leak Testing ------------------------------------------------------------------ Gas Requirement ----------------------------------------------------------- Connecting To a Gas Cylinder ------------------------------------------- Operating Instructions ----------------------------------------------------- Important Safety Rules ---------------------------------------------------- Maintenance ----------------------------------------------------------------- Servicing ---------------------------------------------------------------------- Storage ------------------------------------------------------------------------ Troubleshooting--------------------------------------------------------------... - Page 3 ● In the event of gas leakage, the appliance shall not be used or if alight, the gas supply shall be shut off and the appliance shall be investigated and rectified before it is used again. ● Checking the tubing or the flexible hose per month and each time the cylinder is changed. ●...
- Page 4 MESH GUARD GLASS TUBE RUBBER RING CHAIN (ASSEMBLED WITH DOOR) MODEL H1507 DOESN’T INCLUDE THIS PART PLATE COVER BURNER ASSEMBLY REAR PAENL OF TANK HOUSING SUPPORT BAR – LOWER SIDE PANEL OF TANK HOUSING DOOR OF TANK HOUSING BOTTOM PLATE HARDWARE PART # PART NAME...
-
Page 5: Exploded View
M5 F TAPPING ST4.2X9.5 SELF TAPPING SCREWS & WASHER SCREWS & M5 WASHER EXPLODED VIEW PATIO HEATER ASSEMBLY ASSEMBLY INSTRUCTIONS ● List of Required Tools: Philip Screwdriver ● Leak Detection Solution: one part detergent and three parts water ● Assemble all nuts and bolts loosely at first. Tighten all connections after completion of assembly. This eases your work and increase the stability of the appliance. - Page 6 If any part is missing or damaged, do not attempt to assembly this product, Contact customer service for ● replacement parts. Assembly should be performed on a flat, level, non-abrasive surface. ● ● ESTIMATED ASSEMBLY TIME: about 45 - 90 minutes. STEP1: Connect and fix the 4 Support Bar –...
- Page 7 STEP 3: Obliquely insert and attach 2pcs Side Panels (12) and 1pc Rear Panel (10) into tank housing using 18pcs M5 self-tapping screws and washers (CC). Best affix two opposite sides first, fastening the screws diagonally. Note: Do not close the door where is near to the control knob! STEP 5: Attach Flame Screen (2) to the top of Support Bar-Upper (3) and fix the connection with 2pcs M5 screws and washers (BB), (See FigureⅠ, Ⅱ).
- Page 8 STEP 7: Place the whole upper parts to top of tank housing assembly. Make sure match the top ends of tank housing assembly with the bottom slot of Support Bar – Upper (3). Match the threaded holes and fix each connection with 2pcs M5 Screws and Washers (BB) STEP 8: Insert 6 projecting ends of each Mesh Guard (4) into the seat...
-
Page 9: Leak Testing
STEP 9: Fix Rubber Ring (6) into the bottom of Glass Tube (5). Insert the top end of glass tube into the bottom hole of Flame Screen (2) as much as possible. Keep glass tube vertically and sit it in the hole of Plate Cover (8). NOTE: GLASS TUBE IS FRAGILE PART, PLEASE HANDLE GLASS TUBE CAREFULLY AND SLOWLY! STEP 10: Assemble Mesh Guard (4) in the front. -
Page 10: Connecting To A Gas Cylinder
length of 50cm (BS3212 and EN1763-1). Choose the proper regulator according to outlet pressure in the technical table in page 14. You will need to purchase suitable gas hose and regulator from your local gas dealer if the appliance does not include gas hose and regulator. -
Page 11: Important Safety Rules
TO LIGHT THE PATIO HEATER ● The pilot should be lit and the knob set to PILOT. ● Hold knob depressed gently and turn anti-clockwise to LOW. ● When mesh glows lit, turn knob clockwise from Low to HIGH as needed. Note: The burner may be noisy when initially turned on. -
Page 12: Servicing
■ Heater makes popping noises. ● Spiders and insects can nest in burner or orifices. This dangerous condition can damage the heater and render it unsafe for use. Clean burner holes by using a heavy duty pipe cleaner. Compressed air may help clear away smaller particles. - Page 13 Open gas line and bleed it (pressing Air in the gas line control knob in) for not more than Pilot won’t light 1-2 minutes or until you smell gas Low gas pressure Gas cylinder low or empty Use match to light pilot, and obtain new Igniter fails igniter and replace.
-
Page 14: Technical Data
TECHNICAL DATA 1.9m Real flame patio heater Model H1501 is 1.9m flame heater with stainless steel base Model H1502 is 1.9m flame heater with powder coated steel base Model H1505 is 1.9m flame heater with wicker base Model H1507 is 1.9m flame heater with LED panels and LED lights Heat input: ∑Qn(Hs)=11.2kW... - Page 15 IN THE EVENT OF ANY PROBLEM, PLEASE ALWAYS CONSULT YOUR LOCAL DEALER. ! 1 5...
