Jester 43212S Quick Start Manual

OBC Bypass Kit Instructions for Kit #43212S

Auxiliary Wiring for 1995-2014 Precedent Golf Cars

Precedure:
1. Remove charger DC cord set plug from car receptacle
if plugged in at this time.
2. Lift and remove the seat on the golf car and place the
Run/Tow switch to the TOW position.
3. Remove hardware and ALL wires from the Negative
("-") battery post on the last battery in the series or
pack.
4. Remove the access panel in the golf club bag storage
well area on the back of the car and cover the motor
with a towel to protect yourself from getting
scratched on the motor terminals when reaching into
the cavity.
5. Open the plastic protective covering at the back of
this cavity which covers the OBC, controller,
solenoid, and other parts.
6. Find and disconnect the single Packard connection which connects the vehicles
charging receptacle to the OBC.

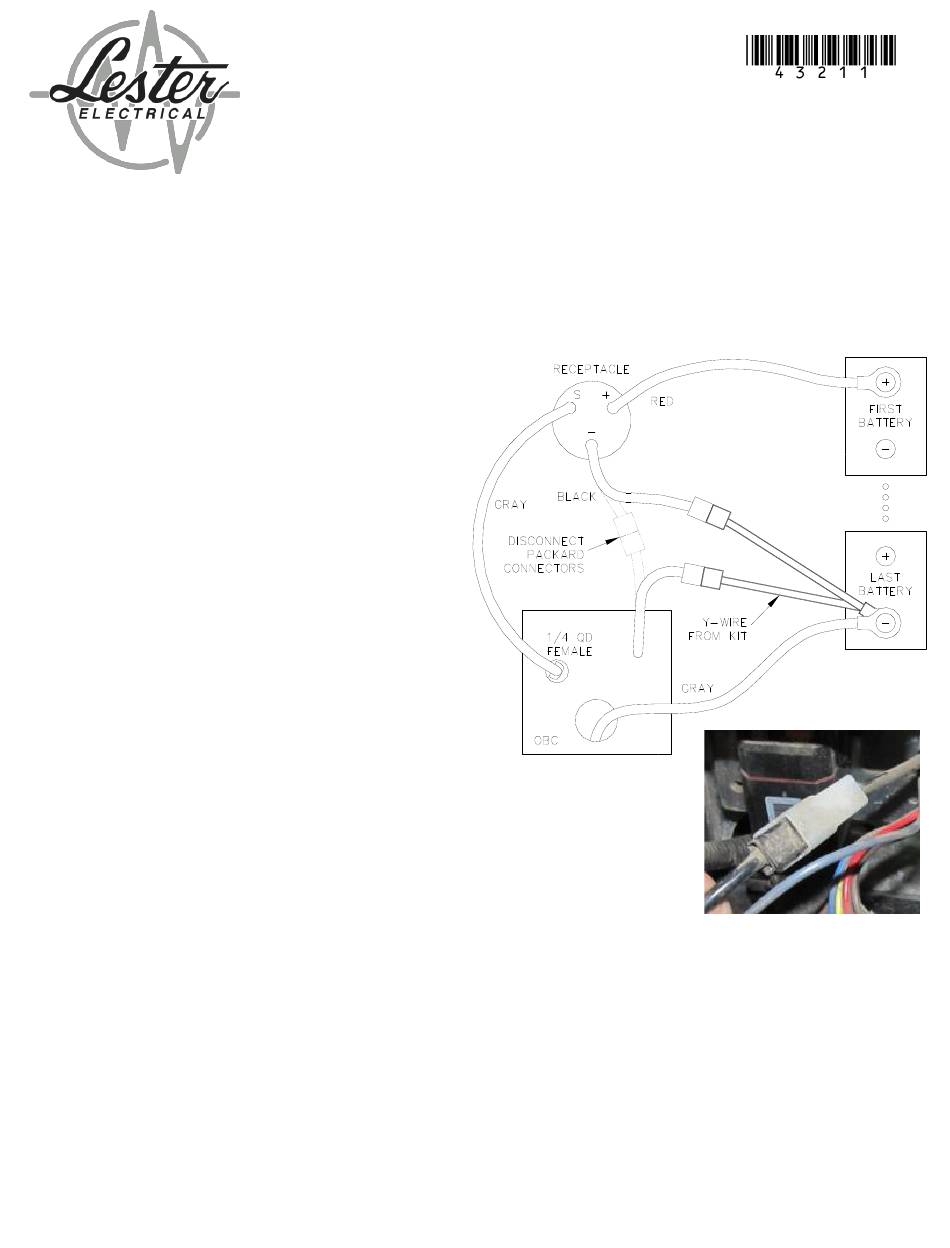

7. Using the supplied Y-wire assembly in the kit, connect it between the previously
disconnected Packard connector (making sure the connections are fully engaged)
and route the ring terminal end of the wire assembly out from this area to the
battery storage compartment.
8. *Optional: Vehicle Lockout / Inhibit circuit.
(See page 3 at this time if you would like to activate this feature)
9. Re-install previously removed covers from steps 5 and then 4.
10. Connect 5/16" ring terminal from y- wire routed in step 7 along with ALL wires previously removed in step 3 to the
Negative ("-") post on the last battery in the series or pack and re-install hardware from step 3. Refer to your
particular battery manufacture for torque specifications on battery hardware.
11. Switch the Run/Tow switch to the RUN position.
12. Re-install the seat.
Installation complete.
1
Packard Connector
43211B
