Kee safety Easi-Dec Assembly Instructions

Easi-Dec Access Systems Ltd.,

Merlin House,

Blaydon Road,

Sandy

SG19 1RZ

Tel:

+44 ( 0 ) 1767 691812

Fax:

+44 ( 0 ) 1767 691802

E-Mail:

info@easi-dec.com

Internet: www.easi-dec.com

SAFETY AT THE HIGHEST LEVEL

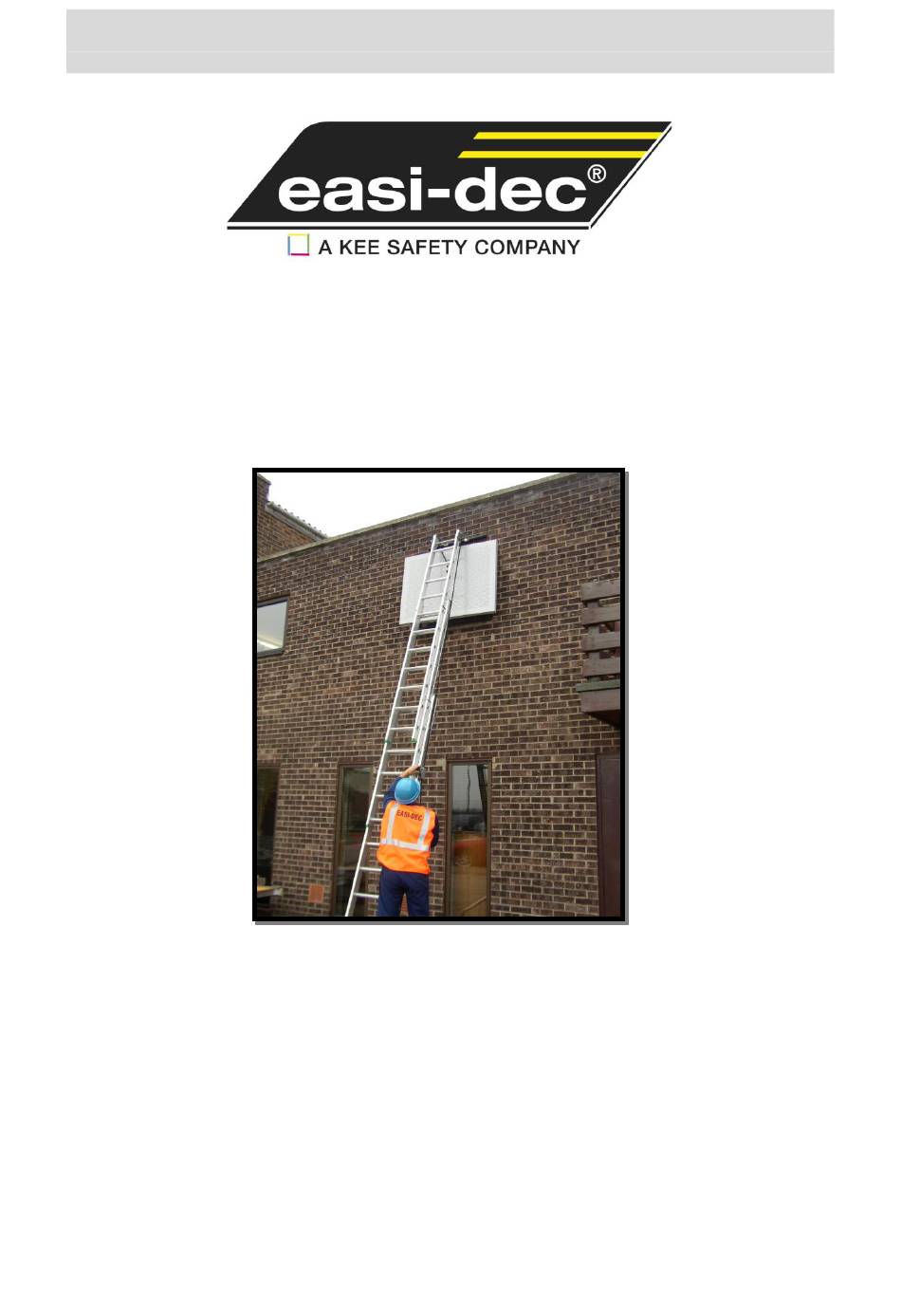

Panel Lifter.

Assembly Instructions

PL010

Issue 01

Table of Contents

Need help?

Do you have a question about the Easi-Dec and is the answer not in the manual?

Page 1 Assembly Instructions Easi-Dec Access Systems Ltd., Merlin House, Blaydon Road, Sandy SG19 1RZ Tel: +44 ( 0 ) 1767 691812 Fax: +44 ( 0 ) 1767 691802 E-Mail: info@easi-dec.com Internet: www.easi-dec.com Copyright © 2012 Kee Safety Ltd. All rights reserved.
Page 2 All component parts detailed in the operating instructions must be used in the assembly of the system. Should a piece be missing or appear defective do not continue to assemble and contact Easi-Dec Immediately. Step1...
Page 3 PL010 Issue 01 Step 7 Step 8 Lock the clutch before attempting to lift the screen Pull the rope down vertically whilst standing away from the wall. The clutch will prevent the screen descending. Step 9 Step 10 Raise the screen to sill level. Ascend the ladder and push the screen over the window to allow a second person inside the building to secure the wire ties.
Page 4 PL010 Issue 01 STORAGE To close the Panel Lifter for storage you must first fold back the bottom stabilisers. Ensure they are positioned against the lower stop to allow the ladder to be fully closed.Lower the ladder sections until fully closed.Pull excess rope through the clutch and lock the clutch leaving the clip at the top of the ladder, this will help to keep the rope free of tangle during storage.Coil up the excess rope and store on the ladder stile in the strap provided.
