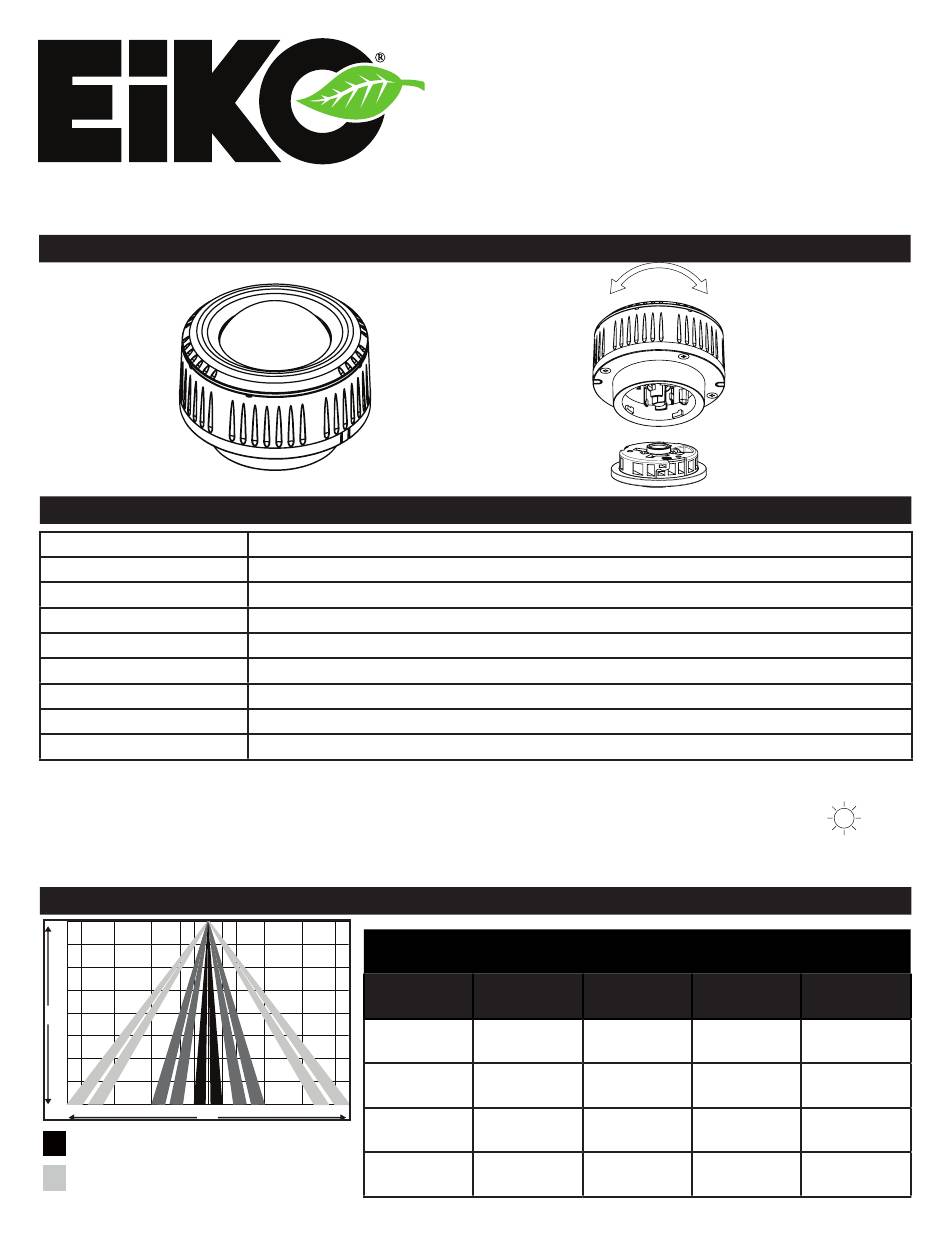

INSTALLATION INSTRUCTIONS
Z10 Sensors
Z10 PIR MOTION SENSOR WITH BI-LEVEL DIMMING + PHOTOSENSOR
SPECIFICATIONS:
POWER SUPPLY
DIM CONTROL OUTPUT
REMOTE RANGE
DETECTION RADIUS
MOUNTING HEIGHT
TIME SETTING
LIGHT-CONTROL
TEMPERATURE
IP RATING
• NOTE: WARM UP TIME IS 40 SECONDS. AFTER THE SENSOR CONNECTS INPUT POWER FIRST TIME, THE LIGHT
WILL KEEP ON 40 SECONDS, THEN GO TO DIMMING TO WORK NORMALLY.
• NOTE: FACTORY DEFAULT SETTING: 100% SENSITIVITY, HOLD ON TIME: 5 MIN, DAYLIGHT SENSOR IS
DIMMING LEVEL: 30%, DIMMING TIME: 60 MIN.
• NOTE: ANY SETTING CHANGED BY THE REMOTE CONTROL WIILL BE SIGNALED BY THE LED LIGHT THAT SENSOR
IS CONNECTED TO WILL FLASH ON/OFF.
SENSOR COVERAGE:
H
D
MINOR MOTION
MAJOR MOTION
EiKO Global | 18000 W. 105th St, Olathe, KS 66061 | (P) 1-800-852-2217
EiKO Canada | 81 King St, Barrie, Ontario L4N 6B5 | (P) 1-705-721-5189
12V-24V DC, >30mA
0-10V, MAX. 25mA SINKING CURRENT
50ft (15m) INDOOR, NO BACKLIGHT
20%/50%/75%/100% | 3.3 to 26.3ft (1 to 8m)
12m (40ft)
10S/1MIN/5MIN/10MIN/15MIN/20MIN/30MIN/60MIN
24H/10LUX/30LUX/50LUX | 24H/0.93fc/2.8fc/4.6fc
-4°F to 140°F (-20°C- to 60°C)
IP65
Height
H (ft)
40
30
20
10
LOCK
Diameter Range (D)
Sensitivity Sensitivity
100% (ft) 75% (ft)
40 20
50 40
40 40
40 40
SEN5A/PIR/Z10
SEN5A/M/Z10
SEN5A/PC/Z10
SEN5A/CT
UNLOCK
,
Sensitivity Sensitivity
50% (ft) 25% (ft)
0 0
5 0
20 10
40 20
