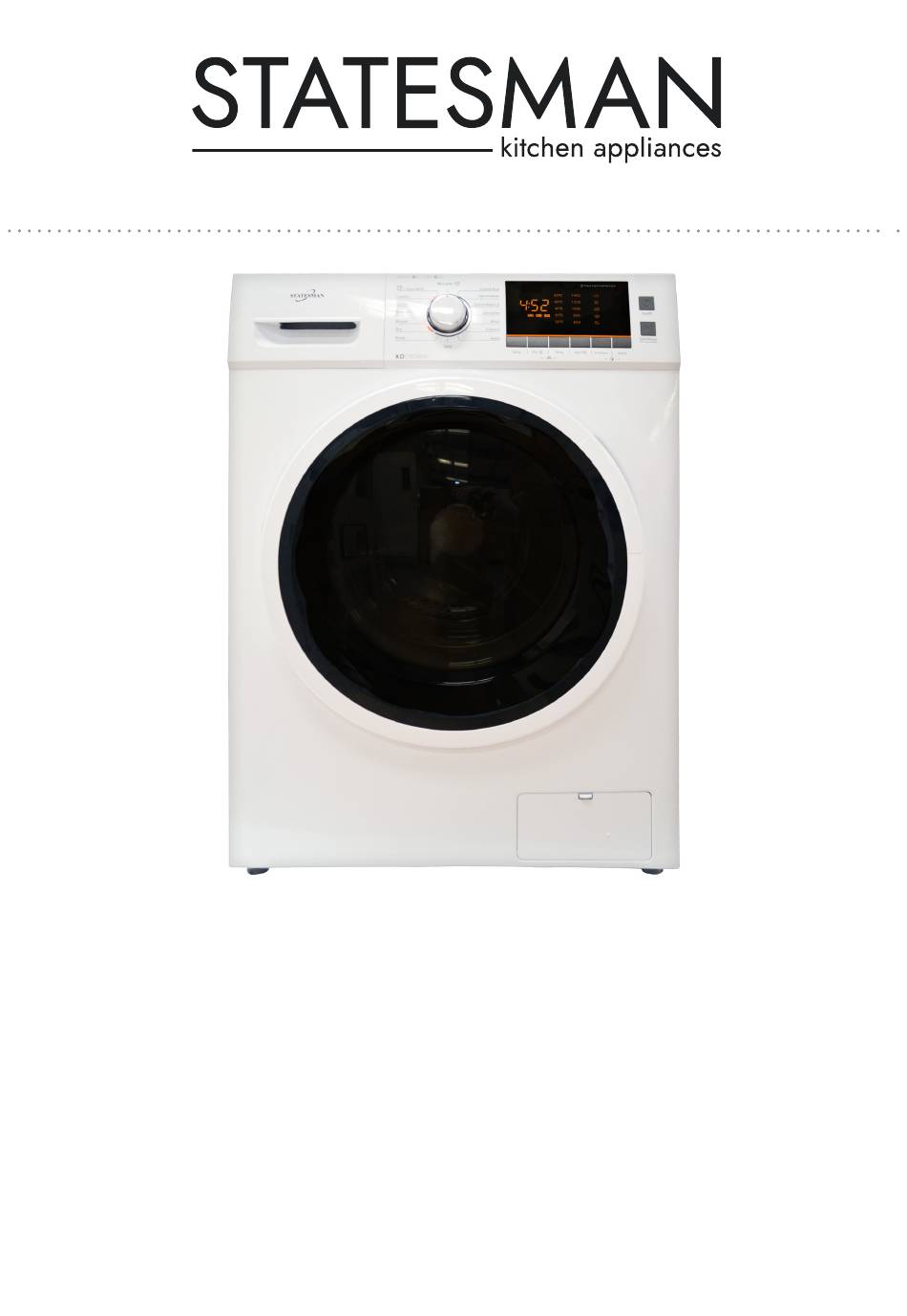

- Page 1 XD0806WE 8 KG / 6 KG FREESTANDING WASHER DRYER Instruction Manual Serial number: Please read these instructions carefully before use and retain for future reference. Before switching on your appliance – Always check for any damage that may have been caused in transit.
-
Page 2: Table Of Contents
CONTENTS Detergent Dispenser ........12 Control Panel ..........13 Important Safety Instructions ....2-4 Functions ..........14 - 16 Product Information Sheet (EN60436) ..5 Programs ..........17 - 18 Appliance Overview ........6 Cleaning & Maintenance ....19 - 21 Installation .......... - Page 3 • Remove all packages and transport bolts before using the appliance. Otherwise, serious damage may be caused. • Do not wash or dry articles that have been cleaned in, washed in, soaked in, or dabbed with combustible or explosive substances (such as wax, oil, paint, gasoline, degreasers, dry-cleaning solvents, kerosene, etc.) This may result in fire or explosion.
- Page 4 • Do not dry unwashed items in the appliance. • Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the appliance. •...
-
Page 5: Product Information Sheet (En60436)
PRODUCT INFORMATION SHEET (EN60436) Supplier’s name or trade mark: Supplier’s address ( ): XD0806WE Model Identifier General product parameters: Parameter Value Parameter Value Rated Height capacity ( Rated capacity (kg) Dimensions in cm Rated Width washing Depth capacity ( 60.0... -
Page 6: Appliance Overview
APPLIANCE OVERVIEW Top Cover Water Supply Hose Control Panel Power Supply Cord Detergent Dispenser Drum Door Service Filter Drain Hose Accessories Transport Hole Supply Hose Cold Supply Hose Hot Drain Hose Owner’s Manual Plug Water Water (Optional) Support (Optional) NOTE: The product line chart is for reference only, please refer to real product as standard. -
Page 7: Installation
INSTALLATION Installation Area WARNING! Stability is important to prevent the product from moving! Make sure that the product isn’t standing on the power cord. Before installing the machine, ensure it is in the following location: 1. Rigid, dry, and level surface 2. -
Page 8: Leveling The Washer Dryer
Leveling The Washer Dryer WARNING! The lock nuts on all four feet must be screwed tightly against the housing. 1. Check if the legs are closely attached to the cabinet. If not, please turn them to their original positions by tightening the nuts. 2. -
Page 9: Drain Hose
Connect the other end of the inlet pipe to the inlet valve at the backside of product and fasten the pipe tightly clockwise. Water Inlet Valve Water Supply Hose Drain Hose WARNING! Do not kink or protract the drain hose. Position drain hose properly, otherwise damage might result from water leakage. -
Page 10: Operating Instructions
OPERATING INSTRUCTIONS CAUTION! Before washing, please make sure the appliance is installed properly. Before washing for the first time, the washer dryer should be run on any program for a full cycle without any clothes in. Calibration It’s recommended to calibrate the washer dryer: 1. -
Page 11: After Washing
3. After Washing A sound will alert the end of the cycle or “End” on display. Before Each Wash • The working condition of the washer dryer should be (0-40)°C. If used under 0°C, the inlet valve and draining system may be damaged. If the machine is stored under conditions of 0°C or less, then it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose are not frozen before use. -
Page 12: Detergent Dispenser
Detergent Dispenser Pre Wash Detergent Main Wash Detergent Softener CAUTION! Detergent only need to be added in case “I” after selecting the pre-wash function. Pull out the dispenser Program Program 1 Hour W/D Rinse & Spin Cotton ECO 40-60 Intensive Synthetic Jeans Wash and Dry... -
Page 13: Control Panel
Control Panel 1. On/Off 2. Start/Pause Product is switched On/Off. Press the button to start or pause the washing cycle. 3. Option 4. Programs This allows you to select an additional function Available according to the laundry type. and will light up when selected. 5. -
Page 14: Functions
Functions Delay Set the Delay function: 1. Select a program 2. Press the Delay button to choose the time (the delaying time is 0-24 H.); 3. Press [Start/Pause] to commence the delay operation Choose the Set time Start program Cancel the Delay function: Press the [Delay] button until the display shows 0H. - Page 15 Reload This function can be carried out whilst the machine is running a cycle. When the drum is still rolling and there is a large amount of water with high temperature in the drum the state is unsafe and the door cannot be opened forcefully. Press [Start/Pause] for 3 sec. to reload, and start adding clothes to the drum.
- Page 16 Confirm Selection Confirm the selection of the Pre Wash, Extra Rinse, Speed Wash, Extra Rinse or Anti- crease function. Spin Speed Press the button to change the spin speed. 1400: 0-600-800-1000-1200-1400 Program Default Spin Speed (rpm) Program Default Spin Speed (rpm) 1400 1400 1 Hour W/D...
-
Page 17: Programs
Programs Programs are available according to the laundry type. Program Description 1Hr W/D For small synthetic clothes or shirts, load limitation is 1 kg (about 4 shirts). Cotton Hard-wearing textiles, heat-resistant textiles made of cotton or linen. Mixed load consisting of textiles made of cotton and synthetics. Wash synthetic articles, for example: shirts, coats, blending. - Page 18 Washing Programs Table Program Load(Kg) Temp °C Default Time Default 1.0/1.0 Cold 0:58 1 Hour W/D 8.0/6.0 3:39 Cotton 8.0/6.0 1:20 4.0/4.0 3:17 Synthetic 8.0/6.0 5:04 Wash and Dry -/6.0 4:14 Dry Only Air Wash 0:30 Spin Only 0:12 Rinse & Spin 0:20 ECO 40-60 3:35...
-
Page 19: Cleaning & Maintenance
CLEANING & MAINTENANCE WARNING! Before maintenance is carried out, please unplug the machine and close the tap. Cleaning The Cabinet Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted, non-abrasive neutral detergents when necessary. -
Page 20: Cleaning The Detergent Dispenser
Clean The Detergent Dispenser 1. Press down on the arrow on softener cover inside the dispenser drawer. 2. Lift the clip up and take out softener cover and wash all grooves with water. 3. Restore the softener cover and push the drawer into position. Pull out the Clean the dispenser Clean inside the recess... -
Page 21: Cleaning The Drain Pump Filter
Cleaning The Drain Pump Filter WARNING! Be careful of the hot water! Allow detergent solution to cool down. Unplug the machine to avoid electrical shock before washing. Drain pump filter can filter the yarns and small foreign matters from the appliance. Clean the filter periodically to ensure the normal operation of washer dryer. -
Page 22: Disposal Information
DISPOSAL The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in normal unsorted municipal waste. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. -
Page 23: Troubleshooting
TROUBLESHOOTING If you are having problems with your appliance, please use our troubleshooting guide below. If you are unable to resolve the issue using this guide please ring our Customer Service Department on 0844 848 5861. Please have the model code and purchase information available. Problem Cause Possible Solution... - Page 24 Ipswich, IP3 9RR 0844 848 5861 Disclaimer: Statesman operate a policy of continual improvement and development. We therefore reserve the right to change/alter the specification and appearance of our appliances without prior notice. All diagrams and images shown in this manual are for illustration purposes only.
