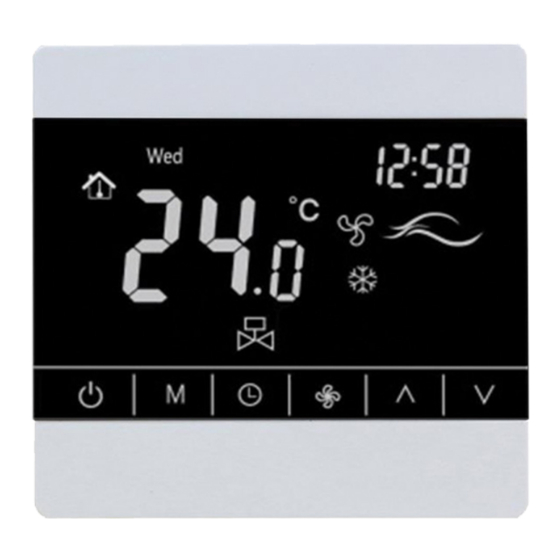

Summary of Contents for AirTechnic TCA2
- Page 1 ΘΕΡΜΟΣΤΑΤΗΣ TCA2 ModBus Fan Coil Thermostat V. 4...
- Page 2 ), Mode selection (M), Fan Speed selection( Clock/Timer( ) and two adjustment buttons( ＆ ) ￭ Installation Install the TCA2 where the occupant can read the display and adjust the set point easily. Situate the thermostat where the temperature is representative of the general room conditions. Avoid installing near cold or warm air drafts, radiant heat, on an outside wall, or in direct sunlight. ￭ Mounting Mount the TCA2 Series thermostat to a 75x75x5mm standard electrical wall box. (See Figure 3)
- Page 3 • Fault Alarm When the sensor is in fault, thermostat will close the fan and valve, and display,“E1”,“E2” E1: Sensor short cut alarm E2: Sensor circuit breaker alarm Display “HI”,temperature＞55℃；display “LO”,temperature＜0℃ IMPORTANT: • Use this TCA2 Series Line Voltage Fan Coil Thermostat only as an operating control. Where failure of malfunction of the TCA2 Series Thermostat could lead to personal injury or property damage to the controlled equipment or other property, additional precautions must be designed into the system. Incorporate and maintain other devices such as supervisory or alarm systems or safety or limit controls intended to warn of, or protect against, failure or malfunction of the TCA2 Series Thermostat. • Do not install this thermostat in condensing, wet , or damp environments. Moisture may cause damage to the thermostat. • Do not remove PCB form the enclosure cover. Removing the PCB from the enclosure cover voids the product warranty. •Make all wiring connections in accordance with local, nation , and regional regulations, Do not exceed the TCA2 Series thermostat's electrical ratings. WARNING: •Disconnect power supply before making electrical connections. Contact with components carrying hazardous voltages can cause electrical shock and may result in severe personal injury or death. • Risk of Electrical Shock Ground the thermostat according to local, national, and regional regulations. Failure to ground the thermostat may result in electrical shock and severe personal injury and death. • Risk of Electrical Shock and Property Damage Insulate and secure each unused wire lead before applying power to the thermostat. Failure to insulate and secure each unused wire lead may result property damage, electrical shock, and severe personal injury or death.
- Page 4 ΕΡΓΟΣΤΑΣΙΟ - ΘΕΣΣΑΛΟΝΙΚΗ ΕΔΡΑ - ΑΘΗΝΑ ΕΡΓΟΣΤΑΣΙΟ - ΘΗΒΑ Τέρμα προέκτασης Μαιάνδρου, Μιχαήλ Καραολή 19, χλμ. Θήβας - Χαλκίδας, ο τ.κ.: 57013, Ωραιόκαστρο Θεσ/νίκη τ.κ.: 14343, Ν. Χαλκηδόνα Αθήνα τ.κ.: 32200, Θήβα 2311 - 824000 211-7055500 22620 - 89006 thessaloniki@airtechnic.gr sales@airtechnic.gr factory@airtechnic.gr...
