Twin Eagles TE1BQ54 Quick Start Manual

GAS CONVERSION KIT FROM NG TO LP, P/N: CKLP-TE1BQ54
FOR MODELS: TWIN EAGLES EAGLE ONE GRILL
1. All gas connections/conversions should be made by a qualified technician and
in accordance with local codes and ordinances.
2. Before conducting a conversion to a gas appliance, verify that the main gas is
shut off and disconnected from the appliance.
3. Ensure that you have the LP Gas Conversion Kit as follows:
A. P/N 15110-53, Orifice #53, LP, Grill Burner
B. P/N 15108-55, Orifice #55, Rotis/ Small IR, for TE1BQ54
C. P/N 15302, LP Regulator with 24" Hose
D. P/N 18351, Label, Conversion Gas
4. Replace burner valve orifices.
A. Grill Burner:
a. Remove cooking grates
b. Remove briquette trays
c. Remove grill burners
d. Remove grill burner orifices, #41 drill size
e. Replace grill burner orifices with #53 drill size
f. Adjust the burner shutter for the appropriate gas type. (An "L" and an "N"
are stamped on the air shutter to indicate the appropriate gas type.)
g. Install back the burners, briquette trays & cooking grates. WARNING! IT IS
CRITICAL THAT THE GAS BURNERS ARE PROPERLY INSTALLED WITH THEIR
ORIFICES INSIDE THE BURNERS AIR SHUTTER. If not properly installed, gas
may leak outside of the burner that could lead to fire, potential damage to
your grill and bodily injury.
B. Infrared Rotisserie Burner
a. Remove rear hood access cover to expose infrared burner gas orifice
b. Remove rotis burner orifice, as follows:
i. #48 from the 54" grill, TE1BQ54
c. Replace rotis burner orifice with:
i. #55 to the 54" grill, TE1BQ54
d. Replace rear hood access cover.

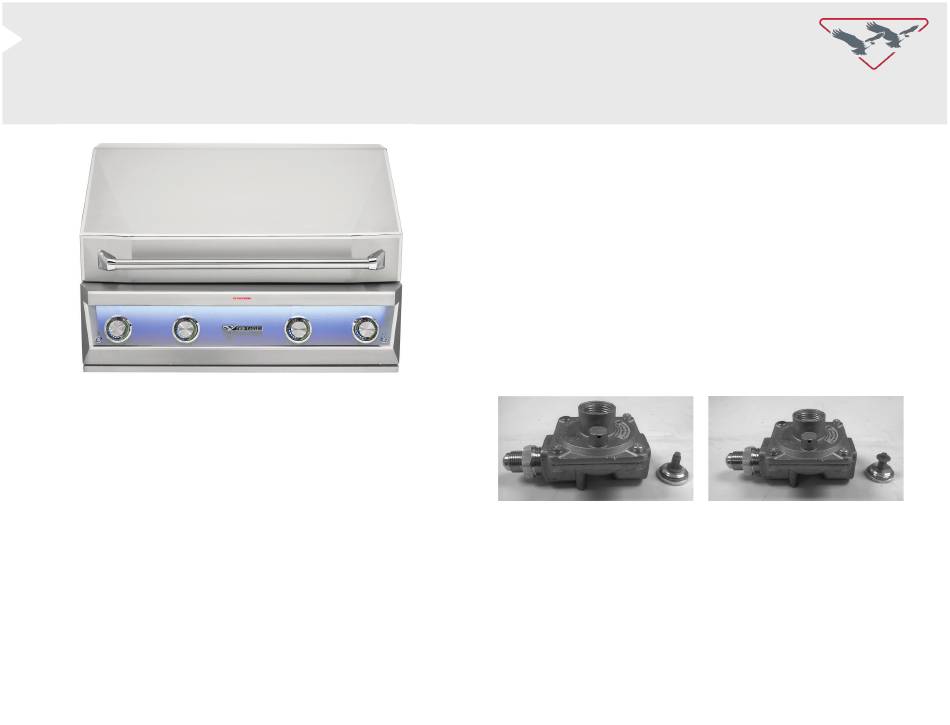

5. Convert the NG regulator to LP and install the factory supplied LP regulator.
A. Do not disconnect regulator from grill. Convert regulator to LP by unscrewing
the hex cap to expose the plastic plunger.
B. Flip the plunger so the disc is away from the cap. Screw the cap back on, the
regulator is now converted for LP gas.
(4 pcs.)
(2 pc.)
(1 pc.)
SET TO NG
(1 pc.)
C. Install the factory-supplied regulator and hose assembly. Connect the 3/8"
flare end of the hose to the coupling on the regulator using a 3/4" open
wrench. Do not apply pipe sealant to the 3/8" flare connection. Connect the
regulator to the LP cylinder hand tighten it, do no use a wrench.
D. Check for gas leaks using soapy water solution.
6. NEVER USE THE GRILL WITHOUT FIRST LEAK TESTING THE GAS CONNECTION.
A. Prepare a leak testing solution of sudsy water by mixing in a spray bottle with
half liquid soap and half water.
B. Confirm that all control knobs are in the "OFF" position.
C. Turn the main gas valve supply "ON".
D. Apply leak testing solution by spraying on the pipe joint, fittings, and hose.
E. A gas leak is detected if;
SET TO LP
