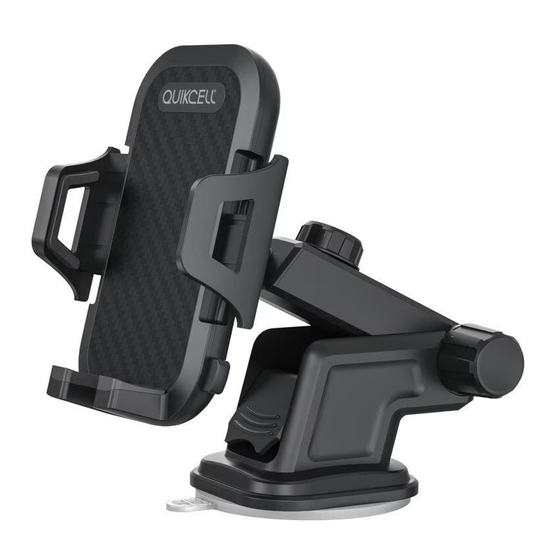

- Page 1 DRIVE DOCK Universal 3-in-1 Car Mount Soporte universal para auto 3 en 1 QUICK START GUIDE Guía de Inicio Rápido...
-
Page 2: Specifications
SPECIFICATIONS Maximum weight limit: 1 kg Límite de peso máximo: 1 kg Extendable Arm Maximum Length: 4.5 in. Longitud máxima del brazo extensible: 4.5 pulg. Adjustable Arm Maximum Width: 3.7 in. Ancho máximo del brazo ajustable: 3.7 pulg. -
Page 3: What's Inside
WHAT’S INSIDE Vent Clip Clip de ventilación Dash/Window Suction Mount Soporte de succión para tablero/ventana Phone Base Base del teléfono... - Page 4 DRIVEDOCK BUTTONS & CONTROLS...
- Page 5 1. Quick Release Button 1. Botón de liberación rápida 2. Adjustable Grips 2. Mangos ajustables 3. Extendable Arm 3. Brazo extensible 4. Adjustment Knobs 4. Perillas de ajuste 5. Suction Lock 5. Bloqueo de succión...
-
Page 6: Mounting Positions
MOUNTING POSITIONS 1. Vent 1. Ventilación 2. Dash 2. Control de nivel... - Page 7 3. Window 3. Ventana FLIP OVER...
- Page 8 PLACE IN BASE Press your quick release button to extend your adjustable grips out fully. Then place your device in your base and squeeze grips together to tighten around your device to hold it securely in place. Presiona el botón de liberación rápida para extender completamente los mangos ajustables.
- Page 9 3 PERFECT MOUNTING OPTIONS With three convenient ways to mount, you can pick the one that works best for you. Con tres formas convenientes de montar, puedes elegir la que mejor se adapte a sus necesidades. Vent: Screw your phone base into your vent clip.
- Page 10 Dash/Window: Screw your phone base into your dash/window mount using the adjustment knobs. Make sure your suction lock is pulled up. Remove plastic lm from suction cup base and wipe down the area you will be mounting your DriveDock. Place the mount where you’d like it to sit on your dash or window.
- Page 11 ROTATE. EXTEND. FLIP. Use the 360° rotation to adjust your DriveDock’s angle. You can use this to turn your device to portrait, vertical, or anywhere in between using your adjustment knobs. Utiliza la rotación de 360° para ajustar el ángulo de tu DriveDock.
- Page 12 Extend the arm of your mount to reach up to 4.5 inches tall for convenience when needed. Extiende el brazo de tu soporte para alcanzar hasta 4.5 pulgadas de alto para mayor comodidad cuando sea necesario.
- Page 13 Hold various devices using your device grips that extend up to 3.7 inches wide. Sujeta varios dispositivos con los mangos de tu dispositivo que se extienden hasta 3.7 pulgadas de ancho.
- Page 14 Para obtener información sobre la garantía, visite quikcell.com/warranty © 2021 All rights reserved. Alpha Comm and Quikcell are registered trademarks of Alpha Comm Enterprises. All other trademarks are the property of their respective owners. Designed by Alpha Comm Enterprises at 1500 Lakes Parkway; Lawrenceville, GA 30043.
