Summary of Contents for ShoreStation CS24-108-7A
-

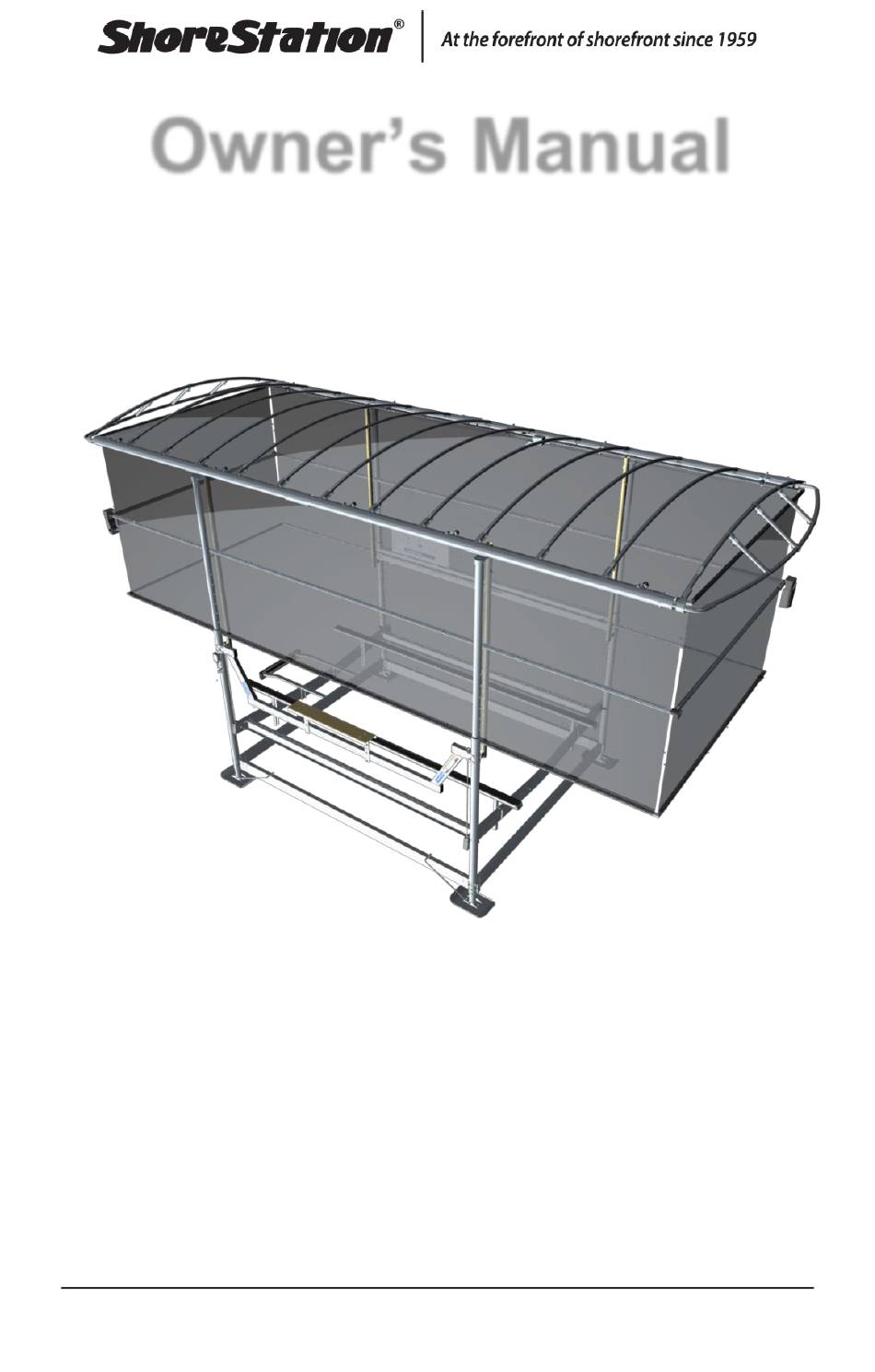

Page 1: Owner's Manual
Owner’s Manual HORE CREEN OWER URTAIN Patent Pending Models: CS24-108-7A, CS24-120-7A, CS26-120-7A, CS26-132-7A, CS28-120-7A, CS28-132-7A, CS30-120-7A, CS30-132-7A, CS34-132-7A, 36-144-7A, CS40-144-7A Document Number: 0004566 Rev: 3 Page 1... - Page 2 ShoreStation boat lift. Thank you for choosing ShoreStation. Please study this manual carefully BEFORE operating the system and keep it in a safe place for future reference. If you have questions or concerns about the operation and/or service of your lift, please contact us at (800) 859-3028 or email shorestation@midwestindustries.com.
-
Page 3: Table Of Contents
Contents Owner’s Manual ............... 1 Safety Definitions..............4 Safety Instructions ..............5 Overview and Terminology ............6 Curtain Operation ..............8 Wired Dock Switch Operation ..........8 Wireless Operation ............... 9 ShoreScreen Maintenance ............11 Before and after every operation ......... 11 Every Season .............. -
Page 4: Safety Definitions
ON LABELS INCLUDED WITH THE LIFT. FAILURE TO DO SO CAN LEAD TO IMPROPER OPERATION RESULTING IN SERIOUS PERSONAL INJURY AND/OR PRODUCT DAMAGE. IF YOU HAVE FURTHER QUESTIONS AFTER REVIEWING THIS INFORMATION, CONTACT A SHORESTATION REPRESENTATIVE AT (800) 859-3028. Document Number: 0004566 Rev: 2 Page 4... -
Page 5: Safety Instructions
Do not operate the curtain in high wind. The curtain system should only be used with ShoreStation aluminum canopy frames. Never install or work on the equipment without first verifying that the... -
Page 6: Overview And Terminology

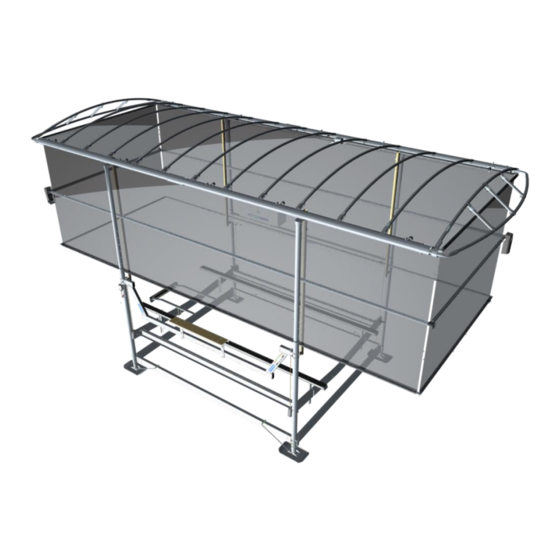

Overview and Terminology The ShoreScreen Power Curtain system has these key components: the curtain, roll bar, top & bottom frames, Idler corner, curtain motors, controller, and curtain guides (Figure 1). Curtain ShoreScreen Guides Controller Frame Curtain Motor (2) Bottom Frame Roll Bar (4) Idler Corner (2) - Page 7 ShoreStation recommends post-style load guides between the boat and curtain to protect the boat from curtain movement. Contact your ShoreStation dealer to determine what post load guide is correct for your lift. When operating the system, observe the curtain and surroundings to ensure the system does not snag on lift or boat components.
-
Page 8: Curtain Operation
Curtain Operation There are two methods of operating the curtain: wired dock switch (Figure 2) and wireless remote (Figure 3). Wired Dock Switch Operation Toggle Switch (UP/DOWN) Lockout Key Figure 2 - Wired Dock Switch Step 1 – Unlock the curtain The lockout key disables the control system (wired and wireless). -
Page 9: Wireless Operation
When you are finished using the curtain, disable it by turning the lockout key counter clockwise 90 degrees (vertical) and remove the key. Wireless Operation Figure 3 – Wireless Remote Control WARNING WARNING NEVER LOWER THE CURTAIN OPERATE THE CURTAIN ONLY WHEN YOU HAVE WITH PEOPLE IN LIFT. - Page 10 Step 1 – Unlock the key fob Lock mode is indicated by all 5 Mode Indicator lights flashing when a button is pressed on the key fob. The key fobs will automatically go into ‘lock mode’ after 3 minutes. In ‘lock mode’ the transmitter will not react until it is unlocked.
-
Page 11: Shorescreen Maintenance
ShoreScreen Maintenance The ShoreScreen Power Curtain is a low maintenance system; however, all mechanical systems require frequent inspection and proper maintenance procedures to ensure proper, safe performance. The following procedures must be performed: Before and after every operation Inspect the curtain for debris and damage. Remove leaves, stick, and other debris before attempting to operate the curtain. -
Page 12: Cleaning Procedures
Cleaning Procedures The curtain can be cleaned with mild soap and water. Avoid strong cleaners and disinfectants, especially those containing quaternary ammonium compounds and phenols. Rinse thoroughly with clean water after cleaning. Winter Storage In most locations, the curtain system can be stored in the rolled position in the off-season. -
Page 13: Technical Specifications
Secure each individual side to the canopy frame using a load binder or rope. Technical Specifications Part information and specifications are available on ShoreStation’s PartSmart system. To access this system via the internet, go to: http://shorestation.com/parts/PartSmart.htm...
