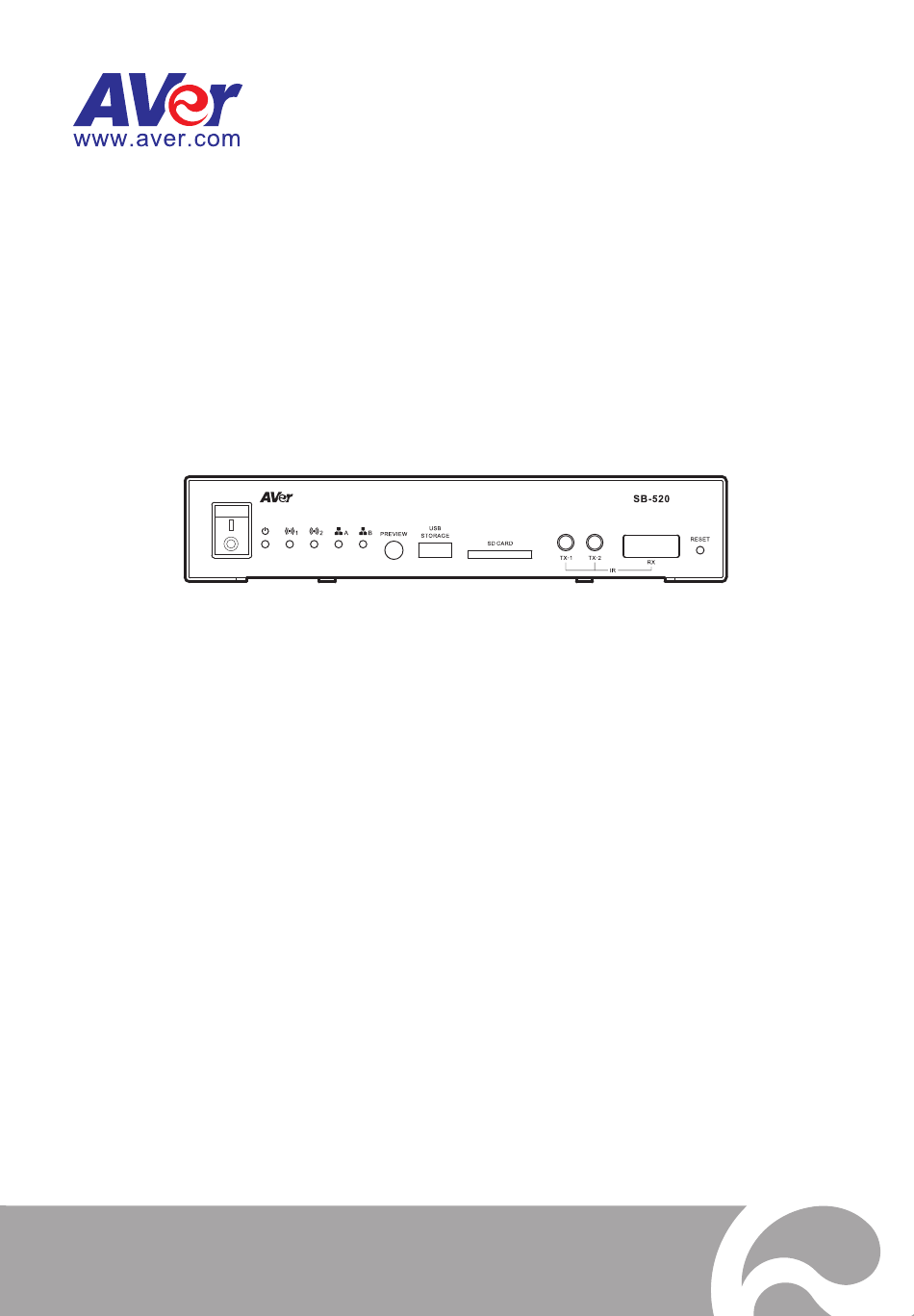

- Page 1 SB-520 Streaming Box Quick Guide | 操作手冊 | 操作手册...
- Page 2 Federal Communications Commission Statement Class A For a Class A digital device or peripheral, the instructions furnished to the user shall include the following or similar statement, placed in a prominent location in the text of the manual: NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
- Page 3 警告 此为A级产品。在生活环境中，该产品可能会造成无线电干扰。在这种情况下，可能需要用户 对干扰采取切实可行的措施。 300ASE582ECF Model: SB-520 Streaming Box/ 串流編碼器 / 直播编码器 Made in Taiwan/ 台灣製造 / 台湾製造...
- Page 4 Copyright and Trademark Information © 2021 by AVer Information, Inc. All rights reserved. No part of this publication, in whole or in part, may be reproduced, transmitted, transcribed, altered or translated into any language in any form by any means without the written permission of AVer Information, Inc.
- Page 5 16. Unplug this apparatus during lightning or when unused for prolonged periods of time. 17. Do not modify or disassemble the apparatus in any way. 18. Refer all servicing to AVer Customer Service. 19. Do not dispose the apparatus as general household waste. Dispose in accordance with local environmental laws.
- Page 6 重要安全说明 1. 仔细阅读这些说明。 2. 妥善保存这些说明。 3. 遵守所有的指示。 4. 注意所有的警告。 5. 请勿将本产品安装于不平稳的表面。 6. 请勿在潮湿或靠近水的地方使用本产品。 7. 清洁前请拔除电源。仅使用干布清洁。 8. 请于通风的环境使用本产品。请勿堵住通风口。 9. 请于规格温度范围 32–122°F (0–50°C) 使用本产品。 10. 请使用额定电压范围内的电源。 11. 请勿放置重物于本产品上。 12. 请勿安装于热源附近如暖器或火炉旁。 13. 请勿破坏极性或接地插头的安全防护设计。 14. 请保护电源线，勿使其被踩踏或碾压，特别是与插头或变压器的连接处。 15. 仅使用制造商指定的配件及零件。 16. 打雷或长时间不使用时请拔除电源。 17. 请勿以任何方式改造或拆解本产品。 18. 如需维修请洽本公司客服人员。 19.
-
Page 7: Package Contents
Package Contents Check that the following items are included in your package. Package contents may vary depending on your country of purchase. SB-520 Screw-On Power Adapter & Cable Quick Guide Remote Control Base Rack Mount Long Rack Mount Short Rack Mount x 2... - Page 8 Overview These are the ports and connectors of SB-520. Front View Power Switch USB Drive Port Power LED SD Card Slot Stream Status LED 1 & 2 IR Port 1 & 2 LAN Status LED A & B IR Sensor...
-
Page 9: Led Indications
LED Indications When the unit is powered on, the blue LED indicator lights up and starts to flash. SB-520 is ready when the blue indicator goes from flashing to solid blue. Please refer to the following table to check the status of LED indicators. -
Page 10: Rack Mounting Procedures
Rack Mounting Procedures SB-520 can be easily fitted into various mounts or brackets using the included rackmount kit. - Page 11 DIN Rail Mounting Procedures Note: DIN clips and rail are not included. VESA Mounting Procedures Note: VESA bracket is not included.
-
Page 12: Remote Control
Video Input 2 -> LINE IN) Snapshot Master Volume + / - (Long Press Supported) Online Resources & Support To learn more about AVer products and download the latest user manual, please visit AVer websites below. Download: https://presentation.aver.com/download-center/v20/08/113/891 Support: https://www.aver.com/technical-support... -
Page 13: Specifications
Specifications SB-520 Product Name HDMI 1.4b x 2, 3G-SDI x 2, Audio Embedded Video Interface 3.5mm Line-In x 2, 3.5mm Mic-in x 1, XLR x 1 Audio Interface Ethernet x 2 Connectivity Channels H.265, H.264 Video Format 1080p60 Max. Resolution... - Page 14 • 佈局預設（1. PIP，2. PBP，3. 單 A，4. 單 B） LED 燈號 • 音頻開關（循環 : 視訊輸入 1 -> 視訊輸入 2 -> LINE IN） 當設備開啟時，藍色 LED 燈亮起並開始閃 爍。當藍色 LED 燈從閃爍變為恆亮時，表 示 SB-520 已就緒。 網路資源與技術支援 以下為 SB-520 LED 狀態燈號表。 如要了解有關 AVer 產品更多信息並下載最新 的用戶手冊，請到 AVer 網站。 下載： https://tw.presentation.aver.com/ download-center/v20/08/114/893 支援： https://www.aver.com/technical-support...
- Page 15 • 布局预设（1.PIP 2.PBP 3. 单 A 4. 单 B） LED 指示灯 • 音频开关（循环 : 视讯输入 1 -> 视讯输入 2 -> LINE IN） 当设备开启时，蓝色 LED 灯亮起并开始闪 烁。当蓝色 LED 灯从闪烁变为恒亮时，表 网络资源与技术支持 示 SB-520 已就绪。 如要了解有关 AVer 产品更多信息并下载最新 以下为 SB-520 LED 状态灯号表。 的用户手册，请到 AVer 网站。 下载： https://tw.presentation.aver.com/ download-center/v20/08/114/893 支持： https://www.aver.com/technical-support...
