Allanson 2275 Series Instruction Manual

This instruction manual provides you with application information on the OMNI™ Electronic Ignitor. Allanson's
electronic ignitors are designed for intermittent duty (constant) and/or interrupted duty - providing the most reliable
ignition source for gas and oil.
Abosolute Minimum Readings:
Input Supply Voltage (V):
Input Supply Frequency (Hz):
Primary Volt - Amperes (VA)
Secondary Voltage (kV peak):
Secondary Frequency (kHz):
Secondary Short Circuit Current (mA):
Storage Temperature:
Operating Temperature:
Operating Relative Humidity (%):
Loading Air Gap (inches):
CANADA: 83 Commerce Valley Drive East, Markham, Ontario L3T 7T3 | T: 1.800.661.7251 | Fax: 416.752.6717
USA: 99 Adams Blvd., Farmingdale, New York 11735 | T: 1.631.293.3880 | Fax: 1.631.293.3470
This instruction manual provides you with application information on the OMNI™ Electronic Ignitor. Allanson's
electronic ignitors are designed for intermittent duty (constant) and/or interrupted duty - providing the most reliable
ignition source for gas and oil.
Abosolute Minimum Readings:
Input Supply Voltage (V):
Input Supply Frequency (Hz):
Primary Volt - Amperes (VA)
Secondary Voltage (kV peak):
Secondary Frequency (kHz):
Secondary Short Circuit Current (mA):
Storage Temperature:
Operating Temperature:
Operating Relative Humidity (%):
Loading Air Gap (inches):
CANADA: 83 Commerce Valley Drive East, Markham, Ontario L3T 7T3 | T: 1.800.661.7251 | Fax: 416.752.6717
USA: 99 Adams Blvd., Farmingdale, New York 11735 | T: 1.631.293.3880 | Fax: 1.631.293.3470
ELECTRONIC IGNITOR
INSTRUCTION MANUAL - TYPE 2275U / 2275-XXX
108-132
50/60
87
17.5
>20
28
-40 to +80
-30 to +40
90
1/16 to 3/16
ELECTRONIC IGNITOR
INSTRUCTION MANUAL - TYPE 2275U / 2275-XXX
108-132
50/60
87
17.5
>20
28
-40 to +80
-30 to +40
90
1/16 to 3/16

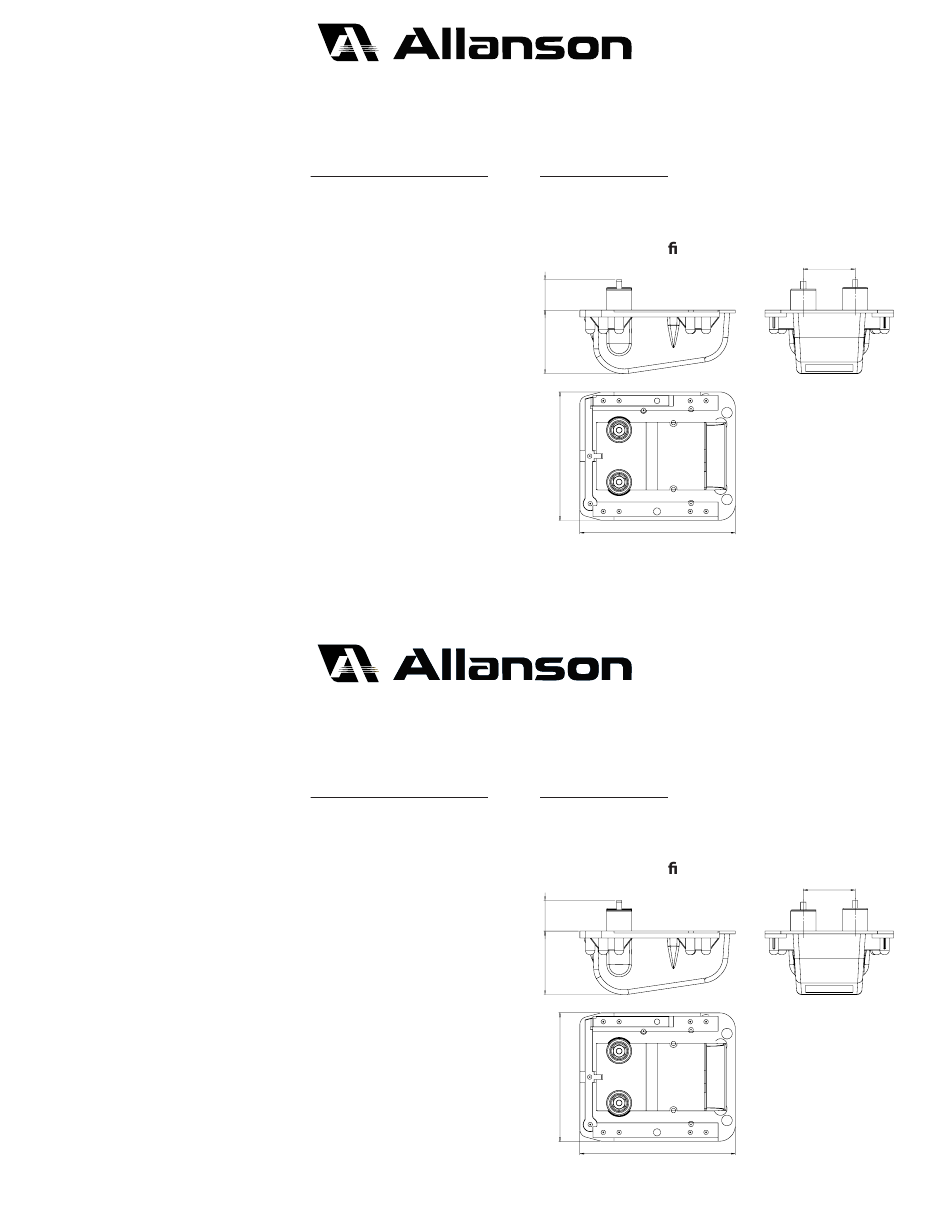

Mechanical Speci cations:
0.90"
2.01"
4.06"
4.92"
Mechanical Speci cations:
0.90"
2.01"
4.06"
4.92"
1.64"
1.64"
