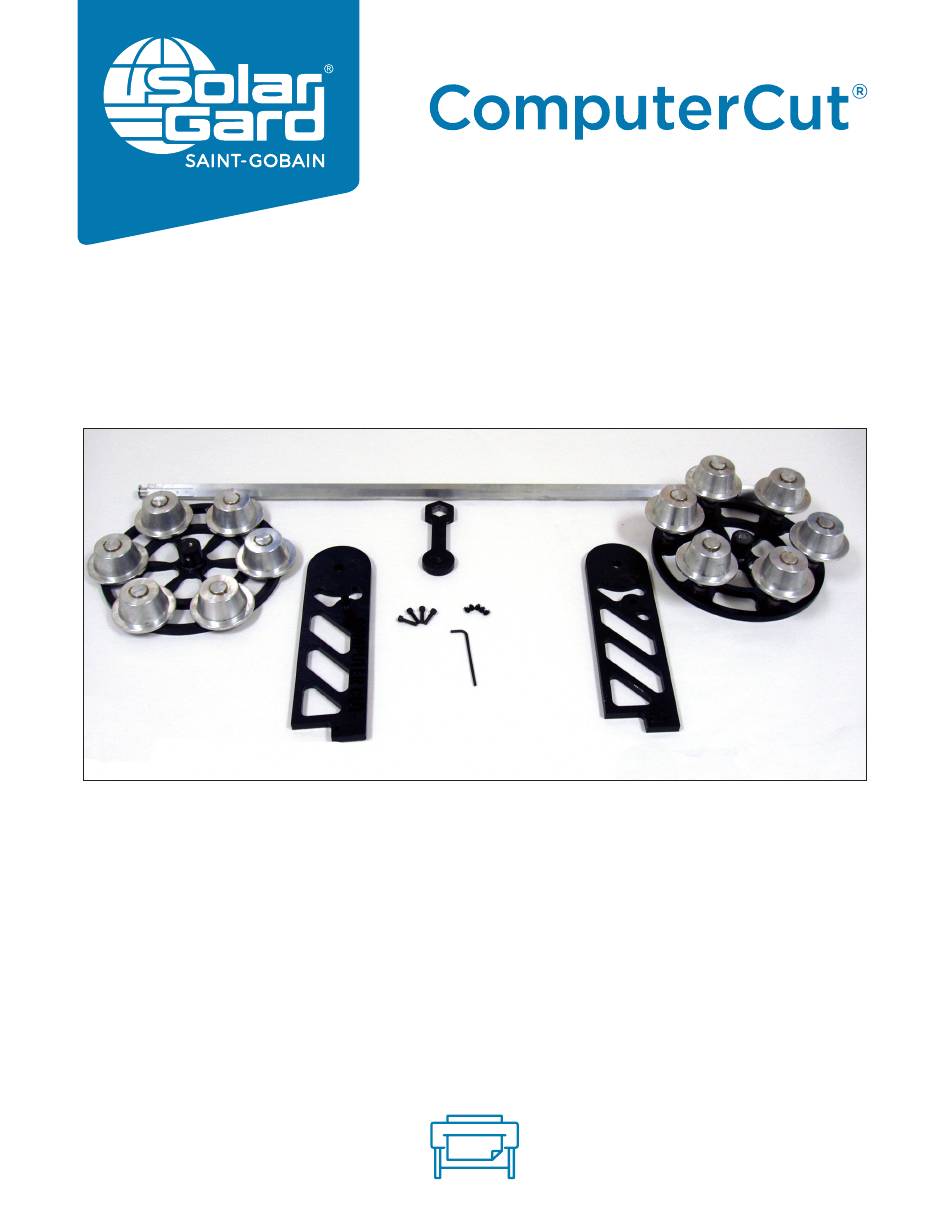

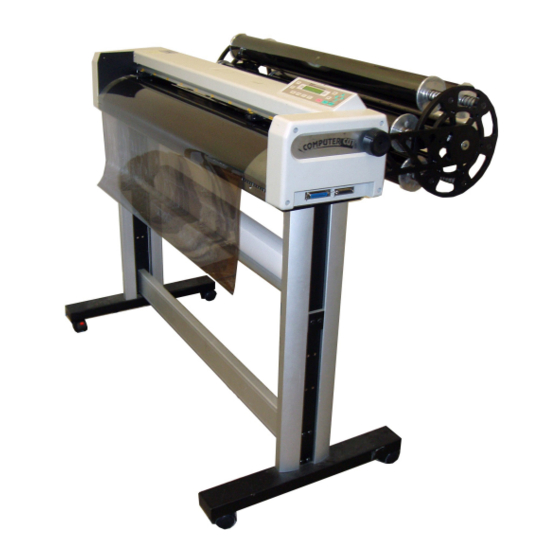

- Page 1 A S S E M B L Y A N D I N S T A L A T I O N REVOLVER FILM LOADER PARTS LIST 2 SUPPORT ARMS 5 LOCKING NUTS 6. 1 DOG BONE ARM 1 LEFT SPINDLE 1 RIGHT SPINDLE WITH SPRINGS 1 SPINDLE ROD 4 SUPPORT ARM SCREWS...
- Page 2 REVOLVER FILM LOADER ASSEMBLY AND INSTALATION ATTACH LEFT AND RIGHT SUPPORT ARMS TO THE PLOTTER WITH THE SUPPORT ARM SCREWS. PLACE LEFT SPINDLE ON SPINDLE ARM. LEFT SPINDLE IS NOT SPRING LOADED. SET LOCK NUT ON LEFT SPINDLE.
- Page 3 REVOLVER FILM LOADER ASSEMBLY AND INSTALATION ATTACH DOG BONE ARM TO SPINDLE ARM WITH THE COUNTERSINK FACING LEFT. THIS ACCESSORY IS USED FOR HOLDING ROLLS SMALLER THAN 40” IN WIDTH. IF YOU DO NOT PLAN TO USE SMALLER ROLLS, YOU CAN SKIP THIS STEP. ADD RIGHT SPINDLE WITH SPRINGS AND TIGHTEN WITH LOCKING NUTS.
- Page 4 REVOLVER FILM LOADER ASSEMBLY AND INSTALATION BOLT SPINDLE ROD TO BOTH THE LEFT AND RIGHT SUPPORT ARMS. TO USE SMALLER ROLLS, REMOVE THE APPRORIATE CORE HOLDER AND ATTACH IT TO THE DOG BONE ARM. LOAD SMALLER ROLLS ON THE MODIFIED HOLDER.
- Page 5 REVOLVER FILM LOADER ASSEMBLY AND INSTALATION LOAD ROLLS ON THE REMAINING ROLL HOLDERS. 0 7 / 2 1...
