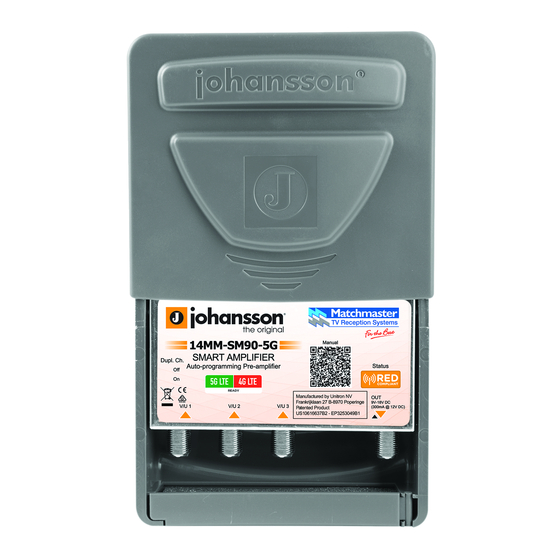

Matchmaster 14MM-SM90-5G Instruction Manual

14MM-SM90-5G INSTRUCTION MANUAL
Contents

1. Introduction

1.1. Product Description

1.2. Package Contents

2. Technical Specifications

3. Hardware Installation

Installing the smart amp
Duplicate Channel Switch Off
Duplicate Channel Switch On

LTE filtering

How autoscan works

How to force channel scan
4. Safety Instructions
5. Conditions of Warranty
1.Introduction
1.1. Product Description
• Scans all channels, amplifies the weak signals while
keeping the strong channels
• All output channels have an equal and stable output
power
• Treats even the most difficult situations with
adjacent channels
• Channels with the same frequency can be amplified in and
re-located to the LTE band (switchable)
• Fully automatic channel scan and process function upon
double power start-up.
• Fully automatic recognition of the applied country
channel plan
• SAW filters for LTE (4G or 5G) protection on all inputs
• Outdoor weatherproof mast-head housing
• DC Power over coax
• All ports ESD protected
1.2. Package Contents
• 1 Smart Amp
2. Technical Specifications
Inputs
Outputs
Frequency range
LTE Band Rejection
Output
Output Power
LTE band Re-use
Adjacent channel
isolation
Input sensitivity
Operating temperature -20 to +50
Power Supply
Power
PAGE 1 OF 1 | AU SUPPORT 1800 237 425 WWW.MATCHMASTER.COM.AU
3
4G/5G (CH51)
VHF BIII + UHF Automatic
channel plan selection
>40
1
90 dBuv
L2 = CH52-69 (694MHz-862MHz)
Switch ON-OFF
>35
40 dBuv
External power supply
12V/300mA (DC over coax)
(9VDC-18VDC)
2. Hardware Installation
Installing the Smart Amp
• Connect your Terrestrial antennas to the Smart Amp*
• Connect the Smart Amp output to the Power Supply
• Connect your TVs to the Power Supply
Important: Mount the module vertically to the mast or a wall
in a well-ventilated room and leave a minimum space of 15
cm around the product to guarantee a maximum ventilation
of the product
* The Smart Amp does not allow pass-through DC-power for
pre-amplifiers or active antennas
How autoscan works
• Plug in Power Supply
• Status LED will blink green when scanning
• Status LED solid green when autoscan ready (This can
take up to 20 seconds)
• Status LED red when error during scan. Unpower and
repower within 6 seconds to restart autoscan
• WARNING: do not turn off the power during SCAN

How to reprogram or force channel scan

Unplug power supply
• When a power outage causes missing channels on your
TV, a reset is needed
• Reset: pull out the power supply and put it back in within
6 seconds
• The status LED will blink when re-scanning
• If a power interruption lasts longer than 6 seconds, there
is no channel scan and the initial settings are kept
• Important note for installers! Make sure the end-user or
installer can easily and safely unpower and
repower device
LTE Filtering
Plug in power supply
Less
than
6 sec
