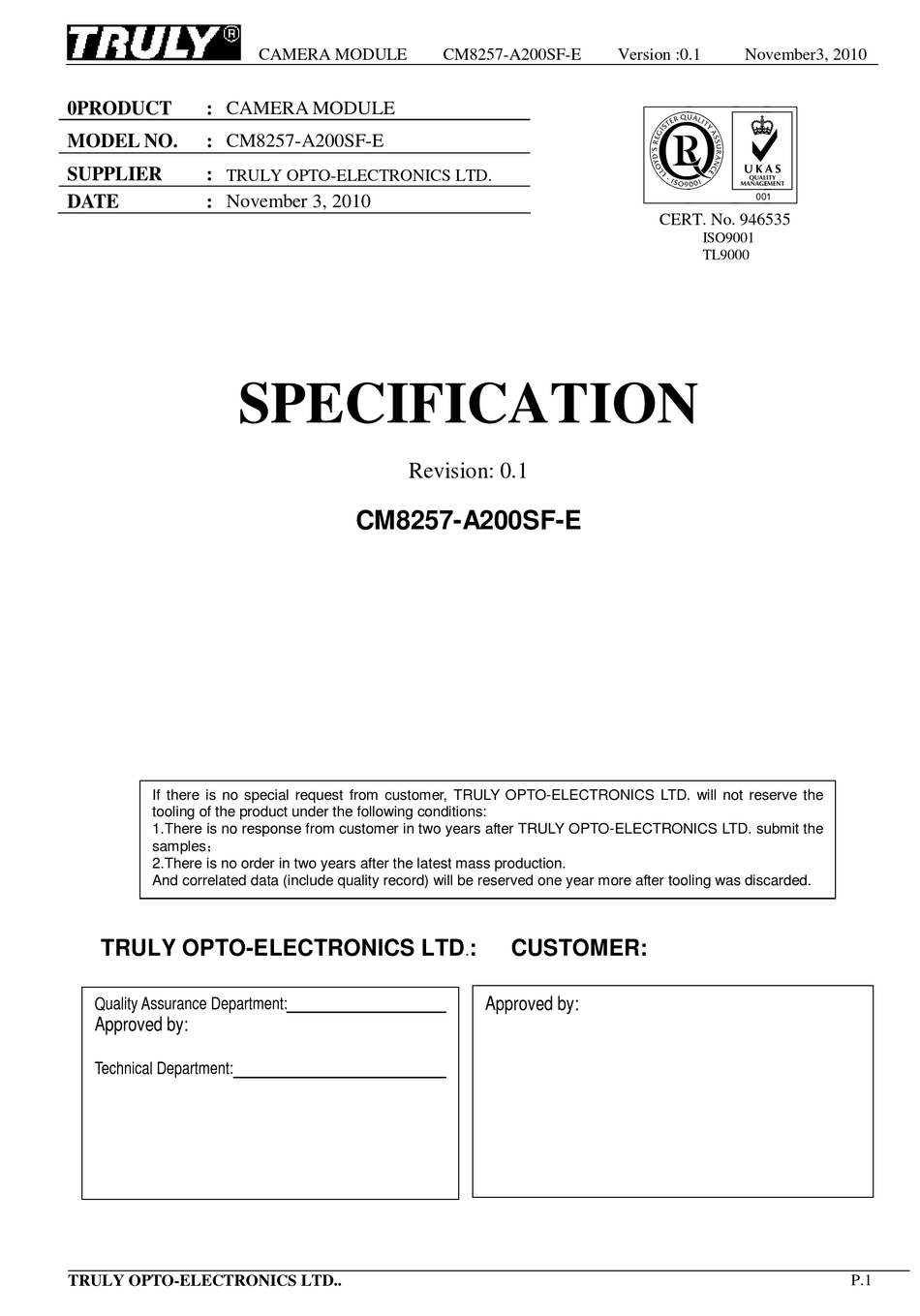

0PRODUCT
: CAMERA MODULE
MODEL NO.
: CM8257-A200SF-E
SUPPLIER
:
TRULY OPTO-ELECTRONICS LTD.
: November 3, 2010
DATE
SPECIFICATION
If there is no special request from customer, TRULY OPTO-ELECTRONICS LTD. will not reserve the
tooling of the product under the following conditions:
1.There is no response from customer in two years after TRULY OPTO-ELECTRONICS LTD. submit the
samples；
2.There is no order in two years after the latest mass production.
And correlated data (include quality record) will be reserved one year more after tooling was discarded.
TRULY OPTO-ELECTRONICS LTD
Quality Assurance Department:
Approved by:
Technical Department:
TRULY OPTO-ELECTRONICS LTD..
CAMERA MODULE
Revision: 0.1
CM8257-A200SF-E
CM8257-A200SF-E
:
CUSTOMER:
.
Approved by:
Version :0.1
November3, 2010
abcdef
CERT. No. 946535
ISO9001
TL9000
P.1
Advertisement
Table of Contents
Summary of Contents for Truly CM8257-A200SF-E
- Page 1 Revision: 0.1 CM8257-A200SF-E If there is no special request from customer, TRULY OPTO-ELECTRONICS LTD. will not reserve the tooling of the product under the following conditions: 1.There is no response from customer in two years after TRULY OPTO-ELECTRONICS LTD. submit the samples；...
- Page 2 CAMERA MODULE CM8257-A200SF-E Version :0.1 November3, 2010 REVISION RECORD REV NO. REV DATE CONTENTS REMARKS 2010-11-03 First release TRULY OPTO-ELECTRONICS LTD..
-
Page 3: Table Of Contents
QA PLAN n PRECAUTIONS FOR USING CCM MODULES n PACKAGE SPECIFICATION n PRIOR CONSULT MATTER n F ACTORY CONTACT INFORMATION WRITTEN BY CHECKED BY APPROVED BY LIN XIAO NI WEI YOU XING LIU TIE NAN TRULY OPTO-ELECTRONICS LTD.. -
Page 4: Key Information
Image Scaling 1x ~ 1/64x Optical Format 1/5 inch Image Flip X/Y Flip Host Interface: two-wire serial bus interface Operation Temperature -20 ~ 60°C Master Clock 48MHz(Max) IC Package Power Consumption TBD @ 15fps, UXGA Package Antistatic Plastic TRULY OPTO-ELECTRONICS LTD.. -
Page 5: Pin Assignment
Pixel Clock Output Output Parallel Data Output [6] Output Parallel Data Output [2] Output Parallel Data Output [5] Output Parallel Data Output [3] Output Parallel Data Output [4] Output Parallel Data Output [1] Output Parallel Data Output [0] TRULY OPTO-ELECTRONICS LTD.. -
Page 6: Electrical Characteristics
CAMERA MODULE CM8257-A200SF-E Version :0.1 November3, 2010 Electrical Characteristics Key Features TRULY OPTO-ELECTRONICS LTD.. - Page 7 CAMERA MODULE CM8257-A200SF-E Version :0.1 November3, 2010 TRULY OPTO-ELECTRONICS LTD..
-
Page 8: Mechanical Drawing
CAMERA MODULE CM8257-A200SF-E Version :0.1 November3, 2010 Timing Specifications Note: For more information of sensor please refer to the YACD511SBDBC specification. Mechanical Drawing TRULY OPTO-ELECTRONICS LTD.. -
Page 10: Appearance Specification
Label and mark shall be clear enough to be discerned. No dust, fingerprint, and not allows to Connector turning colors, distortion; Solder must be well; No open circuit or short circuit TRULY OPTO-ELECTRONICS LTD.. P.10... - Page 11 We will supervise these items in the manufacturing process and check products selectively. 2. Sampling standard Referenced standard: GB/T 2828.1-2003/ISO 2859-1:1999 and ANSI/ASQC.4-1993 Ⅱ TRULY OPTO-ELECTRONICS LTD.. P.11...
-
Page 12: Image Specification
Ⅱ I area：Blemish number≤1 Ⅱ area：Blemish number≤4 Ⅰ Color Color distortion ratio of center±15% Margin of two near scales’ brightness≥ Gray Scale ＜1% Distortion No flare in 45°viewing angle; Flare No ghost in full viewing angle TRULY OPTO-ELECTRONICS LTD.. P.12... -
Page 13: Qa Plan
Stiffener Same as production 100% Inspection Double coated AQL 1.5 ⅡClass Same as production 100% Inspection tapes AQL 1.5 ⅡClass Protective film Same as production 100% Inspection Sample: Referenced standard: GB/T 2828.1-2003/ISO 2859-1:1999 and ANSI/ASQC.4-1993 Ⅱ TRULY OPTO-ELECTRONICS LTD.. P.13... -
Page 14: Precautions For Using Ccm Modules
—Absolutely DO NOT modify the zebra rubber strip (conductive rubber) or heat seal connector —Except for soldering the interface, DO NOT make any alterations or modifications with a soldering iron. —DO NOT twist FPC of CCM. TRULY OPTO-ELECTRONICS LTD.. P.14... - Page 15 Version :0.1 November3, 2010 Apply indication Precaution for assemble the module with BTB connector: Please note the position of the male and female connector position, don’t assemble or assemble like the method which the following picture shows TRULY OPTO-ELECTRONICS LTD.. P.15...
- Page 16 Other precautions For correct using please refer to the relative criterions of electronic products. TRULY OPTO-ELECTRONICS LTD.. P.16...
- Page 17 Cosmetic/visual defects must be returned to TRULY within 90 days of shipment. Confirmation of such date shall be based on freight documents. The warranty liability of TRULY limited to repair and/or replacement on the terms set forth above.
-
Page 18: Package Specification
Requirements of outer carton box : 1． Weight(Max): 2． Height (Max): 0.29 M 3．Prohibition: Box made by log Material for Plastic tray It is made of antistatic polystyrene which has no chemical pollution. Surface resistivity : 10 ohm/sq TRULY OPTO-ELECTRONICS LTD.. P.18... - Page 19 Requirements of outer carton box : 4． Weight(Max): 5． Height (Max): 0.17 M 6．Prohibition: Box made by log Material for Plastic tray It is made of antistatic polystyrene which has no chemical pollution. Surface resistivity : 10 ohm/sq TRULY OPTO-ELECTRONICS LTD.. P.19...
-
Page 20: N Prior Consult Matter
November3, 2010 PRIOR CONSULT MATTER 1.①For Truly standard products, we keep the right to change material, process for improving the product property without notice on our customer. ②For OEM products, if any change needed which may affect the product property, we will consult with our customer in advance.
