Summary of Contents for Metalcraft 142-2-5

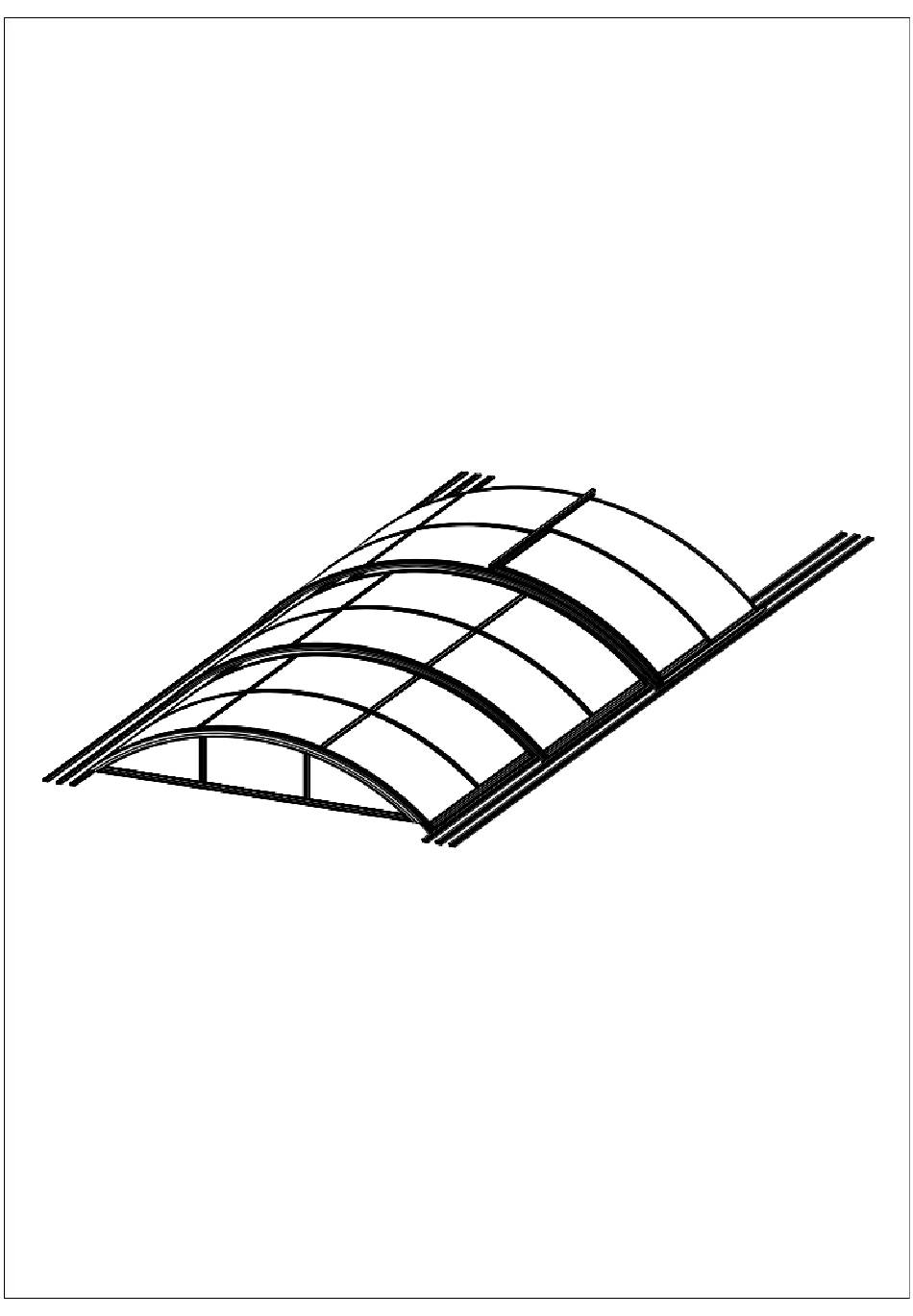

- Page 1 Assembly Instruction MODEL: 142-2-5 PRODUCT SIZE(LxWxH):390x850x88cm PLEASE READ CAREFULLY BEFORE ASSEMBLY...
- Page 2 Assembly and Maintenance Advice 1. For safety purposes, we strongly recommend that this product is assembled by at least three persons. 2. Some components have sharp metal edges. Please be careful when handling metal components. Please wear gloves, shoes and safety goggles during assembly. 3.
- Page 3 142-2-5 (ALU Box) PART PART L01A 01-L02A 01-L02B 02-L02A 02-L02B 03-L02A 03-L02B 01-L02G 01-L02H M6X35 L04A L05A L06A M6X60 L08A M4.2X16 L08B M4.2X25 L09A Ø6X16 K1-1 K3-1...
- Page 4 142-2-5 (PC Box) PART PC BOX...
- Page 5 PART PART PART PART 4.29M L01A 01-L02A 01-L02B 01-L02G 01-L02H L04A L05A M6X35 L08A K1 Assembly L09A M6X60 K1-1 M4.2X16 M4.2X25 Ø6X16...
- Page 6 Fix the wheels onto L01A (3PCS), using S01 & M01. Fix L08A onto K1-1, using Z02. Fix L01A * 2PCS onto K1-1 using Z01, shown as above.
- Page 7 1. Insert L11 into L04A as shown, and fix it with L04A using Z02; 2. Fix L04A onto K1-1 as shown, using Z02. Attention: Y1 must be placed into the channel of L04A & L01A at the same time. Make sure all the panels are in the right position before fixing Z02 tight. Fix 01-L02B with L01A and L04A, using Z01 &...
- Page 8 Attention: Y1 & Y9 must be placed into the channel of L04A/L01A at the same time. Make sure all the panels are in the right position before fixing Z02. Fix L04A onto 01-L02B as shown, using Z02. Insert L11 into L04A as shown, and fix it with L04A using Z02;...
-
Page 9: Window Assembly
Window Assembly... - Page 10 Fix one L05A onto L01A and the other one onto L04A, using Z02.
- Page 11 Fix W01 (4PCS) onto both ends of L05A, using Z04. Widen the holes into Dia 14mm, using a reamer and a power screwdriver. Fix CX onto 01-L02A 10MM away from the bottom, using Z03. Fix the handle W02 onto window profile 01-L02G, using Z02.
- Page 12 PART PART PART PART 3.97M L01A 02-L02A 02-L02B L04A M6X35 M6X60 M4.2X16 M4.2X25...
- Page 13 Fix the wheels onto L01A (3PCS), using S01 & M01. Fix L01A * 2PCS onto 02-L02A using Z01.
- Page 14 1. Insert L11 into L04A as shown, and fix it with L04A using Z02; 2. Fix L04A onto 02-L02A as shown, using Z02. Attention: Y2 must be placed into the channel of L04A and L01A at the same time. Make sure all the panels are in the right position before fixing Z02 tight.
- Page 15 Fix L04A onto 02-L02B as shown, using Z02. Attention: Y2 must be placed into the channel of L04A/L01A at the same time. Make sure all the panels are in the right position before fixing Z02. Insert L11 into L04A as shown, and fix it with L04A using Z02;...
- Page 16 Fix CX (2PCS) onto 02-L02A 10MM away from the bottom, using Z03. Cover all the holes with J01...
- Page 17 PART PART PART L01A 04-L02A 04-L02B L04A M6X35 L08B K3-1 M6X60 M4X16 M4.2X25...
- Page 18 Fix the wheels onto L01A (3PCS), using S01 & M01. Fix L08B onto K3-1, using Z02. Fix L01A * 2PCS onto K3-1 using Z01.
- Page 19 1. Insert L11 into L04A as shown, and fix it with L04A using Z02; 2. Fix L04A onto K3-1 as shown, using Z02. Attention: Y3 must be placed into the channel of L04A and L01A at the same time. Make sure all the panels are in the right position before fixing Z02 tight. Fix 03-L02B with L01A and L04A, using Z01 &...
- Page 20 Fix L04A onto 03-L02B as shown, using Z02. Attention: Y3 must be placed into the channel of L04A/L01A at the same time. Make sure all the panels are in the right position before fixing Z02. Insert L11 into L04A as shown, and fix it with L04A using Z02;...
- Page 21 Fix CX onto 03-L02A 10MM away from the bottom, using Z03. Widen the holes into Dia 14mm, using a reamer and a power screwdriver. Cover all the holes with J01...
- Page 22 PART L06A M6X60 M4.2X16...
- Page 23 3906 3654 3402 (MM) 9355 9252 9156 (MM) Small differences in the measurement are allowed in the actual installation...
- Page 24 Join 2 pcs of L06A as a longer one by inserting L12 into two ends, and fix them with Z02. 1. Lay down 2 longer L06A at the right distance as shown above. 2. Make pencil marks through the holes on one L06A, and then drill holes Dia 6MM on the ground.
- Page 25 1. Put K3 into the two tracks and adjust the L06A NO. 2 until K3 is moving smoothly. 2. Make pencil marks on the ground through the holes on L06A, and then drill holes Dia 6MM on the ground. 3. Tap J02 into the holes, and fix the L06A NO.2 onto the ground through the holes, using Z01. Fix L06A NO.
- Page 26 Fix the rest L06A in order the same way as above. Make sure all the covers must move smoothly before fixing the screws tight. Drill 4 oval holes (14*24mm) on L06A corresponded to the 4 latches (CX). This will help you lock up the swimming pool cover when you close it. Cover all the holes on L06A by J01 Finally, fix L13 (4PCS) at the ends of L06A,...
