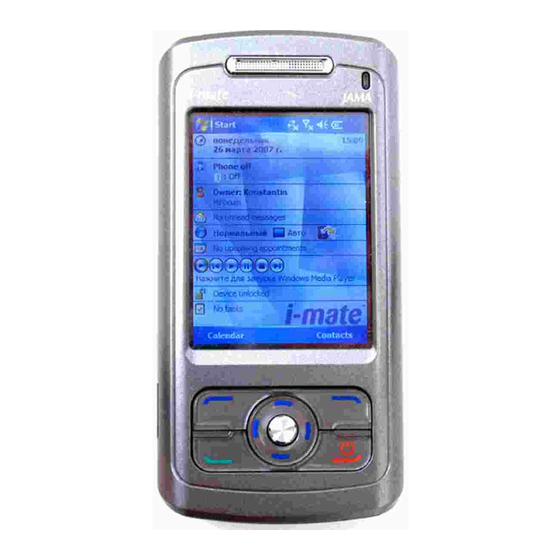

i-mate JAMA User Manual
  1. Manuals
  2. Brands
  3. i-mate Manuals
  4. Cell Phone
  5. JAMA
  6. User manual

i-mate JAMA User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Copyright
2007 i-mate.
®
No part of ths manual, ncludng the product and software descrbed n t,
may be reproduced, transmtted, transcrbed, stored n a retreval system, or
translated nto any language n any form, by any means, wthout pror wrtten
permsson from -mate™.
-mate™ provdes ths publcaton "as s" wthout warranty of any knd. Ths
nformaton could nclude techncal naccuraces or typographcal errors.
-mate™ may make mprovements and/or changes n the product. Informaton
and specifications contained in this document are subject to change at any
tme wthout notce.
The nformaton contaned n ths document does not affect or change the
product specifications or warranties. i-mate™ is not liable for any damages
resultng from the use of ths product.
Important Safety Information
Please read the followng nformaton carefully before you start usng your
devce to avod any damages caused by mproper usage:
•
The device is not charged when you take it out of the box.
•
The battery should be charged for at least 8 hours before first use. Please use the charger
supplied. Do not remove the battery while charging.
•
Do not use batteries, which have not been specified by the manufacturer, as this may
cause leakage or rupture, or personal injury.
•
Do not charge the battery with an unspecified AC Adapter, as this may cause damage to
both the device and the battery.
•
When discarding the batteries, dispose of them in a proper manner, according to the
battery manufacturer's instructions and your local laws.
•
Power off the device and remove the battery before inserting SIM card. Make sure the SIM
card clips correctly into the SIM socket.
•
Do not open or tamper with the device cover, as it will void your warranty.
•
Do not press hard on this product, as it may cause damage to the screen or the
internal components.
Verson 5.3
All Rights Reserved.
TM
Copyright

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JAMA and is the answer not in the manual?

Questions and answers

Related Manuals for i-mate JAMA

Summary of Contents for i-mate JAMA

  • Page 1 The nformaton contaned n ths document does not affect or change the product specifications or warranties. i-mate™ is not liable for any damages resultng from the use of ths product. Important Safety Information...
  • Page 2 Trademark Information © 2007 -mate plc. All rghts reserved. -mate, the -mate logo are ether registered trademarks or trademarks of i-mate plc or its affiliated companies. Mcrosoft , MS-DOS , Wndows...

  • Page 3: Table Of Contents

    Contents Chapter 1 Getting to Know Your Device 2 Vews of the devce 3 Gettng Started 5 Status ndcators 6 Enterng Informaton Chapter 2 Personalising Your Phone 10 Today screen 13 Start Menu 15 RingTone and Notifications 19 General Settngs 30 SIM Securty Chapter 3 Using Your Phone...
  • Page 4 Chapter 4 Getting Connected 44 Automatc setup of your GSM/GPRS data connectons 44 Manual setup of your data connectons 49 Bluetooth 57 Beams Chapter 5 Messaging 60 Text messagng 65 MMS 70 E-mal 83 Pocket MSN ® Chapter 6 Synchronising 94 Introducton to ActveSync 95 Installing and Configuring ActiveSync Chapter 7...
  • Page 5 123 Usng Wndows Meda Player 131 Internet Explorer Moble 136 Usng MIDLET Manager 139 Notes 141 Mcrosoft Word Moble ® 144 Mcrosoft Excel Moble ® 146 Vewng Slde Shows wth Mcrosoft PowerPont Moble ® 148 Internet Sharng 150 Usng Termnal Servces Clent 151 Fle Explorer 152 Addng more programs to your devce Chapter 8...
  • Page 6 v -mate | User Manual...

  • Page 7: GettNg Started

    Chapter 1 Gettng to Know Your Devce Vews of the devce Gettng started Status ndcators Enterng nformaton...
  • Page 8 VIEWS OF THE DEVICE Device buttons and connectors Item Function RF Plug Cover for the GSM plug. Mcro SD Card Slot Insert mcro SD memory card wth metal contacts facng downwards. Earpece For use durng phone calls. Left Soft Key / Start Performs the command shown n the label above the button.
  • Page 9 Navgaton Pad Press ths mult-drectonal control up, down, left, or rght to move through menus, or programs. Acton Button Confirm the selection from the Navigation pad by pressing the centre button. Earphone Jack Allows you to lsten to musc or make phone calls wth the ncluded headset.
  • Page 10 2 3 4 5 Description Description Tap to open the Start menu. Personalse your phone by tappng here to enter your contact detals. Tap to vew connectvty status. Indicates the current Profi le Settings.Tap to adjust the Profi le details. The Auto tickbox controls your profi le automatically based on your schedule.
  • Page 11 To smply put the devce n standby mode, so t can stll receve calls, hold the power button for 2 seconds, then release. To power off the devce completely, press and hold the POWER button for 5 seconds and the system wll prompt you to power off the devce.

  • Page 12: EnterNg InformatOn

    Connected to the PC. Synchronsaton error. Roamng. No SIM card nstalled. GSM sgnal strength. The number of Flght Mode. bars ndcates the sgnal strength. ENTERING INFORMATION Input Panel Input Panel provdes access to the varous avalable nput methods on your devce, ncludng Block Recognzer*, Keyboard, Letter Recognzer*, and Transcrber*.
  • Page 13 The followng nput methods are avalable when text entry s possble. Icon Input method Press to swtch the keyboard nput on or off. Input Panel Icon / Press the Input Selector Arrow to change nput methods. Letter Recognser or Block Recognser. Transcrber.
  • Page 14 To change the default nput mode n Notes, tap Menu > Optons n the notes lst and then, n the Default mode box, tap ether Wrtng or Typng dependng on your personal preferences. Then Tap OK. Voice Recording You can create a stand-alone voce recordng or you can add a recordng to a note. To create a voice note Tap Start >...

  • Page 15: Personalising Your Phone

    Chapter 2 Personalsng your phone Today screen Start menu Ringtone and notifi cations General settngs SIM securty...

  • Page 16: Today Screen

    TODAY SCREEN The Today screen shows your upcomng appontments, actve tasks, and nformaton about e-mal messages. To customise background items on the Today Screen on your device Tap Start > Settings > Personal tab > Today. On the Appearance tab, select the desired theme for the background of the Today screen. You can use one of your own pictures as the background image on the Today screen by selecting :“Use this picture as the background”...
  • Page 17 To customise appointments presentation on the Today Screen Tap Start > Settings > Personal tab > Today. Tap the Items tab. Select Calendar and tap Options. Do any of the following: • Select Next appointment to show only the next appointment in your schedule, or Upcoming appointments to show multiple appointments.
  • Page 18 To Customise Tasks If you have a large number of tasks, you may want to specfy the knd of tasks that are dsplayed on the Today screen. To set optons for dsplayng tasks on the Today screen: Tap Start > Settings > Personal tab > Today. Tap the Items tab.

  • Page 19: Start Menu

    To Enter Owner Information Enterng and dsplayng Owner Informaton n the Today Screen s recommended and allows someone to return the devce to ts owner n case t’s lost. Tap Start > Settings > Personal tab > Owner Information. In the Identification tab, enter your personal information. If owner nformaton s dsplayed on the Today screen, you can open and edt the nformaton drectly from the Today screen.
  • Page 20 To create folders and shortcuts You can also create folders and shortcuts to appear on the Start menu. Open ActveSync on your PC, clck Explore. In the Moble Devce wndow, ® double clck My Wndows Moble - Based Devce > Wndows > Start Menu, ®...

  • Page 21: Ringtone And Notifications

    RINGTONE AND NOTIFICATIONS To change the ringtone From the Phone keypad, tap Menu > Options > Phone tab. In the Ringtone list, tap the sound you want to use. NOTE: To use custom *.wav, *.mid, *.mp3, or *.wma fi les as ringtones, use ActiveSync on your PC to copy the fi le to the /Windows/Rings folder on your device.
  • Page 22 To assign ringtones to Contacts It is also possible to assign a specifi c ringtone to a Contact: Go to Start > Contacts and tap on the desired Contact. Select Menu > Edit. In the ringtone fi eld, select a ringtone of your choice. To change the ring type You can change the way that you are notifi ed of incoming calls.
  • Page 23 Tap the time to open a clock and set the time for the alarm. Tap the alarm icon ( ) to specify the type of alarm you want. You can choose a fl ashing light, a single sound, a repeating sound, or vibration. If you choose to play a sound, tap the list next to the Play sound check box and tap the sound you want.
  • Page 24 To choose how to be notifi ed about events or actions Tap Start > Settings > Personal tab > Sounds & Notifi cations. On the Sounds tab, choose how you want to be notifi ed by selecting the appropriate checkboxes. On the Notifi cations tab, tap an event name and choose how you want to be notifi ed by selecting the appropriate checkboxes.

  • Page 25: General SettNgs

    GENERAl SETTINGS To set the tme and date: Tap Start > Settings > System tab > Clock & Alarms. Select the correct time zone and change the date or time. Personalising Your Phone 19...
  • Page 26 To set the time and date for a different location If you vst or communcate wth someone n a partcular tme zone often, you can select t as your vstng tme zone. Tap Start > Settings > System tab > Clock & Alarms. Tap Visiting.
  • Page 27 To change language and regional settings The style in which numbers, currency, dates, and times are displayed is specifi ed n regonal settngs. Tap Start > Settings > System tab > Regional Settings. On the Region tab, select your region and language. The region you select determines which options will be available on the other tabs.
  • Page 28 To reassign programs or shortcuts to program buttons Tap Start > Settings > Personal tab > Buttons. A list of buttons and their current assignments is displayed on the Program Buttons tab. Tap the button you want to reassign. To help you identify the buttons, there are numbers and icons representing the original function of the button.
  • Page 29 To increase or decrease the size of text on the screen Tap Start > Settings > System tab > Screen > Text Size tab. Move the slider to increase or decrease the text size. Personalising Your Phone 23...
  • Page 30 To adjust the speed for scrolling Tap Start > Settings > Personal tab > Buttons > Up/Down Control tab. Do one of the following: • Under Delay before fi rst repeat, move the slider to shorten or lengthen the time that elapses before scrolling begins.
  • Page 31 To Change the device name Tap Start > Settings > System tab > About. Tap the Device ID tab. Enter a name. The devce name s used to dentfy the devce n the followng stuatons: • Synchronising with a PC •...
  • Page 32 To make the battery last longer Tap Start > Settings > System tab > Power. On the Advanced tab, you can specify when your device turns off to conserve battery power. For optimum conservation, specify 3 minutes or less. Use the AC adapter to plug your device into external power whenever possible, especially when using a microSD card or when using a modem or other peripherals.
  • Page 33 To adjust the brightness of the backlight Tap Start > Settings > System tab > Backlight > Brightness tab. Move the sliders right to increase the brightness, or left to decrease the brightness. To set the backlight to dim after a time delay Tap Start >...
  • Page 34 To close a program In most cases, programs automatcally close to free needed memory, however, you can close programs manually, f you prefer. Tap Start > Settings > System, and tab > Memory > Running Programs. In the Running Programs list, tap the program you want to close, and tap Stop. 28 -mate | User Manual...
  • Page 35 To change the orientation of the screen You can use your Pocket PC n both landscape and portrat modes, dependng on how you wsh to use the devce. Ether clck on the rotaton con from the Today screen Tap Start > Settings > System tab > Screen > General tab. Choose whether you wish to use the device in Portrait Mode or Landscape.

  • Page 36: Sim SecurTy

    SIM SECURITY To protect your phone with a PIN From the Phone keypad, tap Menu > Options > Phone tab. Tap Require PIN when phone is used. To change the PIN at any time, tap Change PIN. NOTE: Emergency calls can be placed at any time, without requiring a PIN. To protect your device with a password You can help keep your data more secure by requrng a password every tme the devce s turned on.
  • Page 37 To change your password Tap Start > Settings > Personal tab > Lock. You will be prompted to enter your current password. In the Password box, enter your new password. On the Hint tab, enter a phrase that will help you remember your new password, but doesn’t allow others to guess your password.
  • Page 38 32 -mate | User Manual...

  • Page 39: MakNg A Call

    Chapter 3 Usng your phone Makng a call Recevng a call In call optons Specal dalng requrements Addtonal settngs...
  • Page 40 MAKING A CAll Lke a standard moble phone, you can use your -mate Wndows Moble ™, ® Pocket PC Phone Edton devce to make, receve, and keep track of calls. You can also take notes whle talkng, dal drectly from Contacts, and easly copy SIM contacts to Contacts on the devce.
  • Page 41 Make a call from Contacts Tap Start > Contacts. To search for a contact enter the desired name and number in the search fi eld, or press the letter corresponding to the name in the alphabet bar. Tap the desired contact, and press TALK twice (once to send the number to the Phone keypad, and once to dial the number).
  • Page 42 By default, the moble telephone number (m) of a contact s daled when you make a call from Contacts. However, you can specfy that a dfferent phone number s used nstead. Tap Start > Contacts. Press NAVIGATION up or down to select the contact. Press NAVIGATION left or right.
  • Page 43 Make a call from Speed Dial Use Speed Dal to call frequently-used numbers wth a sngle tap. For example, f you assgn a contact to the locaton 2 n Speed Dal, you can smply tap and hold on the Phone screen to dal the contact’s number. Before you can create a Speed Dal entry, the number must already exst n Contacts.
  • Page 44 To create a Speed Dial entry from Contacts, tap and hold the contact name, tap Add to Speed Dial, and select an available location for the new Speed Dial. To delete a Speed Dial entry, in the Speed Dial list, tap and hold the desired entry, and tap Delete. Making an emergency call To make an emergency call just enter the emergency phone number for your locaton and press TALK.
  • Page 45 To end a call Once an ncomng or outgong call s n progress, you can tap End or press END on the devce to hang up. IN CAll OPTIONS To put a call on hold If this option is enabled, your device notifi es you when you have another incom- ing call, and gives you the choice of rejecting or accepting the call.
  • Page 46 To mute a call You can turn off the mcrophone durng a call, so that you can hear the caller but the caller cannot hear you. Durng a call, tap Mute. • When the microphone is turned off, the mute icon appears on the screen. •...
  • Page 47 To choose the services Tap Start > Settings > Phone > Services tab. Tap the service you want to use and tap Get Settings. Networks You can vew avalable wreless networks, determne the order n whch your devce accesses another network f the current one s unavalable, and specfy whether you want to change networks manually or automatcally.
  • Page 48 To change the keypad tone You can change the tone you hear when enterng a phone number on the keypad. If set to Long tones, the tone s heard contnuously for as long as the number on the keypad s pressed. Use ths settng f you are havng trouble accomplshng tasks that rely on tones from your phone such as accessng messages from an answerng machne.

  • Page 49: AutomatC Setup Of Your Gsm/Gprs Data ConnectOns

    Chapter 4 Gettng connected Automatc setup of your GSM/GPRS data connectons Manual setup of your data connectons Bluetooth Beams...
  • Page 50 AUTOMATIC SETUP OF YOUR GSM/GPRS DATA CONNECTIONS Your devce s equpped wth powerful networkng functons that enable you to connect to the Internet through a General Packet Rado Servce (GPRS) net- work. GPRS s a servce that allows nformaton to be sent and receved across a moble telephone network.
  • Page 51 Tap Start > Settings > Connections tab > Connections. Tap Add a new modem connection. Enter a name for the connection. Select a modem from the list. For example, if you want to use the mobile phone network, select Cellular Line (GPRS). Tap Next.
  • Page 52 Tap Start > Settings > Connections tab > Connections. In My Work Network, follow the instructions for each type of connection. Once finished, tap on “Edit my proxy server”, and enter the Proxy Information, including any WAP Proxy required by the operator if setting up a connection to their WAP site. Complete the connection wizard, then tap Finish.
  • Page 53 5. If you selected IPSec VPN type, press Next to select the type of authentication required. If Pre-Shared key is selected, enter the key. 6. Check the advanced settings and complete the settings according to the instructions from your network administrator. Connect to Intranet URls A work URL excepton tells Internet Explorer Moble and/or ActveSync to look on the work network to fi nd that URL instead of searching the Internet.
  • Page 54 You should not create URL exceptions for URLs on the Internet. An Intranet URL can be either an IP address or FQDN (Fully Qualifi ed Domain Name). 48 -mate | User Manual...
  • Page 55 blUETOOTH Bluetooth s a short-range wreless communcatons technology. Devces wth Bluetooth capabltes can exchange nformaton over a dstance of about 10 metres wthout requrng a physcal connecton. You can even beam nformaton to a devce n a dfferent room, as long as t s wthn the Bluetooth sgnal coverage range.
  • Page 56 To turn on or off bluetooth on your device On your device, tap Start > Settings > Connections tab > Bluetooth. Select the Turn on Bluetooth. Select the “Make this device visible to other devices” check box if you want your device to be visible to other Bluetooth users in a range of approximately 10 meters.
  • Page 57 On your device, tap Start > Settings > Connections tab >Bluetooth. Getting Connected 51...
  • Page 58 2. On the Devices tab, tap Add New Device. Your device searches for other Bluetooth devices and displays them in the box. 52 -mate | User Manual...
