- Page 1 DF703 Waste Bin Detector LoRaWAN Data sheet Version:V2.1 Date:2021-06-08 Beijing Dingtek Technology Corp., Ltd. Tel:86-10-64718863,64753700 http://www.dingtek.com E-mail: service@dingtek.com Room A209, Flounder Business Park, Shunbai Road 12, Chaoyang District, Beijing, China 100022 Page...
- Page 2 Change Notes V2.1 Modify blind area and battery life; V2.0 Initial DF703 Waste Bin Detector; V1.0 Initial DF702 Waste Bin Detector; Beijing Dingtek Technology Corp., Ltd. Tel:86-10-64718863,64753700 http://www.dingtek.com E-mail: service@dingtek.com Room A209, Flounder Business Park, Shunbai Road 12, Chaoyang District, Beijing, China 100022...
-
Page 3: Table Of Contents
8.1 Boot sensor........................12 8.2 Installation........................ 12 9 Package..........................14 10 Video Link...........................15 11 FCC WARNING STATEMENT.................... 15 Beijing Dingtek Technology Corp., Ltd. Tel:86-10-64718863,64753700 http://www.dingtek.com E-mail: service@dingtek.com Room A209, Flounder Business Park, Shunbai Road 12, Chaoyang District, Beijing, China 100022 Page... -
Page 4: Cautions
●The battery in the device is Non-Chargeable. ●Please Do Not recharge it. ●If it is Out of Power please order new battery from CNDingtek. ●The battery can not Work more then+85℃ Degree Temperature. Beijing Dingtek Technology Corp., Ltd. Tel:86-10-64718863,64753700 http://www.dingtek.com E-mail: service@dingtek.com... -
Page 5: Disclaimer
CNDingtek products. Due to the manually photos of the products and printing reasons the photos in this documents maybe different from the real released products.Please use the released product as final reference. Beijing Dingtek Technology Corp., Ltd. Tel:86-10-64718863,64753700 http://www.dingtek.com E-mail: service@dingtek.com... -
Page 6: Overview

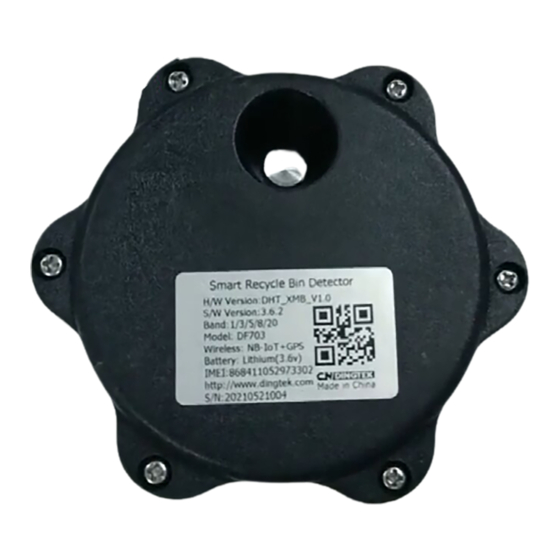

1 Overview The DF703 sensor is designed for waste bin (Trash Bin) status detection of waste Bin outside or inside used. It detect the following status for the customer of using place for the user Full Empty Flame risk ... -
Page 7: Application
Of course, this sensor can also be used in other environments, such as measuring liquid level. We can also customize the software version if you have other needs. Beijing Dingtek Technology Corp., Ltd. Tel:86-10-64718863,64753700 http://www.dingtek.com E-mail: service@dingtek.com... -
Page 8: Specification
4 Specification The specification of the Device DF703 Waste bin Sensor is given with all details. Dimension 115*115*40mm Net Weight 150g Color Black Overview Shell Material Principle ultrasonic@40Khz Detection Range 4meters Blind area 15cm Accuracy of height Detector Accuracy 2℃... -
Page 9: Mechanical Size
115mm*115mm*40mm (Notes: only for reference, real product update frequently without notification.) 6 Software Platform 6.1 Network Diagram Beijing Dingtek Technology Corp., Ltd. Tel:86-10-64718863,64753700 http://www.dingtek.com E-mail: service@dingtek.com Room A209, Flounder Business Park, Shunbai Road 12, Chaoyang District, Beijing, China 100022 Page... -
Page 10: Application Software
The data about user of device will be collect from the DF703 smart bin sensors will be received to the gateway then the gateway send the data to LoRa network server through internet. After that the data from usage sensor of LoRa network will be transferred through the internet to the application server. - Page 11 Manager Assess Analyze Beijing Dingtek Technology Corp., Ltd. Tel:86-10-64718863,64753700 http://www.dingtek.com E-mail: service@dingtek.com Room A209, Flounder Business Park, Shunbai Road 12, Chaoyang District, Beijing, China 100022 Page...
-
Page 12: Protocol And Api Interface
Use the screws provided to mount the unit on the top or side wall of the trash can. Need to be punched and installed. For trash bin with top cover, please fix the sensor with screw to the top cover.The sensor will be downward (transducer face downward). Beijing Dingtek Technology Corp., Ltd. Tel:86-10-64718863,64753700 http://www.dingtek.com E-mail: service@dingtek.com... - Page 13 If the space for installation it too small, please try to remove the top cover from the trash bin body and fasten it again. Then restore the top cover with the trash bin body. Beijing Dingtek Technology Corp., Ltd. Tel:86-10-64718863,64753700 http://www.dingtek.com E-mail: service@dingtek.com...
-
Page 14: Package
Magnetic Part per batch of equipment Manual Customer Guide At least one per batch of equipment 9 Package Beijing Dingtek Technology Corp., Ltd. Tel:86-10-64718863,64753700 http://www.dingtek.com E-mail: service@dingtek.com Room A209, Flounder Business Park, Shunbai Road 12, Chaoyang District, Beijing, China 100022 Page... -
Page 15: Video Link
-- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. Beijing Dingtek Technology Corp., Ltd. Tel:86-10-64718863,64753700 http://www.dingtek.com E-mail: service@dingtek.com...
