Summary of Contents for EVA Stampaggi KALI THELMA
- Page 1 INSTRUCTION MANUAL 3 BUTTON DISPLAY INSTALLATION AND USE...
- Page 2 TABLE OF CONTENTS FLUE PIPE………………………………………………………………………………………………………………… page 3 01.1 FLUE PIPE CHARACTERISTICS………………………………………………………………………………. page 3 INSTALLATION WARNINGS………………………………………………………………………………………………… page 3 INSTALLATION………………………….……………………………………………………………………………………...page 3 03.1 TRADITIONAL PELLET STOVES...…………………………………………………………………………………. page 3 ELECTRONICS WITH DUEPI 3 BUTTON LED DISPLAY (Pellet stoves)..…………………………………………… page 3 04.1 CONSOLE…………………………………………………………………………………………………………….. page 3 04.2 USER FUNCTIONS………………………………………………………………………………………………….
- Page 3 01. FLUE PIPE 01.1 FLUE PIPE CHARACTERISTICS PELLET STOVE 8 KW (9) SPCT8 Chimney flue draught Fume temperature 214 °C Maximum flue smoke flow 02. INSTALLATION WARNINGS • If the stove is to be installed in rooms where it is surrounded by combustible materials (e.g. furniture, wood cladding, etc.), the following minimum clearances must be complied with: STOVES and BOILERS FLAMMABLE...

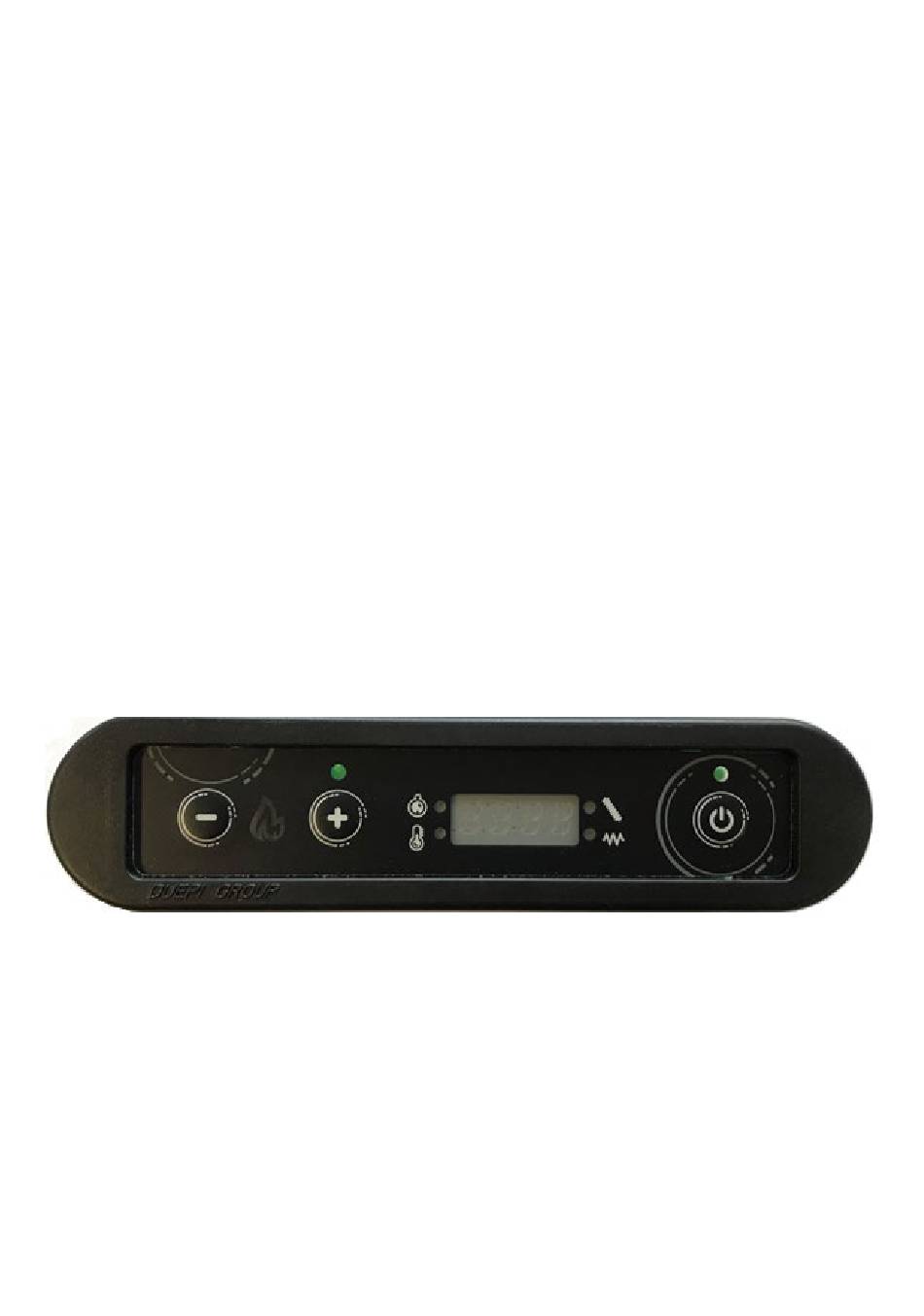

- Page 4 04. ELECTRONICS WITH DUEPI 3 BUTTON LED DISPLAY (Pellet Stove) 04.1 CONSOLE Description of Console: 1) Button 1 opens the work programme settings. During setting, press it to move to the next menu item or increase the displayed value. 2) Button 2 opens the work temperature settings. During setting, press it to go back to the previous menu item or decrease the displayed value. TIMER LED: It is on when the programmer timer setting is enabled.
- Page 5 04.3 MENU User programming is possible using the accessible menu by pressing button and then button 8. The technical menu appears as follows: MENU DESCRIPTION MN01 Current day MN02 Current hour MN03 Current minutes MN04 Access to technical parameters MN05 Timer ON 1 Programme 1 MN06...
- Page 6 05. ALARMS “NO ACC” alarm. The alarm is triggered when the fume temperature does not increase by a gradient equal to 3 °C/min during the LOAD WOOD or FIRE ON phases and does not reach the temperature set by PR13 within the time set by PR01: •...
- Page 7 Tel: +39 0438 740433 Fax: +39 0438 740821 I dati e le caratteristiche indicate non impegnano Eva Stampaggi S.r.l., che si riserva il diritto di apportare le modifiche ritenute opportune senza obbligo di preavviso o di sostituzione. Tutti i diritti riservati. Vietata riproduzione totale o parziale senza espressa autorizzazione di Eva Stampaggi S.r.l.
