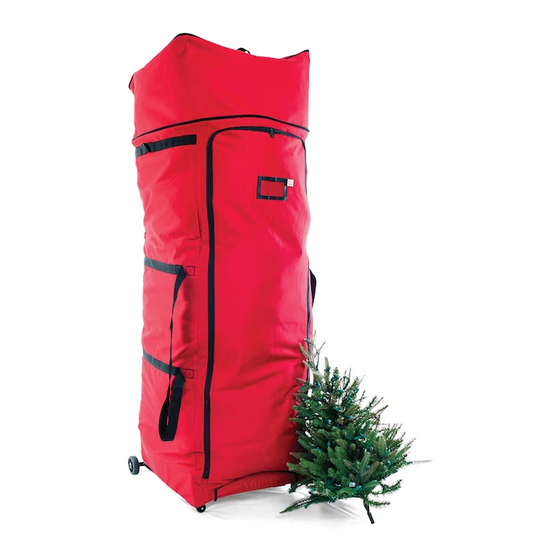

Santa's Bags SB-10181-RS Assembly Instructions

XL Tree Dolly Assembly Instructions
For assistance with assembly including instructional videos, parts and customer service visit
Please lay out all parts prior to assembly or installation. Read instructions prior to assembly.

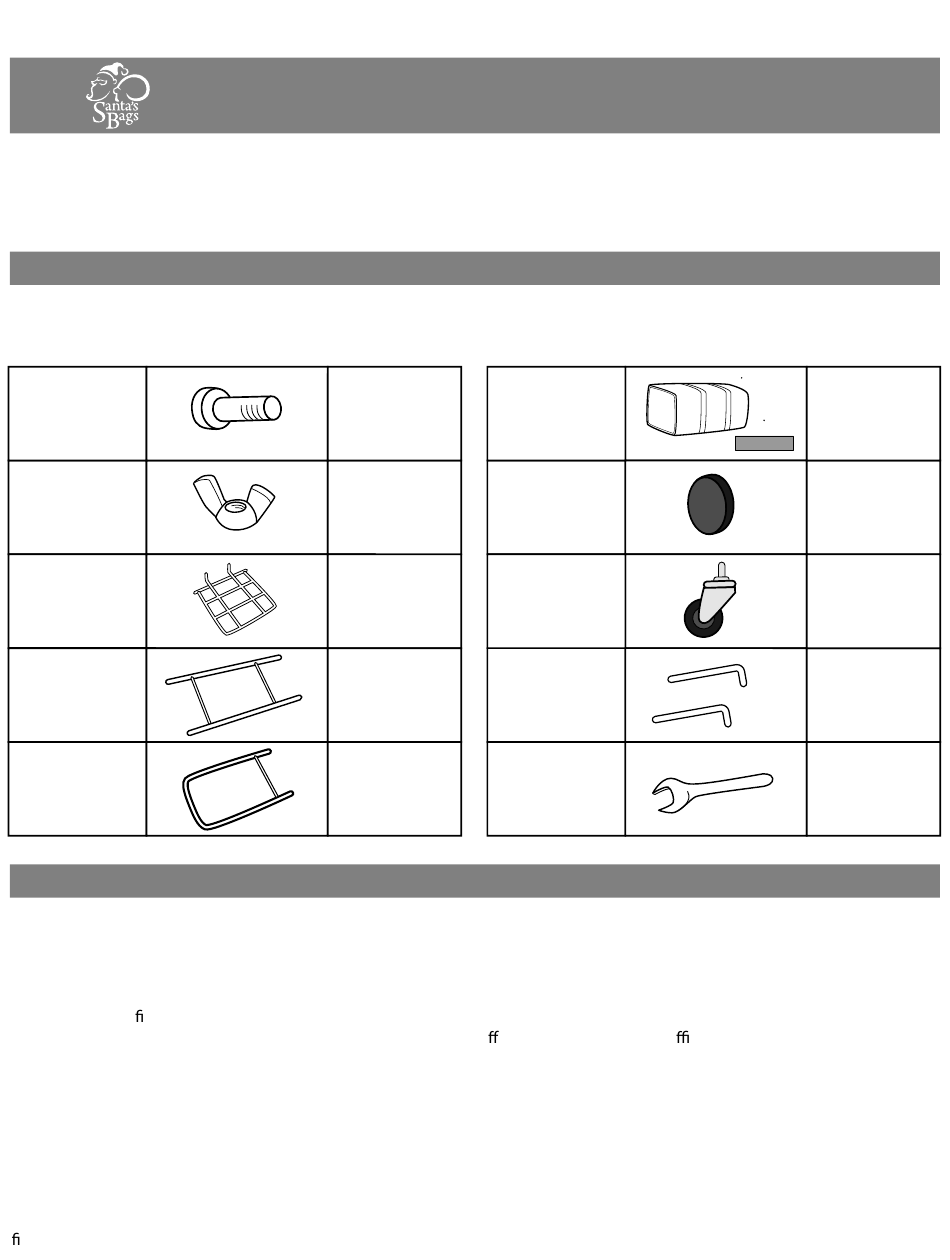

PART PART PICTURE
A.
Bolt
B.
Wing Nut
C.
Base
D.
Middle
Frame
E.
Top
Frame
Step 1. Rear side wheels (Part G) attach by screwing in the bolt (Part A) with the provided Alan wrench (Part I).
Step 2. Front castors are installed by threading the wheels (Part H) onto the base (Part C). Then by using the included
wrench (Part J), rotating until tight.
Step 3 & 4. Insert the middle frame section (Part D) into the tubes on the base of the dolly (Part C). Because the
section's tubing t's tightly, be sure to keep the frame sections lined perfectly straight with each other as you assemble
them together. Having one section or the other at a slightly "o " angle may result in di culty in assembling.
Step 5. Insert the top frame section (Part E) into the tubes of the middle frame section (Part D).
Step 6. Insert six bolts into the holes on both frame sections (Parts D & E) and tighten with the provided wing nuts
(Part B). Four bolts connect the top section to the middle frame section. Two bolts connect the middle frame to the base.
Step 7. Slide the rear bag sleeve (Part F) over the handle of the frame (Part E).
Step 8. Velcro the top bag handle onto the top of the dolly handle.
Step 9. Velcro the base of the bag (Part F) to the base of the dolly (Part C).
Step 10. Insert the plastic board into the pocket located INSIDE the bag at the bottom, rear panel. Velcro shut when
nished.
DO NOT RETURN TO VENDOR.
www.SantasBags.com
QUANTITY
6 For Frame
2 For Wheels
(Larger)
ASSEMBLY INSTRUCTIONS
ITEM SB-10181-RS
PARTS LIST
PART
F.
Storage
Bag & Plastic
board
G.
Back
6
Wheels
H.
Front
1
Castors
I.
Alan
1
Wrench
J.
1
Wrench
(ILLUSTR ATIONS ON NEXT PAGE)
PART PICTURE QUANTITY
For Bolts
For Wheels
1
2
2
2
1
