Quick Start
Complies with the requirement of The Protection of Animals at the Time of Killing
(Amendment) (England) Regulations 2022 (Legislation.gov.uk) for piglets under 10 kg.
1. Operator & bystander safety is your 1
Wear safety glasses and always point the
Zephyr in a safe direction.

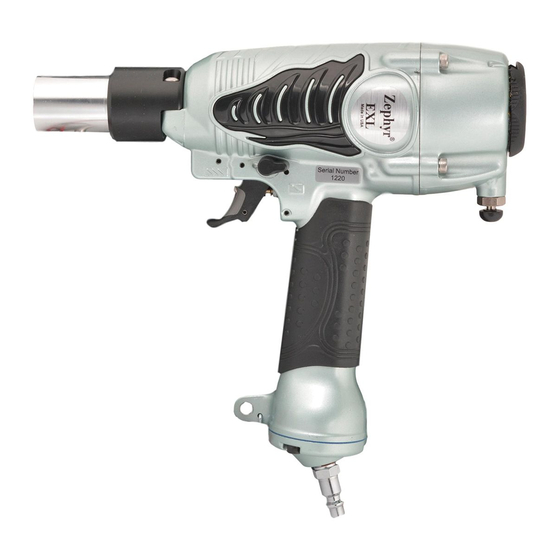

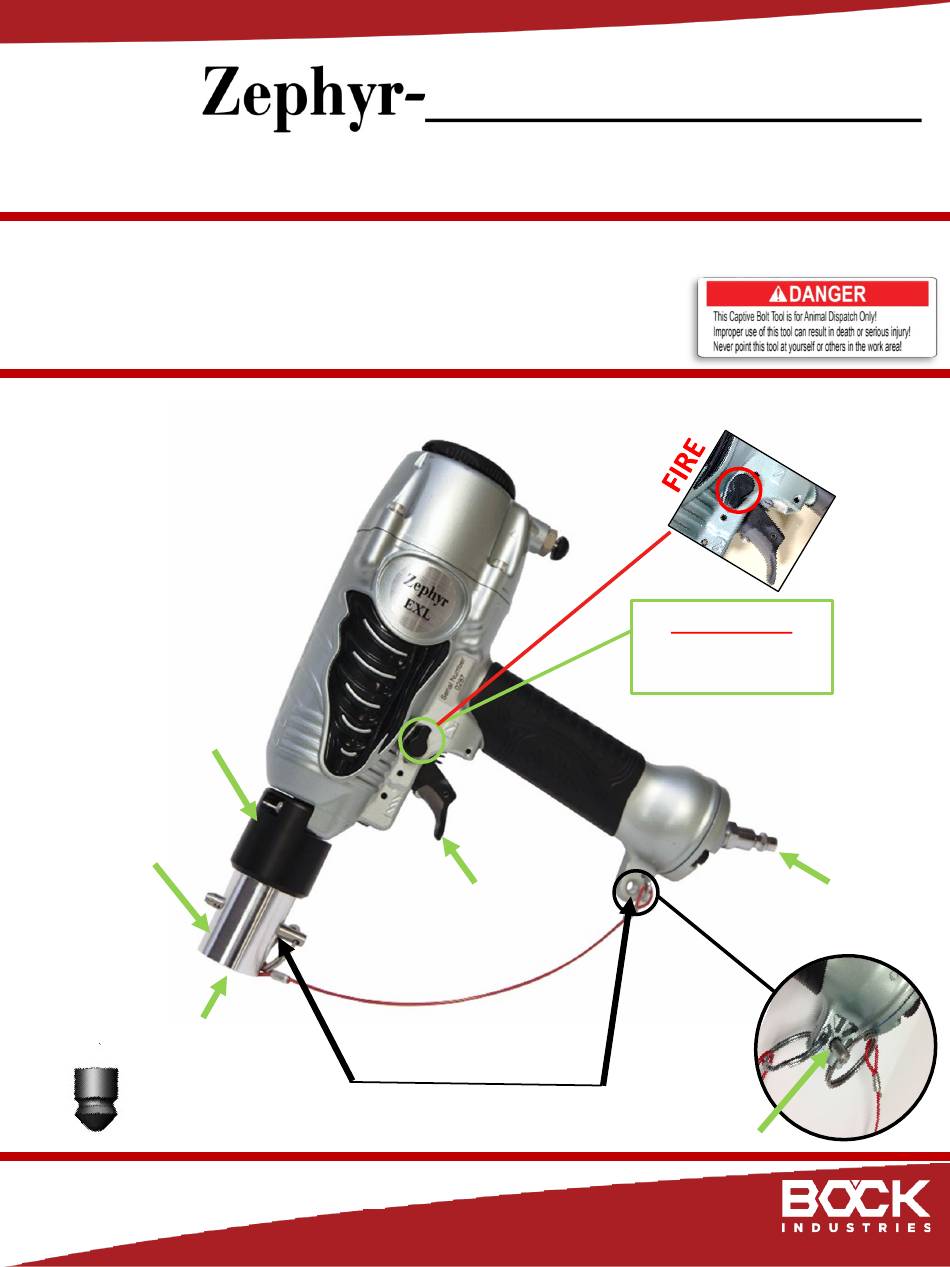

2. Zephyr Components & Specifications
Energy = 28 Joules
Bolt Velocity = 27 m/s
Mass = 1.1 kg
Guide
Adapter
Bolt Head
(retracted, not shown)
(example)
Video Training
bock-industries.com
Technical Support: 814-777-3890
EXL
Trigger
Safety Pin Hole
(shown in safe location)
Storage: push safety pin thru hole
1
priority!
st
Safety Lever
- Up is SAFE
(shown)
- Down is FIRE
© 2022 Bock Industries, Incorporated.
1/2
Pneumatic
Fitting
(125-130 psi)
All Rights Reserved.
Advertisement
Table of Contents
Summary of Contents for BOCK Zephyr EXL
- Page 1 Guide Pneumatic Adapter Fitting Trigger (125-130 psi) Bolt Head (retracted, not shown) Safety Pin Hole (shown in safe location) (example) Storage: push safety pin thru hole Video Training bock-industries.com © 2022 Bock Industries, Incorporated. Technical Support: 814-777-3890 All Rights Reserved.
- Page 2 4. Connect Zephyr to Air Compressor Set at 125-130psi Minimum compressor rating 4 CFM @ 90psi For Example: Metabo HPT "THE TANK" Pancake Air Compressor, 200 PSI, 6 Gallon (EC914S) (Recommended, not included) Video Training bock-industries.com © 2022 Bock Industries, Incorporated. Technical Support: 814-777-3890 All Rights Reserved.
- Page 3 The operator must apply the device in the proper position and use the correct strength of cartridge or other propellant in accordance with the manufacturer’s instructions to produce an effective stun or kill, as appropriate. Video Training bock-industries.com © 2022 Bock Industries, Incorporated. Technical Support: 814-777-3890 All Rights Reserved.
- Page 4 2X to confirm proper operation. 2. Targeting: 2.1 Support the piglet’s head against a solid surface. Use Bock Industries piglet restraint if available. 2.2 Locate target: Top center of head, between eyes & ears. 3. Firing Sequence: 3.1 In one motion: Press the ADAPTER firmly on target and...
- Page 5 We recommend standard air tool oil be added directly into the air hose connector on the Zephyr daily. During depopulation, clean and add air tool oil after every 500 shots. Video Training bock-industries.com © 2022 Bock Industries, Incorporated. Technical Support: 814-777-3890 All Rights Reserved.
- Page 6 Add two (2) drops of pneumatic tool oil into pneumatic connection on the Zephyr. xii. Dry fire Zephyr 5 times to force pneumatic tool oil into the Zephyr to displace any internal water or cleaning fluids. © 2022 Bock Industries, Incorporated. Technical Support: 814-777-3890 All Rights Reserved.
- Page 7 BOLT HEAD contacts stainless washer, then tighten 1/8 turn more. Do not strip the threads! Remove vise- grip pliers from PISTON and replace the ADAPTER. Video Training bock-industries.com © 2022 Bock Industries, Incorporated. Technical Support: 814-777-3890 All Rights Reserved.
