ST robotics

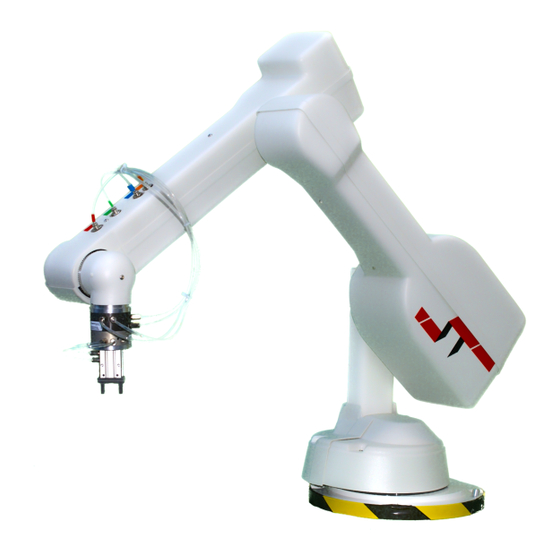

R17 Tool Changer instructions
page 1
R17 Tool Changer instructions.
Please read this before proceeding with the R17 manual.

Overview

Some ROBOFORTH 'code' is supplied with the system, see later.
The pneumatic devices comprise a pneumatic gripper, a vacuum pickup with 4 cups and a
tool changer system. The robot can pick up either the vacuum pickup or the gripper with
the tool changer. The tool not in use is parked on a rack.
To operate the tool changer compressed air is required to unlock and release the tool.
With no air to the changer a spring holds the tool in place but locking pressure is also
used to ensure a positive lock against the electrical contacts.

Pneumatics

THIS ITEM IS MOUNTED ON WOODEN BASE AND HAS TEMPORARY
CONNECTIONS FOR TESTING ONLY

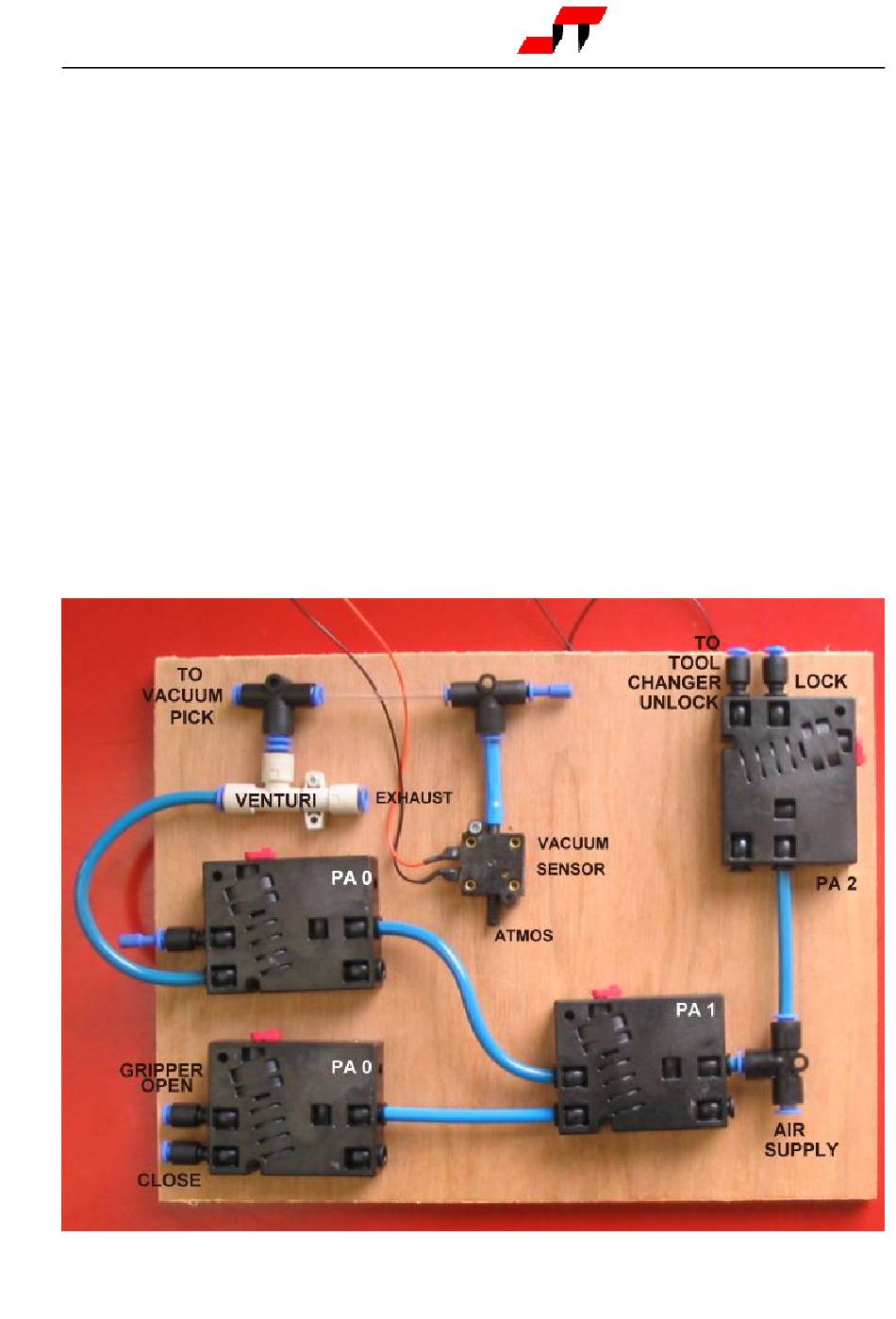

The pneumatics circuit comprise 4 valves (or switches), a Venturi to produce vacuum, and
vacuum sensor. See diagram1 below. Connect to the robot base as indicated in
diagram2.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R17 and is the answer not in the manual?

Questions and answers

Related Manuals for ST Robotics R17

Summary of Contents for ST Robotics R17

  • Page 1 R17 Tool Changer instructions page 1 R17 Tool Changer instructions. Please read this before proceeding with the R17 manual. Overview Some ROBOFORTH ‘code’ is supplied with the system, see later. The pneumatic devices comprise a pneumatic gripper, a vacuum pickup with 4 cups and a tool changer system.
  • Page 2 ST robotics R17 Tool Changer instructions page 2 The controller has an output port PA with 8 bits, 3 of which control the pneumatic valves. To unlock the tool changer operate PA bit 2 with PA 2 ON. To lock again use PA 2 OFF.
  • Page 3 ST robotics R17 Tool Changer instructions page 3 In the sample code for GRIPCHECK PA 1 is tested to see whether you are using the vacuum or gripper and reads the appropriate input. It is always a good idea to use GRIPCHECK after you have got well away from the working area and then stop the robot if necessary in a safer place.
