Summary of Contents for Galaxy IPTV-DMG
-

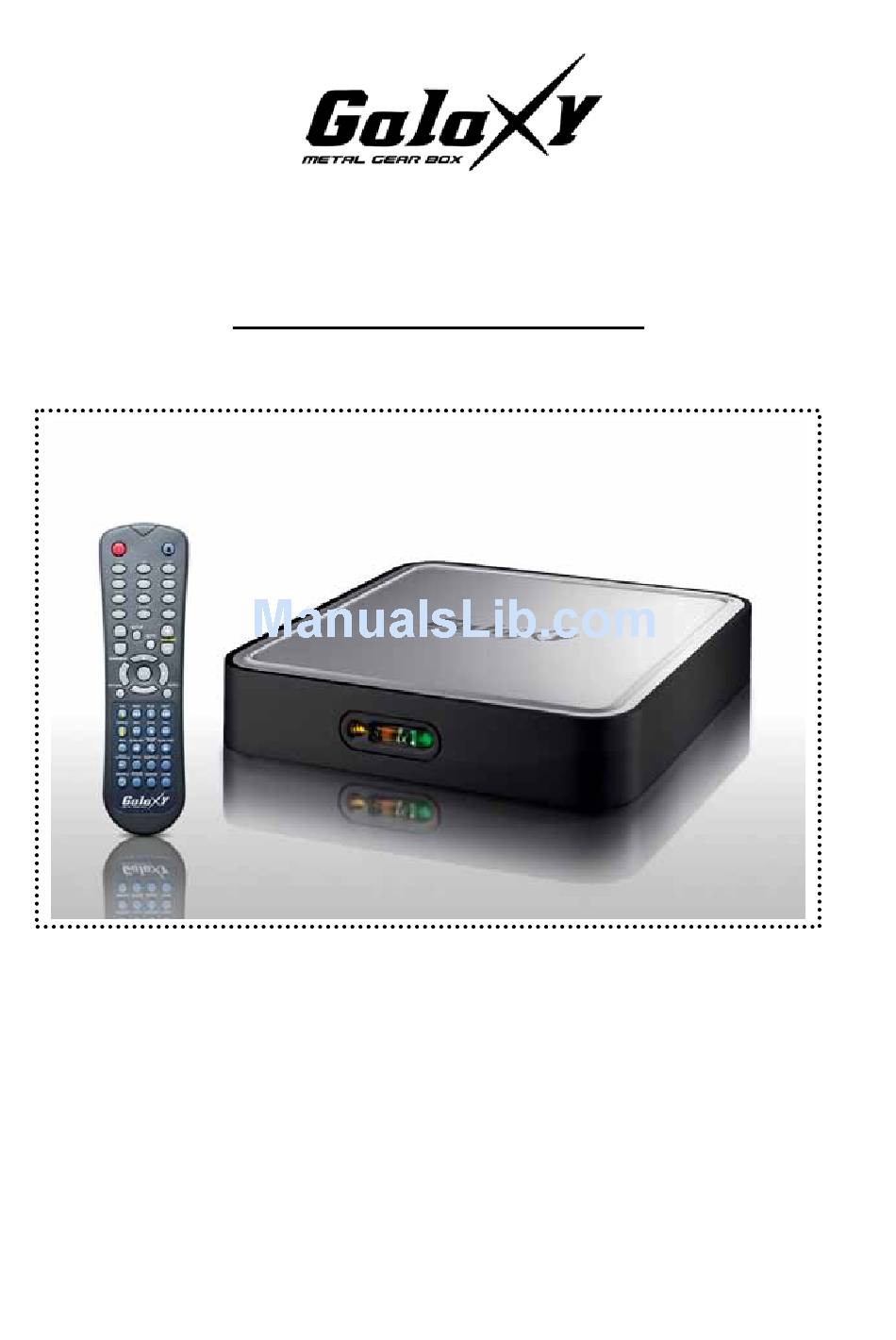

Page 1: User Manual
IPTV-DMG Digital Media Gateway User Manual & Installation Guide V1.0... -
Page 2: Table Of Contents
Table of Contents CHAPTER 1 - INTRODUCTION IPTV-DMG ACKAGE ONTENTS PTIONAL YSTEM EQUIREMENTS PC R EQUIREMENTS TV R EQUIREMENTS NTERFACE NFORMATION EMOTE ONTROL [CLEAR] [SELECT] [TV MODE] [SETUP] [VOLUME] [RETURN] [SUBTITLE] [AUDIO] CHAPTER 2 - SYSTEM SETUP ETUP PTIONS CREENSAVER... -
Page 3: Chapter 1 - Introduction
Chapter 1 - Introduction The IPTV-DMG The 'IPTV-DMG' Digital Media Gateway is the perfect gateway for your living room, linking up your PC, TV, stereo, digital camera and much more. Great design coupled with playback support for all kinds of standard media formats and simple installation makes it the perfect all-in-one multimedia solution. -
Page 4: Interface Information
Interface Information Following images are for reference only and show the IPTV-DMG without the optional 802.11 b/g antenna. Yellow: LAN connection Power switch A/V multi interface connecto Green: Power ON/OFF Infrared Receiver USB host Power connectors receptacle SPDIF audio out... -
Page 5: Remote Control
[SETUP] Press this key to enter the setup menu and change the settings and other configuration options for your IPTV-DMG. [VOLUME] When browsing web pages, these keys can be used to scroll up and down, otherwise they are used to adjust the volume for music and video files. -
Page 6: Subtitle]
A: N/A B: Return to Menu A: N/A B: Return to Home A: File Info B: Go to Setup A: Time Search B: URL input A: Repeat B: Refresh [A-B] Return to the menu or the main screen depending on the present mode. [REPEAT] Return to the main screen. -
Page 7: Chapter 2 - System Setup
Chapter 2 - System Setup Find a suitable place for your IPTV-DMG, within a distance of 1.2m or less of your TV screen. Connect the power supply and the power outlet. Included with your IPTV-DMG is a standard AV cable and a YPbPr cable. -
Page 8: Setup Menu
Setup Menu Once booted, press the SETUP key on your IPTV-DMG remote control to access the configuration screen and its settings. Options [Screensaver] Set a time from 1-60 minutes before the screensaver turns on. [Language] Select your preferred language for the on-screen menu, file browser encoding and subtitles. -
Page 9: Ip Config
IP Config By default, you can leave these settings and the IPTV-DMG will automatically request the IP and other information over the network. If the internet connection does not work or you would like to change it, switch to manual mode. -
Page 10: Wireless Setup
Infrastructure (AP) but if required, you also set it to Ad-Hoc (peer-to-peer). [Security] IPTV-DMG supports WEP 64-bit or 128-bit encryption for additional security. Select the WEP encryption used in your home network and enter the key or set it to OFF. -
Page 11: Time Setup
Displays current firmware version and can be used to check for new releases and upgrades for the IPTV-DMG. If your IPTV-DMG is not connected to the internet, you can download the latest firmware from your vendor’s website and save it on a USB disk. Connect it to the USB port on your IPTV-DMG and browse for the update file, then manually update the firmware. -
Page 12: Chapter 3 - Usb Host
Chapter 3 – USB Host The IPTV-DMG has two USB connectors for external USB devices. You can connect up to two USB mass storage devices with digital media content to display on your TV. For IPTV- DMG to recognise the external USB device it has to be mass storage class, and the file format must be FAT12, FAT16 or FAT32. -
Page 13: Chapter 4 - Network Mode
To use this mode, you need to install the included “MyHome” application or Windows Media Connect on your computer. Connect the computer to the same network as your IPTV-DMG, start the application and you will be able to access your shared files from the computer directly on your IPTV-DMG. -
Page 14: Online Premium Content
Online Premium Content In this mode, you can access content on the internet directly from your IPTV-DMG, without the need to turn on any computer. To use this function, make sure your gateway and DNS server are setup properly and that you have access to the internet. -
Page 15: Chapter 5 - Appendix
Chapter 5 - Appendix For RMA and other questions, please contact your vendor or check out their online support area! Specifications Internal Memory N/A (data is accessed via USB or Ethernet) Playback Formats Video: Subtitles: SUB (MicroDVD format), SRT (SubRIP format), SMI (SAMI format), SSA (Sub Station Alpha format), Embedded Multiple Subtitle support Audio:... -
Page 16: Faq
A: Make sure the cables are connected firmly and the TV is set to the proper (A/V) channel. Turn on the IPTV-DMG and wait for about 10-20 seconds. If you still do not see anything, press the TV Mode button on your remote control to change the video output until you see the screen. -
Page 17: Remote Control Key Functions
Remote Control Key Functions Item Button Power CLEAR SELECT TV MODE SETUP MUTE VOLUME DOWN LEFT RIGHT ENTER RETURN MENU PREV PLAY NEXT REPEAT STOP INFO SLOW REV PAUSE/STEP SLOW FWD EDIT/PROGRAM TITLE SUBTITLE AUDIO SHUFFLE ANGLE/ROTATE SEARCH ZOOM Browser Mode Power OFF 1 - .:/@ 2 - ABC... -
Page 18: About This Manual
About this Manual This manual covers both the wired and wireless option for the IPTV-DMG. Images and descriptions may therefore slightly vary between this manual and the actual product you have. © Copyright 2006 by GMG Inc. all Rights Reserved The information contained in this manual is believed to be accurate and reliable.
