intelektron BC9000R Installation Manual

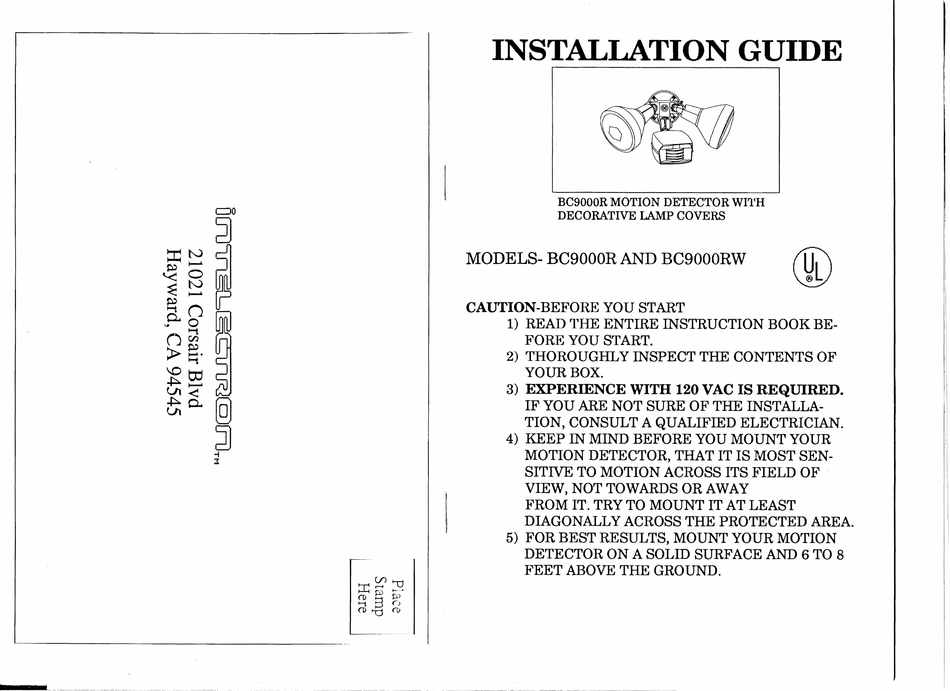

INSTALLATION GUIDE
~~
~o
~N
~ ~
2;n
0.. 0
~
""'t
ng;
>
:::r
\Oro
~-­
Vl<
In)
~
0..
lQJ
~
-I
:I

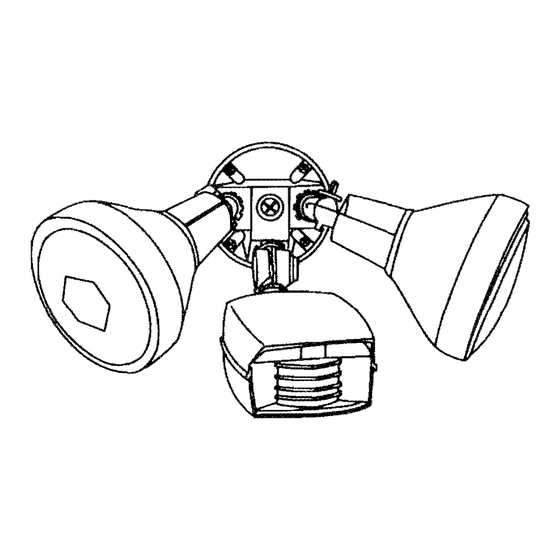

BC9000R MOTION DETECTOR WI'ltH
DECORATIVE LAMP COVERS
MODELS- BC9000R AND BC9000RW
®
CAUTION-BEFORE YOU START
1) READ THE ENTIRE INSTRUCTION BOOK BE­
FORE YOU START.
2) THOROUGHLY INSPECT THE CONTENTS OF
YOUR BOX.
3)
EXPERIENCE WITH 120 VAC IS REQUIRED.
IF YOU ARE NOT SURE OF THE INSTALLA­
TION, CONSULT A QUALIFIED ELECTRICIAN.
4) KEEP IN MIND BEFORE YOU MOUNT YOUR
MOTION DETECTOR, THAT IT IS MOST SEN­
SITIVE TO MOTION ACROSS ITS FIELD OF
VIEW, NOT TOWARDS OR AWAY
FROM IT. TRY TO MOUNT IT AT LEAST
DIAGONALLY ACROSS THE PROTECTED AREA.
5) FOR BEST RESULTS, MOUNT YOUR MOTION
DETECTOR ON A SOLID SURFACE AND 6 TO 8
FEET ABOVE THE GROUND.
