Summary of Contents for Zetronix Lark zShades-2K
-
Page 1: Warning

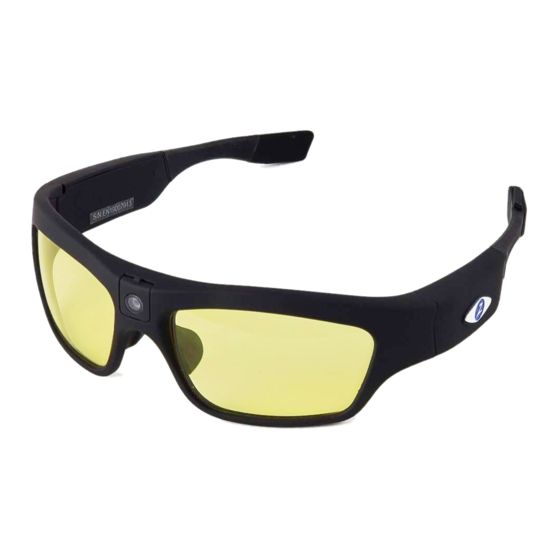

zShades-2K USER MANUAL... -
Page 2: Table Of Contents
WARNING: Note: please note the left side of the frame will become hot during long video recordings. This is a normal occurance. User Guide Contents WARNING:………………………………..........1 Pr o du c t Fe a t u r e s a n d A dv a n t a g e s ………………….……....3 ... -
Page 3: Product Features And Advantages
Product Features and Advantages Features: 1. Patent Unique Design •Patent Unique Design, makes the product lightweight and comfortable to wear, suitable for long time wearing •Slim & elegant design to fit human body characteristics. •Higher curve and flexible design suits different faces - smaller and bigger. •With unique cooling system design for perfect protection. - Page 4 4. Type-C USB on The Frame Peripheral Design • The product structure design is reasonable: Type-C is placed at the end of the spectacle legs, which can be connected for charging and does not affect the comfort of wearing; • The Type-C USB on frame peripheral design is so easy and convenient for charging 5.
-
Page 5: What's In The Box
10. With vibrating alerts function to prompt you when “recording” “off” “out of memory” “low battery”... at any time. 11. Easily external micro-SD card memory removable or interchangeable, support 2GB~128GB 12. Quality Low temperature battery up to -10 degrees perfect for cold environments, you will never worry about cold days. -
Page 6: Ba S I C Ope R A T I O N
F. Red LED (LED Charging Light) G. Yellow LED (LED WiFi Light) H. Blue LED (1080P Recording Light) I. Green LED (2K Recording Light) PS: Blue and Green LED ( 720P recording Light) Basic Operation 1. Turning on to standby mode, short press again to start video recording To turn on the video-glasses, simply press the ON/OFF button for 1 second. -
Page 7: Auto Shut-Off, Reset
in standby mode, you can continue to take photos (clicking the ON/ OFF button 2 times quickly), or click ON/OFF button 1 time to go back to recording mode (pulse vibrates twice). 5. Toggling 2k, 1080P and 720P recordings Factory default is 2K recording mode (Green LED). To toggle, press the Wi-Fi button for 2 seconds to change the recording mode. -
Page 8: Usb Storage Mode
Note: In order to avoid damaging the glasses, please make sure to switch to the “power off” mode before removing the SD card. Attention: This is real hardware decoding item, full HD 1080P, the data transmission is high. For more quality video, •... - Page 9 see below) To insert the lens, insert the lens into the glasses frame starting with area 1, then 2, and 3; then firmly push down on area 4 until you feel the lens click into place. (See below) How to change the Lenses video link, FYI: https://youtu.be/gEWgAd1l9go Power Supply and Low Battery Hinting Note: This device can record during wall charging or power bank charging.
- Page 10 Network “LARK CamHD” (the default WiFi password is 12345678). Wait until your iOS/Android device is connected (the yellow light stays 2. Camera APP overview, App Features & Settings Before use this function, you have to download APP from APP store by searching keywords “LARK CamHD”, please download the latest Android version App from the app market.
-
Page 11: Pow Er Supply And Less Than 10% Low Batter Y Hinting
• Local media (SD Card Media) 1. Select files by taping on the icons, to select multiple files, touch and hold for about a second. 2. Tap Download icon This folder displays the videos and photos stored on the SD card of the glasses. -
Page 12: Led Indicator
Setting Menu in APP for reference LED Indicator No. Operation Mode LED Indicator Status The green/blue LED is on and the device enters into the initialization status and standby mode, the vibrating buzzes once and the green LED keeps on ( the default is 2K, green LED) , press shortly again to start the vibrating buzzes twice... -
Page 13: Technical Specifications
Both Blue and Green LED blinks very fast and vibrates continuously for 3 seconds, then Memory full shuts off. Power on Wi-Fi: Yellow LED flashes, the vibrates once. Wi-Fi Power off Wi-Fi: Yellow LED off. Wi-Fi working: Yellow LED stays on. Blue and Green LED on together, the vibrates Taking Photos once... -
Page 14: Troubleshooting
Troubleshooting Symptom Possible reason Solution Flat battery Recharge battery Failing to start Device jam Reset, then start again Low battery Recharge battery Remove files from memory Memory full Auto shut-off or change to a new memory Low battery Recharge battery Memory full Delete unwanted files Power auto off after... -
Page 15: A N N O U N C E M E N
for this product. Do not dispose with household waste. Battery DO NOT attempt to remove the battery. (Note: Battery disposal must be in accordance with local environmental regulations. See "RECYCLING" above.) If the recording function has not been used for lengthy period, charge it fully before using.
