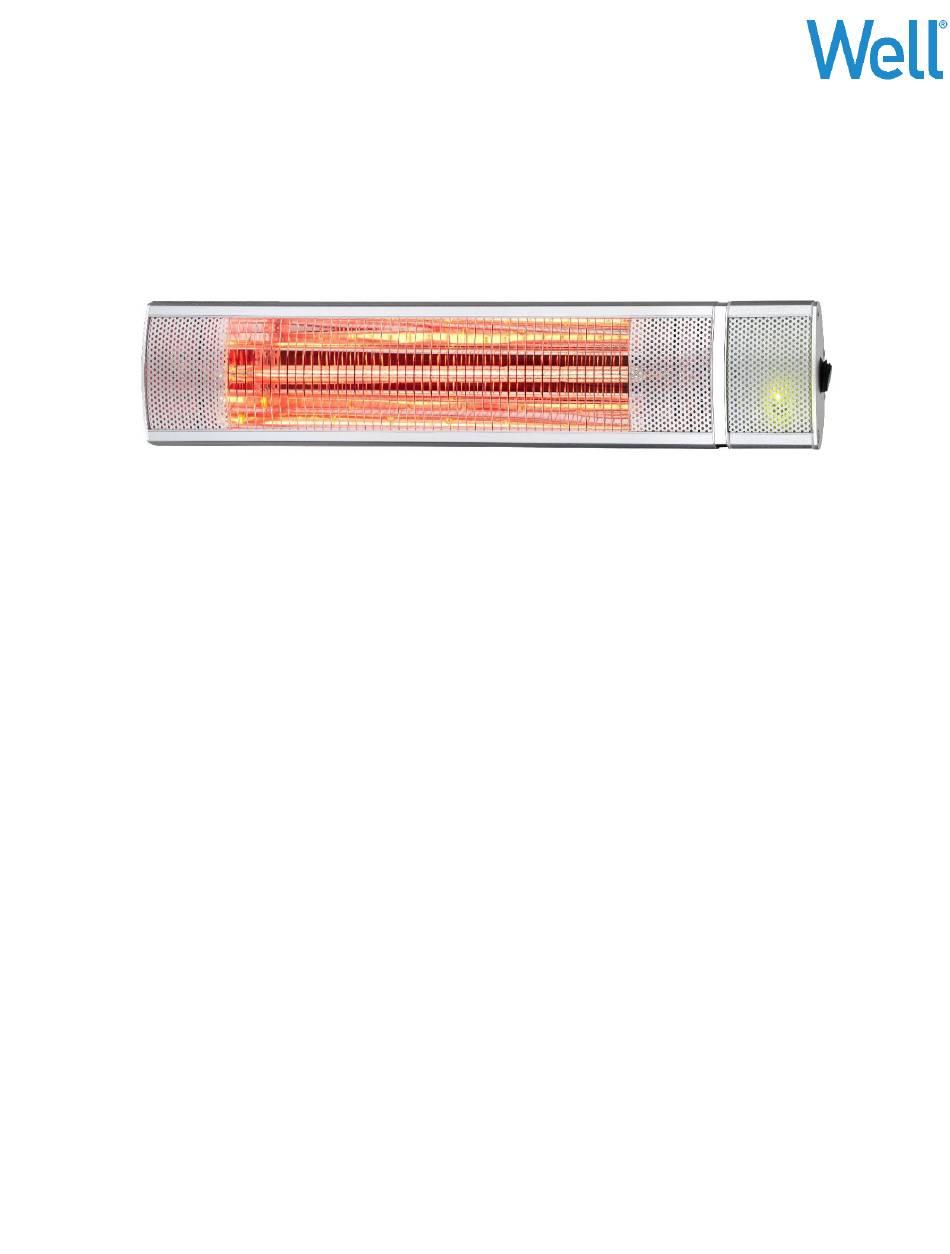

- Page 1 INSTRUCTION MANUAL ELECTRIC PATIO HEATER Thank you for choosing WELL. Please read carefully the following instructions and keep them within reach. Reorder No: HTR-IR-PW2000-WL...
- Page 2 SAFETY WARNINGS • Please follow all the safety precautions listed below for safety and to reduce the risk of injury or electrical shock. • Read this Instruction Manual carefully to maximize this appliance’s performance and keep for future reference. • Always ensure that your power supply voltage matches this appliance’s rating label.
- Page 3 to persons. • The use of attachments on the heater is not recommended. • Warning: This heater does not equipped with a device to control the room temperature. Do not use this heater in small rooms when occupied by persons not capable of leaving a room on their own, unless constant supervision is provided.
- Page 4 Expansion screws specs ø8*35 Step 2: Fix fixed bracket on the wall, as arrow points. Hole diameter 8 mm Screws 3x32 Expansion screws Step 3: Installation of one adjusting brackets, make sure lock brackets tight by Butterfly hand screw. Then use hexagon key wrench to adjust the Hexagon nut according to installation design Angle Butterfly nut...
- Page 5 INSTALLATION DIAGRAM One fixed bracket THE REMOTE CONTROL MAINTENANCE AND CLEANING Maintenance Attention! Careful and regular maintenance of Infrared Heater is required to attain a long and efficient operation of your appliance. Check the cleanliness of the Reflector and IR-Filament at least once a month. If necessary, apply cleaning and maintenance instructions.
- Page 6 SPECIFICATIONS Voltage: 230V 50Hz Maximum power: 2000W 3 heating power: 750/1500/2000W Tungsten wire gold-plated heating pipe Adjustable angle: 0-45° Infrared remote control Power cord length: 1.8m Aluminum alloy housing Decorative mesh IP rating: IP55 Wall mounted Waste electrical and electronic equipment are a special waste category, collection, storage, transport, treatment and recycling are important because they can avoid environmental pollution and are harmful to health.
