Rok 150-02-50222 Instruction Manual

Direct drive oil lubricated piston air compressor
Hide thumbs

Advertisement

Table of Contents

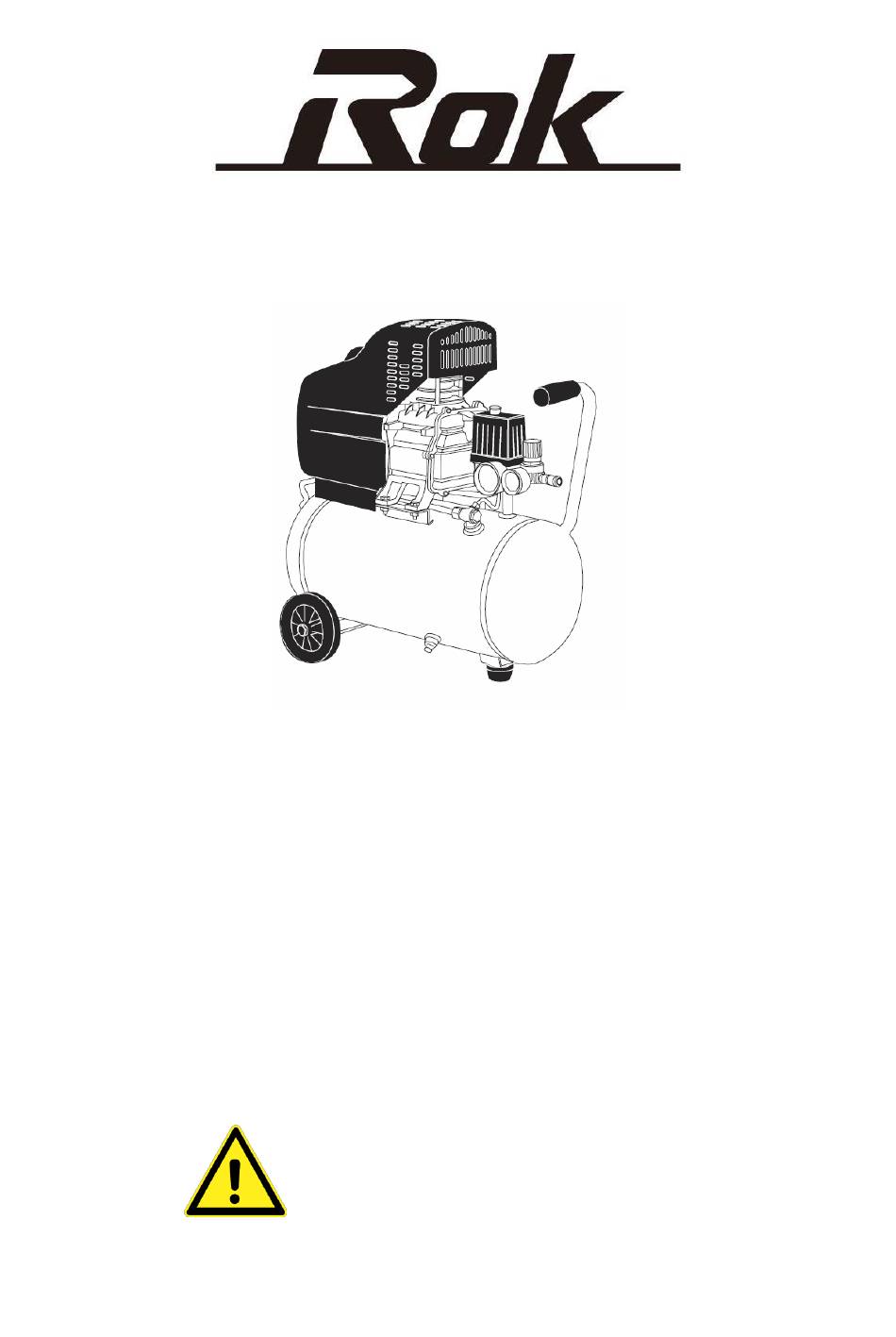

150-02-50222
24 LITRE 1.5HP DIRECT DRIVE OIL LUBRICATED PISTON AIR COMPRESSOR
150-02-50243
40 LITRE 2.0HP DIRECT DRIVE OIL LUBRICATED PISTON AIR COMPRESSOR
150-02-50474
40 LITRE 2.5HP DIRECT DRIVE OIL LUBRICATED PISTON AIR COMPRESSOR
INSTRUCTION MANUAL
Warning:
For your personal safety,
READ and UNDERSTAND before using.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 150-02-50222 and is the answer not in the manual?

Questions and answers

Summary of Contents for Rok 150-02-50222

  • Page 1 150-02-50222 24 LITRE 1.5HP DIRECT DRIVE OIL LUBRICATED PISTON AIR COMPRESSOR 150-02-50243 40 LITRE 2.0HP DIRECT DRIVE OIL LUBRICATED PISTON AIR COMPRESSOR 150-02-50474 40 LITRE 2.5HP DIRECT DRIVE OIL LUBRICATED PISTON AIR COMPRESSOR INSTRUCTION MANUAL Warning: For your personal safety, READ and UNDERSTAND before using.
  • Page 2 ROK Power Tools warrants that this compressor will be free from manufacturing faults or defects for 12 months from the date of purchase, providing original purchase receipt is kept and shown when needed and is subject to the terms and conditions below.
  • Page 3 persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. Beware of Children and Pets Children and pets should be kept out of the work area.
  • Page 4 Maintain Your Air Compressor with Care Follow the instructions for lubricating and changing accessories. Check the air compressor power cord periodically and if damaged have it replaced by an authorised service facility. Keep handles clean, dry and free from oil and grease. Ensure that ventilation slots are kept clean and free from dust at all times.
  • Page 5 Eye Protection The use of safety goggles is highly recommended (normal glasses are not sufficient for eye protection) when using an air compressor. Prescription glasses do not have safety lenses. Footwear Where there is the risk of heavy objects or if there is a risk of slipping on wet or slippery floors, suitable non–slip safety footwear should be worn.

  • Page 6: Specifications

    This air compressor is not to be used to for filling scuba or oxygen air bottles or tanks.  Always follow the instructions relating to the tools attached to this air compressor. SPECIFICATIONS Model 150-02-50222 150-02-50243 150-02-50474 Tank Capacity Voltage 230V/50HZ...

  • Page 7: General View And Main Components

    AIR COMPRESSOR CIRCUIT DIAGRAM GENERAL VIEW AND MAIN COMPONENTS 1. Main Compressor 2. Pressure switch 3. Outlet Valve 4. Pressure Regulator 5. Pressure Gauge 6. Non Return Value 7. Drain Cock 8. Wheel 9. Discharge Pipe 10. Air Tank 11. Safety Valve 12.
  • Page 8 ASSEMBLY This air compressor requires some minor assemble before it can be used. Locate the accessory pack. It should contain: Wheels and axle set Rubber stopper Air Filter Oil Breather plug A bottle of oil • Fit the wheels to the unit using the axle kit provided and insert the rubber stopper into the spigot on the bottom of the tank.

  • Page 9: Oil Warning

    Oil Warning: This unit is shipped with oil in the compressor pump. Oil must be added to the unit prior to operating. • Usually check the oil level in the pump. Please fill the oil from the oil breather hole until the oil reaches the red mark on the sight glass •...

  • Page 10: Initial Start-Up

    INITIAL STARTUP • Ensure the unit is stable in a well-ventilated dry position. • Ensure that the drain valve is closed and all air outlets are closed. Connect the power lead to the mains. • Start the compressor by pulling on the red knob. •...

  • Page 11: Operation

    OPERATION The pressure in the tank is controlled by the action of the pressure switch located under the pressure switch cover When the set maximum pressure is reached the pressure switch activates and the motor is turned off. The pressure will then decrease as the air is used until the set minimum is reached after which the pressure switch turns the motor on again.
  • Page 12 MAINTENANCE Warning: Before maintenance operation, stop the air compressor, disconnect the unit from the mains supply and discharge all air in the air tank. Daily 1. Check oil level before each use. 2. Drain the condensation from the air receiver. 3.

  • Page 13: Troubles And Remedies

    TROUBLES AND REMEDIES Trouble Possible causes Remedies ⑴ Fault in line, or voltage insufficient ⑴ Check the line ⑵ Power wire too thin or too long ⑵ Replace the wire ⑶ Fault in pressure switch ⑶ Repair or replace ⑷ Fault in motor ⑷...
  • Page 14 point of purchase being satisfied that it is a genuine claim within the time limits prescribed above, then the retailer will contact the wholesaler for review and determination as to whether a full refund is to be provided in relation to the product or whether the product is to be repaired and returned. The wholesaler reserves the right to reject the guarantee claim if it can be proved that the goods have not been used in accordance with their intended purpose or in accordance with the manual.

This manual is also suitable for:

150-02-50243150-02-50474
