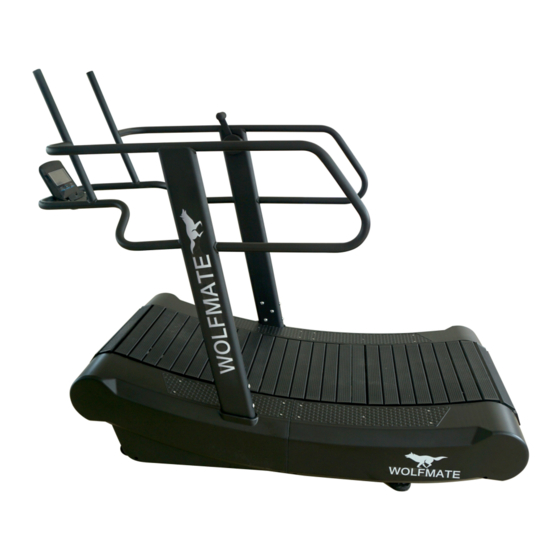

Y600 Series Self-powered Treadmill Manual
Important note
Please keep these instructions
• When using a treadmill, be sure to follow basic precautions, including
the following points: Read all instructions before using this treadmill.
It is the owner's responsibility to ensure that all users of this treadmill
are notified of all warnings and precautions regarding this equipment.
1
Advertisement
Table of Contents
Summary of Contents for Decora Y600 Series
- Page 1 Y600 Series Self-powered Treadmill Manual Important note Please keep these instructions • When using a treadmill, be sure to follow basic precautions, including the following points: Read all instructions before using this treadmill. It is the owner's responsibility to ensure that all users of this treadmill...
- Page 2 • The ultimate commercial environmental use of this product. To ensure your safety and protection, please read all instructions before use. warning！ To reduce the risk of personal injury: • Incorrect or excessive exercise may cause injury. If you experience any discomfort, including but not limited to chest pain, nausea, dizziness, or shortness of breath, stop exercising immediately and consult a physician before continuing.
-
Page 3: Assembly Steps
This equipment is not suitable for persons with poor physical, • perceptual or mental function or lack of experience and the knowledge; if it is to be used, it must be carried out under the supervision of others, and the use of the equipment must be instructed by those responsible for their personal safety. - Page 4 Unpack Unpack where you plan to use this equipment. Place the wooden box on a flat surface. It is recommended that you place a protective mat on the floor. Never open the box with the box on its side. Important note For each assembly step, make sure that all nuts and bolts are installed in the correct position and that they are partially locked.
- Page 5 technical support. Installation tools: □ 5mm Allen wrench □ 8mm Allen wrench □ 10mm Allen wrench □ 14mm open end wrench Included parts: □ 1 base rack □ 1 left armrest set □ 1 right armrest set □ 1 toboggan □...
- Page 6 B φ8 flat washer /4 C M10 Hex Socket Head Cap Screws /10 D φ10 flat washer /10 Assembly is complete Before the starting Treadmill position Place the treadmill on a flat, stable surface that is away from direct sunlight. Strong UV rays can cause plastic to fade. Place the treadmill in a cool, low-humidity area.
- Page 7 wide as the treadmill and at least 2 meters in length. This area must be free of obstacles and provide a clear path for users to leave the machine. For the convenience of up and down, there should be at least 60 cm of up and down space on both sides of the treadmill, so that users can get up and down from any side.
- Page 8 moving and seek assistance as needed. Tightening and guiding of walking belt After placing the treadmill in the use position, you must check the tightness and center alignment of the walking belt. After the first two hours of use, it may be necessary to adjust the walking belt. Temperature, humidity, and use may cause the walking belt to stretch to varying degrees.
- Page 9 miles) and observe the position of the walking belt. If the walking belt moves to the right, turn the right bolt ¼ turn clockwise to tighten it, and loosen the left bolt ¼ turn. If the walking belt moves to the left, turn the left bolt ¼...
-
Page 10: Correct Usage
Note! Do not use a treadmill while performing calibration. Adjustment of equipment level Correct adjustment of the support angle is extremely important for the proper operation of the equipment. If the treadmill is unbalanced, it may cause misalignment of the running belt or other problems. After placing the treadmill in the intended use position, raise or lower one or two adjustment levers located behind the bottom of the rack. -
Page 11: Maintenance
you can exercise leg coordination and agility very well, and burn excess fat more effectively. For resistance from the treadmill in leg resistance training mode. When using this brake, resistance is immediately applied to the walking belt. Just grab the handles on the front or sides and jump your feet on the decorative trims on both sides to get out of the machine. -
Page 12: Specifications
contact your dealer and ask for re-posting. 4. Equipment maintenance: Preventive maintenance is to keep equipment functioning normally and safely. Please check the equipment regularly. 5. Confirm that personnel responsible for adjusting or maintaining / repairing equipment are qualified. The dealer will provide repair and maintenance training on request. - Page 13 Use clean water and mild soap, or other solutions (the detergent should not every day contain alcohol or ammonia) to clean the entire machine.
