IRΕNΕ BASIC

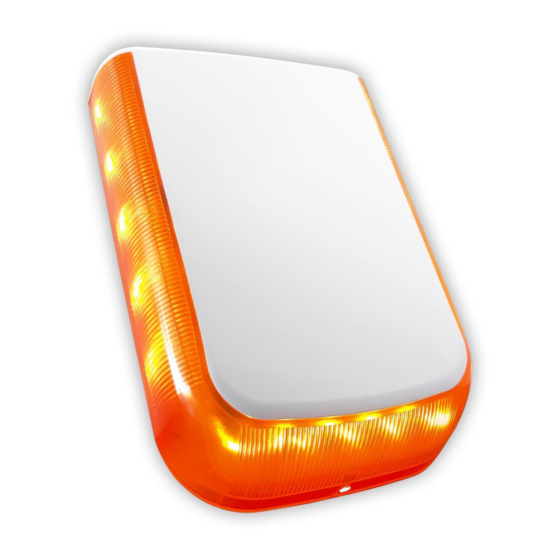

AUTONOMOUS OUTDOOR SIREN
FEATURES
Autonomous and self-contained outdoor electronic siren equipped with fifteen built-in parametrically
placed high power SMD LEDs, which correspond to a 300-degree viewing angle, so that the siren is visible
from any viewing angle.
Available in a wide range of lenses and front cover colors for easy combination with any exterior shade of
the building.
The siren is made of a combination of durable polycarbonate and ABS to minimize weather vulnerability.
Internally, the electronic circuitry is protected by an extra plastic cover. The TAMPER protection covers the
outer lid and prevents the siren's removal from the wall. It has an internal level, that makes the correct
mounting of the siren easier. The speaker is made of a reinforced magnet and the output reaches up to
125dB / 1m. A special socket 12V buzzer for extra audio updates (eg arm-disarm) is available.
Advertisement
Table of Contents
Summary of Contents for Absolon IRENE BASIC
- Page 1 IRΕNΕ BASIC AUTONOMOUS OUTDOOR SIREN FEATURES Autonomous and self-contained outdoor electronic siren equipped with fifteen built-in parametrically placed high power SMD LEDs, which correspond to a 300-degree viewing angle, so that the siren is visible from any viewing angle. Available in a wide range of lenses and front cover colors for easy combination with any exterior shade of the building.
- Page 2 GENERAL FEATURES To make the installation process easier, it is not necessary to connect the power supply for the alarm panel directly (in cases that the siren is placed before the panel. 5 different sound types 3 different sound volumes (high / progressively rising / low) ...
- Page 3 INDEX 12V-/+ Power supply of the siren from the panel Primary input for the activation of the sounder and central LEDs (BELL) from the panel (the mode of activation is dependent on DIP SWITCH 1 & DIP SWITCH 2) FIRE Secondary input for the activation of the sounder and central LEDs (FIRE) from the panel (the mode of activation is dependent on DIP SWITCH 1 &...
- Page 4 TRIGGER, TAMPER, DC ALARM MODE 1. By combining Dip switch 1 & 2 we can select the type of trigger we want Dip switch 1: when is ON, it selects negative voltage activation. Dip switch 1: when is OFF, it selects positive voltage activation. ...
- Page 5 8) Once you find the combination you want, press the MENU button and go into the programming of the side LEDS. (left right). 9) LED No3 (VERTICAL LED) lights up immediately. 10) Press the SELECT button gradually and choose between 5 different configurations of the side LEDs. (left &...
