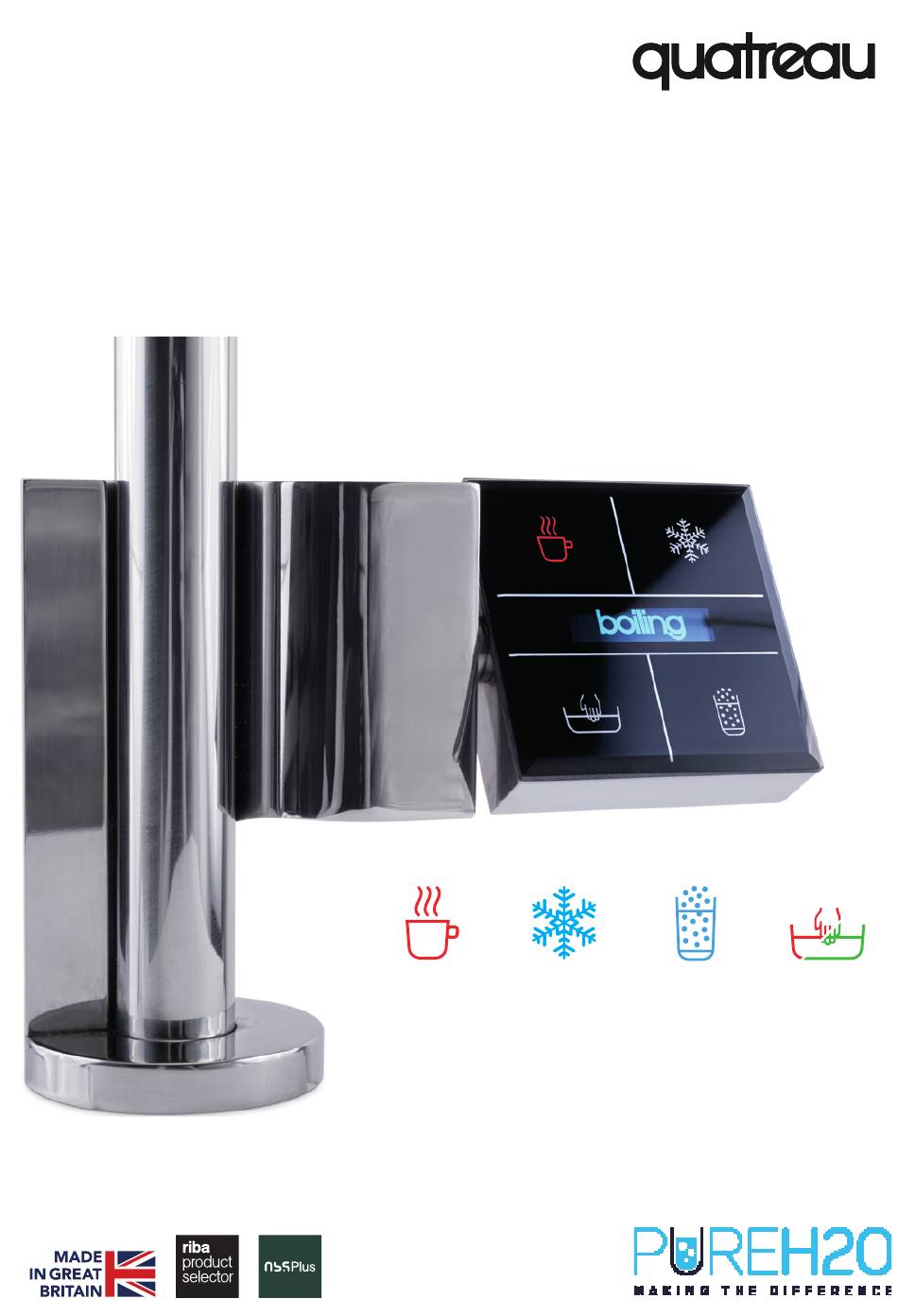

- Page 1 INSTALLATION, Touch COMMISSIONING AND USER GUIDE BOILING CHILLED SPARKLING HOT & COLD...
- Page 2 ———————————————————— CONTENTS INSTALLATION, COMMISSIONING AND USER GUIDE ———————————————————— PRE-INSTALLATION CHECK LIST SECTION ONE INSTALLATION • UNPACKING YOUR EQUIPMENT • INSTALLING THE TAP • INSTALLING THE QT553-B (boiler control module) • INSTALLING THE C20 CS20 C50 & CS50 (Chiller or Chiller Carbonator range) •...
- Page 3 ———————————————————— ———————————--------————————— QUATREAU TOUCH PRE-INSTALLATION CHECK LIST ———————————————————— ———————————--------————————— 1. Correct sized hole drilled in worktop i.e. 40mm 2. Mains Cold Water: 1/2” lever ball valve, locatied top front right side wall of cupboard, set back 15 cm from door, 50 cm up from base. 3.
-
Page 4: Section One Unpacking Your Equipment
———————————————————— opposite end. This will ensure you have SECTION ONE control of the weight when you lift. UNPACKING YOUR EQUIPMENT Remove from box and place in on the ———————————————————— floor. Your systems has been carefully ———————————————————— packaged. If the box is damaged upon WARNING: THE EDGES ARE delivery you should photograph the HARD STAINLESS STEEL AND... - Page 5 The Boiler control units and Chiller Before you start cutting ensure that you Carbonator modules must sit underneath have set up a jig or a template device to the tap or in an adjacent cupboard to the prevent the drill bit moving when you start tap location.
- Page 6 ———————————————————— The rear manifold stem is the mains QUATREAU TOUCH unfiltered water. This connects to the INSTALLING YOUR TAP left hand stem of the tap as you look ———————————————————— at it inside the cupboard. Once the point of installation is ready to The purified outlet is the front most recieve Quatreau and a 40mm hole has stem from the manifold on top of the...
- Page 7 ———————————————————— connect the 3/8” reducing T into the same 3/8” pipe at the closest point to isolator DO NOT TURN THE POWER ON and run a length of 1/4” pipe to the pure TO YOUR SYSTEM UNTIL YOU inlet on the right hand side of the QT553-B. HAVE READ THROUGH...
- Page 8 deact switch prior to connection. You will The Quatreau chiller carbonator is sited use several litres of water to commission next to the 553-B (control unit). Usually this the Quatreau system so it is sensible to will be to the left of the 553-B. commission with mains water first then convert to pure once the system has been Using the 1/4”...
- Page 9 ———————————————————— Note: SYSTEM DETAILS: Requires 40mm diameter hole in counter QUATREAU TOUCH top positioned minimum 50mm back from the edge of the sink. I N S TA L L AT I O N...
- Page 10 ———————————————————— INSTALLATION NOTE: PIPEWORK REQUIREMENTS An appproved thermostatic mixing valve Quatreau Touch delivers unfiltered hot must be fitted. and cold mains water for washing. The hot supply comes directly from the thermostatic valve installed on the hot water services of the building. Typically in the same cupboard where the equipment will be sited.
- Page 11 POWER REQUIREMENTS It is recommended that a trickle vent is 2 x 13A sockets. cut into the top of the cupboard in which the Quatreau 553-B and Quatreau Chiller/ Note: Chiller Carbonator C20/CS20/C50/CS50 For new kitchens a separate fused feed is sits.
- Page 12 10 minutes 10 minutes MAX WORKING PRESSURE 3Bar 3Bar CO2 CAPACITY 100ltrs carbonated water INSTALLATION DETAIL BY AUTHORISED PURE H2O TECHNICIAN ONLY INSTALLATION DATE INSTALLATION NOTES CONTACT CUSTOMER SERVICE 01483 617000 customerservice@pureh2o.co.uk I N S TA L L AT I O N...
-
Page 13: Commissioning Sequence
———————————————————— mains hot elbow inlet on the side of the QT-553B. QT-553B Connect the other braided hose to COMMISSIONING SEQUENCE the cold mains water supply and fit to ———————————————————— the cold mains 3/8” inlet elbow on the DO NOT POWER THE SYSTEM UP side of the QT-553B. - Page 14 ———————————————————— SECTION F: Chiller Carbonator C20/CS20/C50/CS50 DO NOT POWER THE SYSTEM UP YET, READ THE COMMISSIONING Now that all tanks are full of water you SEQUENCES IN SECTION D FIRST can add the gas bottle to the front of ———————————————————— the QT-553B.
- Page 15 SECTION G: Conversion to Pureh2o Once commissioned remove the mains water supply to the QT-553B “pure inlet” and reconnect using a supply of purified water. Minimum 2Bar pressure requirements to max 3Bar. ———————————————————— SECTION H: Optimum setting for mains Hot & Cold water Finally, adjust the flow rate of the mains hot and cold down to a point where it...
- Page 16 ———————————————————— QUATREAU TOUCH Œ BOILING WATER WITH TOUCH SAFETY SEQUENCE For safety the Quatreau Touch system features a three touch sequence to activate the boiling water function. The numbers on each control quadrant in the diagram to the right indicate the three areas that must be pressed within three seconds to activate.
- Page 17 ———————————————————— Œ QUATREAU TOUCH CHILLED WATER To activate chilled water press the top right control quadrant (snowflake icon) once. When the tap is releasing chilled water the top right snowflake will illuminate white and the central screen will display ‘chilled’. To turn this function off press the top right control quadrant (snowflake icon) once.
- Page 18 ———————————————————— QUATREAU TOUCH SPARKLING FILTERED WATER To activate sparkling filtered water press the bottom right control quadrant (glass icon) once. When the tap is releasing sparkling water the bottom right glass icon will illuminate blue and the central screen will display Œ...
- Page 19 ———————————————————— QUATREAU TOUCH HAND HOT AND COLD MAINS WATER HAND HOT MAINS WATER To activate press once the bottom left control quadrant (sink icon) once. To turn off press anywhere on the keypad. Note: Œ During commissioning it is possible to adjust the temperature to suit personal preference.
- Page 20 ———————————————————— QUATREAU TOUCH QUATREAU CS (CHILLER CARBONATOR) The separate chiller/carbonator needs to be sited with adequate ventilation to function correctly. QUATREAU CS (CHILLER CARBONATOR) Models 20ltr/hr chiller CS20 20ltr/hr chiller carbonator 50ltr/hr chiller CS50 50ltr/hr chiller carbonator Temperature dial U S E R G U I D E...
- Page 21 ———————————————————— QUATREAU TOUCH To decrease the level of carbonation FUNCTIONS: turn the regulator by a half turn in an anti SPARKLING FILTERED WATER clockwise direction. ADJUSTING THE CARBONATION OF THE SPARKLING WATER Between adjustments you must run off The CO2 is controlled via the gas canister several glasses of sparkling water to regulator on the front of the unit (see see the effects of the adjustment.
- Page 22 ———————————————————— TAP FUNCTIONS: Note: SPARKLING FILTERED WATER While removing a canister it is important to CHANGING THE CO2 CANISTER support its weight to avoid the canister When the sparkling water tastes flat it is dropping onto the floor. necessary to change the gas canister. If gas appears to be escaping after The integral CO2 gas canister is sited on installation, remove the cannister and call...
- Page 23 Can I adjust the flow of boiling The boiling flow can be controlled by the PRV water located on the side of the Quatreau 553-B or CS. To adjust flow simply pull the knob out to unlock (you will hear/feel it click).
- Page 24 IMPORTANT INFORMATION Quatreau 553-B Quatreau 553-BCS TECHNICAL DETAIL POWER REQUIREMENTS 1 x 13A socket 2 x 13amp sockets (RCD Protected) VOLTAGE 230V 230V / 230V WATTAGE Max consumption 2.56KW 130W / 296W Standby consumption 130W / 100W START UP TIME...
- Page 25 INSTALLATION DETAIL BY AUTHORISED PURE H2O TECHNICIAN ONLY INSTALLATION DATE INSTALLATION NOTES CONTACT CUSTOMER SERVICE 01483 617000 customerservice@pureh2o.co.uk U S E R G U I D E...
- Page 26 The Pure H2O Company Ltd, Unit 21 Boundary Business Centre, Boundary Lane, Woking, Surrey GU21 5DH United Kingdom www.quatreau.com QT 06/19 Quatreau is a registered trademark of the Pure H2O Company Limited. Copyright © 2019 The Pure H2O Company Limited. All rights reserved.
