AeroFlow AF72-6050 Installation Manual

Transmission oil cooler kit

BEFORE PROCEEDING WITH INSTALLATION PLEASE READ INSTRUCTIONS CAREFULLY. THIS PRODUCT REQUIRES DETAILED

KNOWLEDGE OF AUTOMOTIVE SYSTEMS. WE RECOMMEND THAT THIS INSTALLATION BE CARRIED OUT BY A QUALIFIED

AUTOMOTIVE TECHNICIAN.

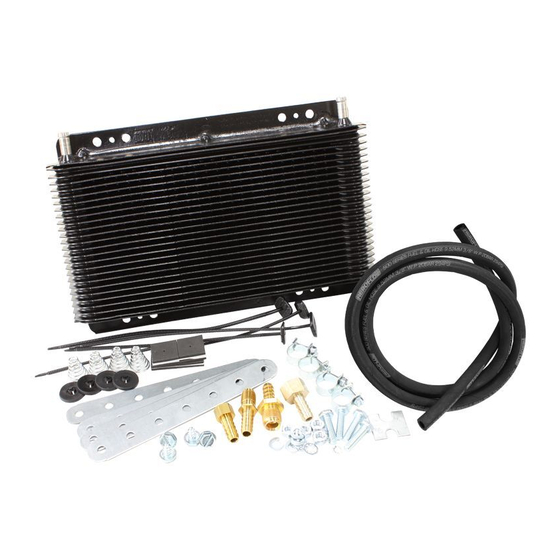

Item list included in this kit:

1 x Oil Cooler

1 x 1.6 metre length of 500 Series Aeroflow Performance Push Lock Hose

4 x EFI hose clamps

4 x Mounting rods

4 x Mounting rod locking tabs

8 x Adhesive cushion pads

4 x Self tappet mounting screws with locking washers

4 x 1/4" UNC mounting bolts with spring washers, flat washers and nuts

4 x Universal mounting brackets (Length = 175mm, Width = 23mm)

1 x Brass 5/8"-18 female invented seat to 3/8" barb

1 x Brass 5/8"-18 male invented seat to 3/8" barb

1 x Brass 1/2"-20 female invented seat to 3/8" barb

1 x Brass 1/2"-20 male invented seat to 3/8" barb

1 x Hose size guide tool

Phone: (02) 8825 1979 Website:

40 Huntingwood Drive Huntingwood NSW 2148

Phone: (02) 8825 1999 Website:

AEROFLOW PERFORMANCE

TRANSMISSION OIL COOLER KIT

WARNING!

For more information or technical enquires

Contact: Aeroflow Performance on

www.aeroflowperformance.com

1 |

P a g e

Table of Contents

Do you have a question about the AF72-6050 and is the answer not in the manual?

Page 1 AUTOMOTIVE TECHNICIAN. Item list included in this kit: 1 x Oil Cooler 1 x 1.6 metre length of 500 Series Aeroflow Performance Push Lock Hose 4 x EFI hose clamps 4 x Mounting rods 4 x Mounting rod locking tabs...
Page 2 This oil cooler is a stack plate cooler and features 22 rows that are fully brazed on all contact surfaces inside and outside. Furthermore, they have also had a brazed seam that can withstand vibrations and pulsations in all types of applications. This Aeroflow Performance cooler will help protect your transmission and transmission oil from overheating but it cannot correct a faulty or worn transmission.
Page 3 Add oil as necessary, but do not overfill. Restart the engine and allow the vehicle to idle for 10 minutes Recheck for leaks. For more information or technical enquires Contact: Aeroflow Performance on Phone: (02) 8825 1979 Website: www.aeroflowperformance.com P a g e...
