INSTRUCTION MANUAL
Orion
Starshoot
®
Replacement Acrylic Dome
Required tools (not supplied)
• Tamper proof Allen key (supplied with Starshoot AllSky Camera)
• Small Philips head screwdriver
1. Installation of Dome to AllSky Camera
In order to install a new dome to the Orion Starshoot AllSky Camera (SASC) the
dome lid will first need to be removed. Use the tamper proof Allen key that came
with your SASC to unscrew each of the 4 tamper proof screws located on the top lid
of the SASC.
Be careful not to hit the acrylic dome with the Allen key, screws or other hard
objects.
Also be careful not to lose the non standard tamper proof Allen key that came sup-
plied with your SASC. (Replacement Allen keys sold separately by Orion)
Providing Exceptional Consumer Optical Products Since 1975
#5857
Figure 1.
OrionTelescopes.com
Customer Support (800) 676-1343
E-mail: support@telescope.com
Corporate Offices (831) 763-7000
89 Hangar Way, Watsonville, CA 95076
© 2011 Orion Telescopes & Binoculars
AllSky Camera
™

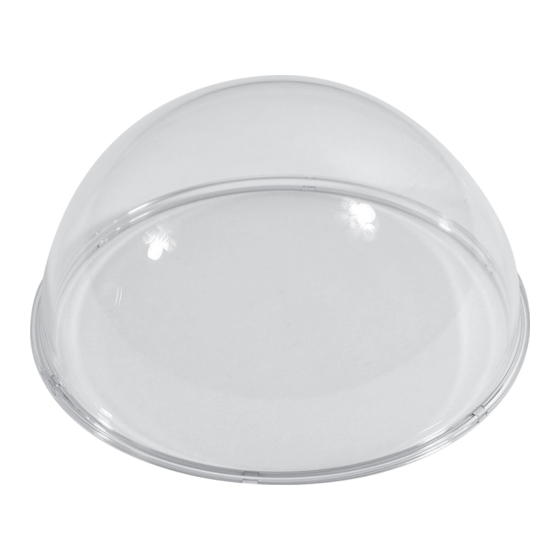

The dome.
