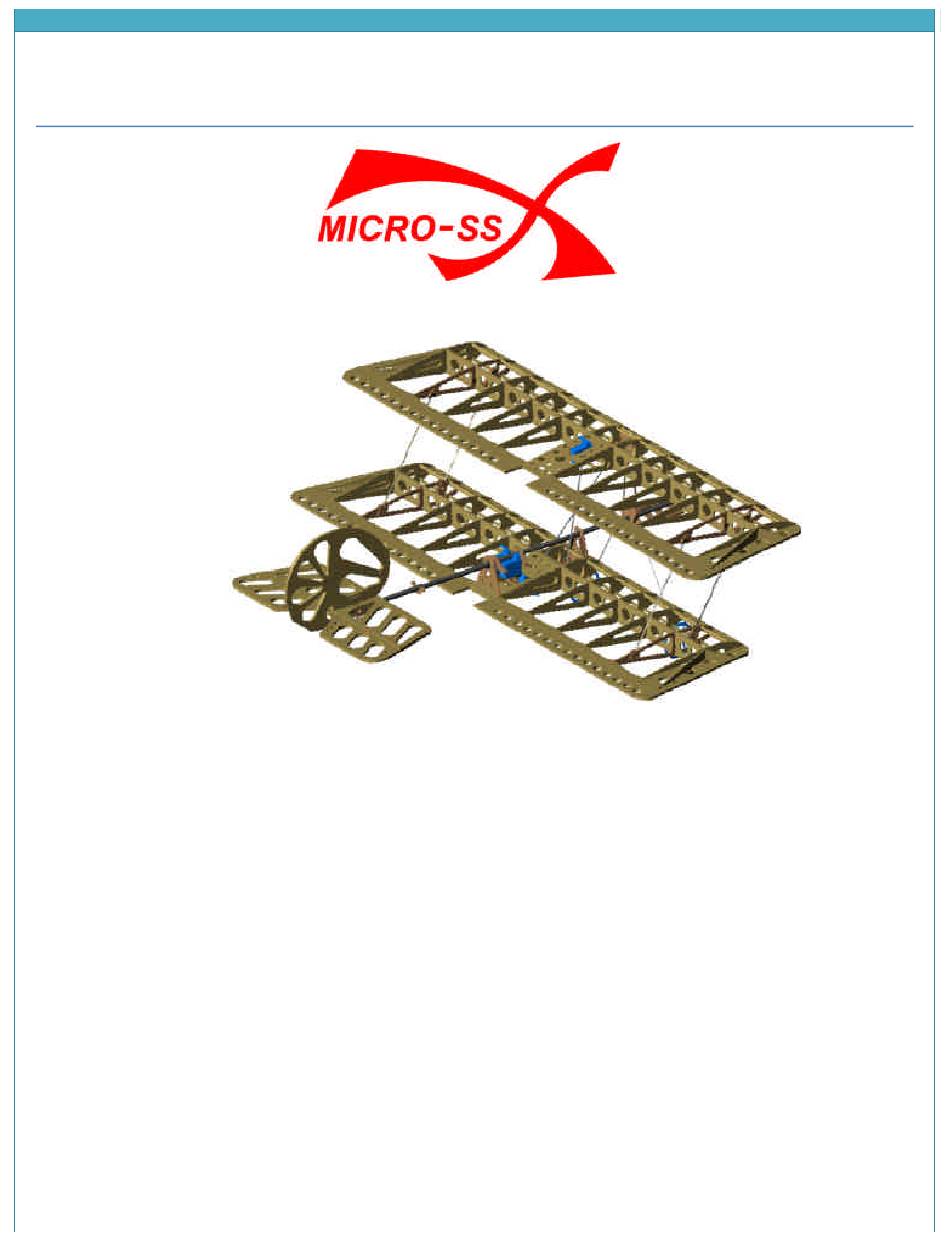

Millennium RC presents...
Flying weight: Approx. 6 - 7oz. (with recommended setup)
Wing Span: 21 1/2"
Wing Area: 240 sq. inches
Wing Loading: 3.6 oz./ sq. ft.
Length: 18"
Introduction:

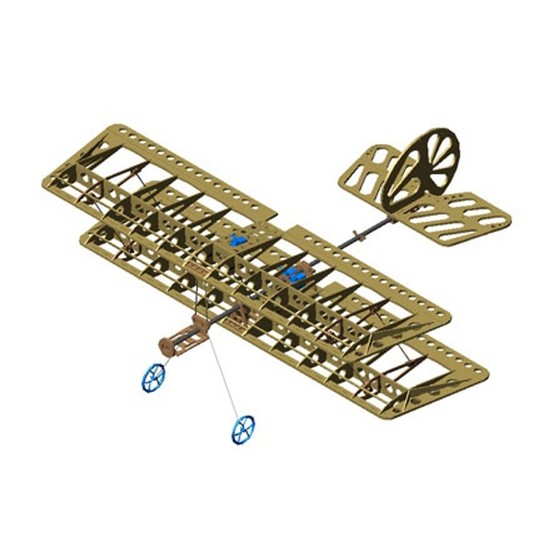

The MicroSSX™ Biplane Build Kit is a fun-to-fly and build classic biplane version of the popular Millennium
R/C MicroSSX airplane. The MicroSSX™ Biplane has the same wing span and length as the original Micro
SSX™, and is similar in that it is aerobatic and can handle the wind fairly well, but the Biplane is capable of
sustaining slower flight due to its lower wing loading.
Adult supervision recommended for children 15 and under. R/C Airplanes should be flown following safety
guidelines provided by the AMA (Academy of Model Aeronautics).
CAUTION: This is not a toy!
Recommendations:
1. Read through each step before starting assembly.
2. After removing all the pieces from packaging, inspect to make sure there are no broken or missing parts.
3. Check off each completed step to help keep from losing your place.
© 2008 Millennium R/C All Rights reserved
1
Build Kit
TM
Biplane
Advertisement
Table of Contents
Related Manuals for Millennium MICRO-SSX
Summary of Contents for Millennium MICRO-SSX
- Page 1 Length: 18” Introduction: The MicroSSX™ Biplane Build Kit is a fun-to-fly and build classic biplane version of the popular Millennium R/C MicroSSX airplane. The MicroSSX™ Biplane has the same wing span and length as the original Micro SSX™, and is similar in that it is aerobatic and can handle the wind fairly well, but the Biplane is capable of sustaining slower flight due to its lower wing loading.
- Page 2 22. 2 # 1 – ¼ sheet metal screws (Motor) Disclaimer: Additional Items Required: Millennium R/C assumes no responsibility for any accident or 1. Cyanoacrylate or CA Glue (thin and thick) 2. Hobby knife injury to persons or damage to 3.
- Page 3 Glue) Fig 5 Figure 2 If you should find a part missing or damaged, or have any questions about assembly, please contact us at the address below: Millennium R/C 12859 Lower River Blvd., Orlando, FL 32828 Phone: 407-208-9745 / Fax: 866-799-2372...
- Page 4 9. Install 1/32 deck D2 on upper wing top. (Glue) Fig 8 Figure 5 Figure 8 7. Install spar crutch W10 and remaining stringers. Tack glue ribs to TE. Set wings on flat surface, 10. Install 1/32 deck D3 on lower wing top. Fig. 9 square all parts and glue with thin CA.
- Page 5 12. Build Vertical/horizontal stabilizer and rudder/elevator as shown in Fig11 and 12 on attached sheet. (See BP-HS.WMF and BP- VS.WMF) 2 Plywood pieces “PS1” should be doubled-up to make the leading edge of the elevator. 13. Bevel bottom elevator 45 °, one side of rudder and bottom of ailerons.
- Page 6 of the wings and told to do so in the instructions. Set them aside for now. Final Assembly 22. Tape a length of Scotch tape™ along the rear trailing edge of the horizontal stabilizer and secure with your finger (either side is fine). Now, flip the stabilizer and place on a work surface.
- Page 7 28. Build the servo tray. Fig 20 Figure 22 Figure 20 Figure 23 Figure 21 29. (Fig 21) Slide P12A onto the fuselage stick and glue 6-1/4” from the tail end. Slide P12 onto the fuselage and leave it loose. Slide the tail mount onto the fuselage end and align it so that it is square with the flat edge of P12A.
- Page 8 Rudder Full deflection Elevator 20 degrees Ailerons 20 degrees More extreme throws can be used as desired. ENJOY YOUR NEW MICRO SSX BIPLANE FROM MILLENNIUM R/C! Figure 26 Millennium R/C 12859 Lower River Blvd. Orlando, FL 32828 Phone: 407-208-9745 Fax: 866-799-2372 www.millenniumrc.com...
