MAYO 6000 Series Operator's Manual

Tare and hd tare elevating conveyor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TARE
HD TARE
TARE and HD TARE
ELEVATING CONVEYOR
6000 SERIES
OPERATOR'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for MAYO 6000 Series

Summary of Contents for MAYO 6000 Series

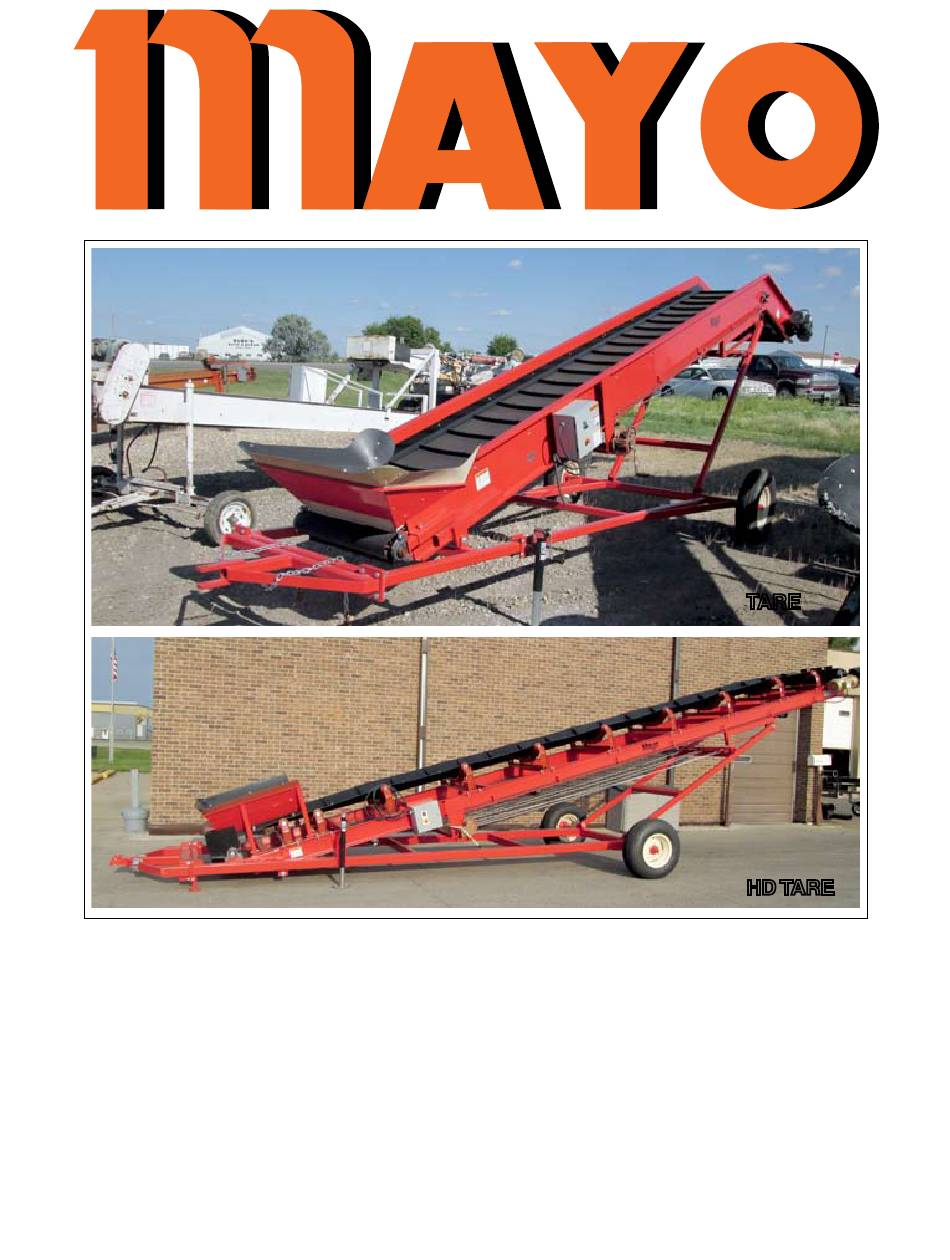

  • Page 1 TARE HD TARE TARE and HD TARE ELEVATING CONVEYOR 6000 SERIES OPERATOR'S MANUAL...
  • Page 2 This warranty does not apply to any machine that has been altered outside the factory in any way so as, in the judgement of Mayo, to affect its operation, reliability or safety, or which has been subject to misuse, neglect or accident.
  • Page 3 MAYO MANUFACTURING, INC. TARE and HD TARE ELEVATING CONVEYOR 6000 SERIES WARRANTY REGISTRATION FORM & INSPECTION REPORT WARRANTY REGISTRATION (Please Print) This form must be filled out by the dealer and signed by both the dealer and the customer at the time of delivery.
  • Page 5 SERIAL NUMBER LOCATION Always give your dealer the serial number of your Mayo Tare and HD Tare Elevating Conveyor when order- ing parts or requesting service or other information. The serial number plate is located where indicated. Please mark the number in the space provided for easy reference.

  • Page 7: Table Of Contents

    TABLE OF CONTENTS SECTION DESCRIPTION PAGE Introduction ..............1 Safety ..............2 General Safety ............3 Equipment Safety Guidelines ........ 4 Storage Safety ............4 Safety Training ............5 Safety Signs ............5 Preparation ............6 Installation Safety ..........6 Lock-Out Tag-Out Safety ........

  • Page 9: Introduction

    INTRODUCTION Congratulations on your choice of a Mayo 6000 Series Tare and HD Tare Elevating Conveyor and welcome to Mayo's quality line of potato handling equipment. This equipment is designed and manufactured to meet the needs of a discriminating buyer in the agricultural industry for the loading, unloading, processing and storing of harvest yields.

  • Page 10: Safety

    If you have any questions not answered in this manual or require additional copies or the manual is damaged, please contact your dealer or Mayo, P.O. Box 497, Bus Highway 2, East Grand Forks, Minnesota, 56721. (Telephone) 218-773-1234, (FAX) 218-773-6693 or toll free at 1-800-223-5873.

  • Page 11: General Safety

    GENERAL SAFETY YOU are responsible for the SAFE operation and Read and understand the Oper- maintenance of your Mayo Tare and HD Tare Elevat- ator's Manual and all safety ing Conveyor. YOU must ensure that you and any- signs before supplying power...

  • Page 12: Equipment Safety Guidelines

    EQUIPMENT SAFETY GUIDELINES Safety of the operator and bystanders is one of the 9. In addition to the design and configuration of this main concerns in designing and developing a ma- implement, including Safety Signs and Safety chine. However, every year many accidents oc- Equipment, hazard control and accident preven- cur which could have been avoided by a few sec- tion are dependent upon the awareness, concern,...

  • Page 13: Safety Training

    SAFETY TRAINING SAFETY SIGNS Safety is a primary concern in the design and man- Keep safety signs clean and legible at all times. ufacture of our products. Unfortunately, our efforts to provide safe equipment can be wiped out by a 2.

  • Page 14: Preparation

    INSTALLATION SAFETY PREPARATION Disconnect and remove all mechanical locks, an- Never operate the Tare and HD Tare Elevating chor chains and any other transport devices that Conveyor and auxiliary equipment until you have would hinder or prohibit the normal functioning of read and completely understand this manual, the the Elevating Conveyor upon start up.

  • Page 15: Operating Safety

    Lock- 11. Keep the working area clean and dry. out tag-out power source before per- forming any maintenance work. 12. Contact Mayo at (218) 773-1234 or 1 (800) 223- 5873 if you have any questions. 13. Review safety instructions annually.

  • Page 16: Electrical Safety

    4. Turn machine OFF, shut down and lock out Do not under-inflate or overinflate. power supply (safety lockout devices are avail- able through your Mayo dealer parts depart- 4. Fully retract all telescoping conveyor sections and ment), relieve hydraulic pressure and wait for secure before transporting.

  • Page 17: Employee Sign-Off Form

    2.14 DATE EMPLOYEE'S SIGNATURE EMPLOYER'S SIGNATURE...

  • Page 19: Safety Sign Locations

    SAFETY SIGN LOCATIONS The types of safety signs and locations on the equipment are shown in the illustrations that follow. Good safety requires that you familiarize yourself with the various Safety Signs, the type of warning and the area, or particu- lar function related to that area, that requires your SAFETY AWARENESS.
  • Page 20 The types of safety signs and locations on the equipment are shown in the illustrations that follow. Good safety requires that you familiarize yourself with the various Safety Signs, the type of warning and the area, or particu- lar function related to that area, that requires your SAFETY AWARENESS. • Think SAFETY! Work SAFELY! REMEMBER - If Safety Signs have been damaged, removed, become illegible or parts replaced without safety signs, new signs must be applied.
  • Page 21 The types of safety signs and locations on the equipment are shown in the illustrations that follow. Good safety requires that you familiarize yourself with the various Safety Signs, the type of warning and the area, or particu- lar function related to that area, that requires your SAFETY AWARENESS. • Think SAFETY! Work SAFELY! REMEMBER - If Safety Signs have been damaged, removed, become illegible or parts replaced without safety signs, new signs must be applied.
  • Page 22 The types of safety signs and locations on the equipment are shown in the illustrations that follow. Good safety requires that you familiarize yourself with the various Safety Signs, the type of warning and the area, or particu- lar function related to that area, that requires your SAFETY AWARENESS. • Think SAFETY! Work SAFELY! REMEMBER - If Safety Signs have been damaged, removed, become illegible or parts replaced without safety signs, new signs must be applied.

  • Page 23: Operation

    4.1 TO THE NEW OPERATOR OR OWNER Follow all safety instructions exactly. Safety is The Mayo Manufacturing Tare and HD Tare Elevating Conveyor is designed to move harvest from one el- everyone's business. By following recommended procedures, a safe working environment is pro- evation to another in a conveying system.

  • Page 24: Machine Components

    MACHINE COMPONENTS The Mayo Manufacturing Tare and HD Tare Elevating A manual winch sets the height of the machine. The Conveyor consists of a hopper, elevator and optional electrical controls are mounted on a control panel on short boom assembly for conveying produce from one the left side.

  • Page 25: General Operation Theory

    4.3 GENERAL OPERATION THEORY The Mayo Tare and HD Tare Elevating Conveyor is typically utilized in a warehouse or plant setting to lift harvest yields from one elevation to a higher eleva- tion or to remove debris from cleaning equipment.

  • Page 26: Machine Break-In

    A. Read Conveyor and auxiliary equipment manuals ty as well as for continued mechanical soundness and before starting. longevity of your new Mayo conveyor. The checklist should be performed before operating the conveyor B. After operating for 1/2 hour: and prior to each operation thereafter.

  • Page 27: Controls

    CONTROLS It is recommended that all operators review this sec- tion of the manual to familiarize themselves with the location and function of all machine controls before starting. Some machines may vary slightly due to custom features but they are similar and all controls are labelled.

  • Page 28: Machine Installation & Preparation

    MACHINE INSTALLATION AND PREPARATION The machine must be properly prepared prior to us- ing. Before starting machine, be sure that the fol- lowing items are appropriate for your machine and operating requirements: Power: Have a licensed electrician provide power at the required voltage, phase and amperage for your machine by following ANSI/NFPA 70 Wiring Standard.
  • Page 29 3. Machine Position: The Elevating Conveyor is normally used as a com- ponent in a conveying system and raises the pota- toes or trash from one level to another. Determine the height and location of the equipment moving material to and from the Elevating Conveyor. Both hopper intake and discharge (short boom) must be located to be an integral component in the con- veying system.

  • Page 30: Operating

    Turn machine OFF, shut down and lock out pow- do not know or are unsure, consult a licensed er supply (safety lockout devices are available electrician. through your Mayo dealer parts department), re- lieve hydraulic pressure and wait for all moving • Stay away from overhead obstructions and parts to stop before servicing, adjusting, main- power lines when raising the discharge end.
  • Page 31 5. Starting Conveyor: a. Clear the area of bystanders. Know where ev- eryone is before starting. b. Place all controls in the OFF or neutral position. c. Turn the power to the machine ON at the mas- ter panel if connected to a hard wired power source.
  • Page 32 9. Moving: In many instances the machine can be manually moved by 2 men if it is on a level hard surface. Always place in its lowest position before moving. Stay away from overhead power lines and obstructions. Install and secure the hitch before transporting (Refer to Section 4.9).
  • Page 33 10. Drop Height: Potatoes are sensitive to bruising during the har- vesting, transporting and conveying phases of your operation. Bruising is kept to a minimum by maintaining a full flow of potatoes through each machine and minimizing all drop heights. Bruising during the conveying phase can be minimized by keeping the drop height between each piece of equipment as small as possible.
  • Page 34 11. Frame height: Use the winch on the left side of the frame to raise and lower the frame. Use it to set the discharge and drop height. FIG. 10 WINCH (TYPICAL) 12. Operating hints: a. Be sure that all workers and operators are sup- plied with and use the required safety gear.

  • Page 35: Transport

    Lower Conveyor to the fully down position before when transporting. moving or transporting. Mayo Elevating Conveyors are designed to be eas- ily and conveniently moved from location to location. Transporting is used to describe when the machine is being towed by a tractor or other power unit. When...
  • Page 36 3. Lower the boom into its lowest position. 4. Use the jack to attach to the tow vehicle. 5. Raise and stow the jacks. 6. Turn the power OFF at the master panel and lock- out tag-out. Unplug and stow the power cord. 8.

  • Page 37: Storage

    4.10 STORAGE STORAGE SAFETY • Store the Elevating Conveyor on a firm level 8. Check all rotating parts for entangled material. surface. Remove. • If required, make sure the unit is firmly blocked 9. Touch up all paint nicks and scratches to prevent rusting. • Make certain that all mechanical locks are safe- 10. Select a storage area that is dry, level and free of ly and positively connected before storing.

  • Page 39: Service And Maintenance

    Turn machine OFF, shut down and lock out pow- er supply (safety lockout devices are available 2. Speed Reducer Gear Box Lubricant: through your Mayo dealer parts department) Use a Browning Worm Gear high-tempera- and wait for all moving parts to stop before ser- ture GL32HT lubricant (AGMA Comp. #8) or vicing, adjusting, maintaining or repairing.
  • Page 40 5.1.3 SERVICING INTERVALS 8 Hours or Daily Check the conveyor tension and alignment. Tension or align as required. Tare Elevating Conveyor HD Tare Elevating Conveyor FIG. 13 CONVEYOR TENSION/ALIGNMENT 2. Inspect electrical system and all components.
  • Page 41 Weekly or 50 Hours Grease conveyor shaft bearings with 1 shot of grease. IMPORTANT Only sealed bearings are used on the conveyor bearings. Sealed bearings should never be greased more often than weekly or every 50 hours. Do not over-grease. Do not give bearing more than 1 shot of grease each time it is greased.
  • Page 42 100 Hours or Annually Check the oil level in the speed reducing gear box in the drive system. Tare Elevating Conveyor HD Tare Elevating Conveyor Schematic FIG. 15 GEARBOXES (TYPICAL)
  • Page 43 500 Hours or Annually: Repack each wheel bearing. Tare Elevating Conveyor HD Tare Elevating Conveyor FIG. 16 WHEELS (TYPICAL) 2. Clean machine.
  • Page 44 5.1.4 SERVICE RECORD See Lubrication and Maintenance sections for details of service. Copy this page to continue record. ACTION CODE: CHECK CHANGE CLEAN LUBRICATE REPACK INSPECT Maintenance Hours Serviced by 8 Hours or Daily CK Conveyor Tension and Alignment IN Electrical System and Components 50 Hours or Weekly LU Shaft Bearings...

  • Page 45: Maintenance

    5.2 MAINTENANCE By following a careful service and maintenance pro- gram on your machine, you will enjoy many years of trouble-free use. 5.2.1 ELECTRICAL SYSTEM INSPECTION Electricity provides power to all systems on the Elevating Conveyor. To maintain the integrity of each system and provide a safe working environment for the operator, it is important that a daily inspection be done to make sure that all systems and components...
  • Page 46 5.2.2 ELECTRIC MOTOR RESTART A magnetic starting system is used on the Elevating Conveyor and the restart procedure is covered in this section. It is recommended that only a licensed elec- trician perform maintenance work on the electrical system. Magnetic Starter: All electric motors are supplied with power through an individual circuit that includes a circuit breaker, switch, contactor and overload relay that are all in-...
  • Page 47 5.2.3 SPEED REDUCER GEARBOX OIL The conveyor is driven by an electric motor that is attached to a high ratio speed reducing gearbox to give the required operating speed. The gearbox is equipped with a drain, level and fill plug. Every 100 hours, the oil level should be checked.
  • Page 48 5.2.4 CONVEYOR BELT TENSION / ALIGNMENT OR REPLACEMENT Rubber belts are used to convey material with the Elevating Conveyor. The tension and alignment of the conveyor should be checked daily to insure proper function. Replace the conveyor belt when damaged or badly worn.
  • Page 49 5. Alignment: It is properly aligned when the belt runs in the cen- ter of the frame panels and the shafts. Be sure to run the conveyor a full revolution to check the entire belt. The belt can move from side-to-side while it is turning as long as it doesn't contact the sides.

  • Page 51: Trouble Shooting

    TROUBLE SHOOTING The Mayo Tare and HD Tare Elevating Conveyor uses an elevator and extendable boom to convey material into a storage facility, truck or planter. It is a simple and reliable system that requires minimum maintenance. In the following section, we have listed many of the problems, causes and solutions to the problems that you may encounter.

  • Page 53: Specifications

    SPECIFICATIONS MECHANICAL DIMENSIONS Length: Width: Height: Frame Up Frame Down POWER Type Tare HD Tare Elevator TIRES Tires 15 Ribbed Implement, 4-ply Rating Pressure SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...

  • Page 54: Bolt Torque

    7 .2 BOLT TORQUE CHECKING BOLT TORQUE The tables shown below give correct torque values for various bolts and capscrews. Tighten all bolts to the torques specified in chart unless otherwise noted. Check tightness of bolts periodically, using bolt torque chart as a guide.

  • Page 55: Electrical Schematic

    7 .3 ELECTRICAL SCHEMATIC 7 .3.1 SINGLE PHASE...
  • Page 56 7 .3.2 THREE PHASE...

  • Page 57: Index

    INDEX PAGE PAGE Introduction ............1 Safety 2 Electrical Safety ........8 Employee Sign-Off Form ......9 Equipment Safety Guidelines ....4 General Safety ..........3 Operation ............15 Installation Safety ........6 Controls ...........19 Lock-Out Tag-Out Safety ......6 General Operation Theory ......17 Maintenance Safety ........7 Machine Break-In ........18 Operating Safety ........7 Machine Components ......16 Preparation ..........6...
  • Page 60 MAYO MANUFACTURING CO. BUS HIGHWAY 2 BOX 497 EAST GRAND FORKS, MN 56721 PHONE (218) 773-1234 TOLL FREE (800) 223-5873 FAX (218) 773-6693 PRINTED IN USA ISSUE DATE: SEPTEMBER 2014 PART NUMBER: XXX-XXX...
