Summary of Contents for Quadra Bigfoot
- Page 1 Version #1122 1 Point 2 point & Round Leg Systems INSTALLATION Guide • OWNER’S MANUAL Quadra Manufacturing, Inc. 305 US-131 South White Pigeon, MI 49099 800•752•9815 BIGFOOTLEVELER.COM...
- Page 2 Understanding which system you have: Basic 1point: Toggle switch mounted on the backside of the tank assembly, one jack, one pump. Standard 1point: Hard wired weatherproof control switch, one jack, one pump. Wireless 1point: Wireless key fob & emergency switch inside tank, one jack, one pump. Standard Slave: Hard wired weatherproof control switch, two jacks, one pump, does not adjust side to side.

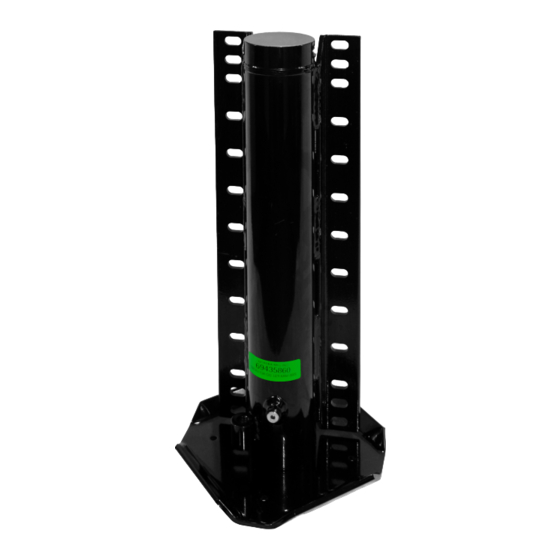

- Page 3 Mounting the Cylinders Make sure weld-on bracket is mounted vertically, it is easiest to bolt the cylinder to the bracket, then place up to the frame with a floor jack, verify that the jack is at appropriate height (typically 9-11” off the ground) and vertically level, then proceed to getting full weld from bracket to frame.
- Page 4 Tank Assembly Diagram Assembly with standard motor #M26850 Assembly with manual override motor #M26855 98oz. PLASTIC RESERVOIR #M25507...
- Page 5 To hookup the power attach the supplied eyelet to each end of the supplied 5’ battery cable. Attach one end of the cable to the positive battery terminal, place the other end to the lower solenoid post with the copper strip on the tank assembly. Auxiliary ground may be recommended, attach to a solenoid mounting stud on each solenoid and route 10 ga.
- Page 7 1pt or Drive Leg: If the tank hoses are not already connected to the leg, the left fitting on the tank assembly goes to the bottom fitting on the Bigfoot Jack, (the longest hose.) 2pt Slave Legs: Install “T” fittings at the drive leg’s ports, run the short hoses from the tank assembly to the “T”...
- Page 9 Rocker Switch Controls Included is a harness (#M43800) that routes from the tank assembly to the rocker control switch. The red wire is the 12V power, this goes from the power stud on the tank assembly (on copper strip with 5/16” studs from solenoids) to the center post on the switch.
- Page 10 Three Sided Tank Cover (Fastens with 2x #10 self-tapping screws, take care not to hit reservoir) Steel #M12013, Black ABS #M12002...
- Page 11 (pump mounted to cylinder’s angle bracket, two 7/16” bolts per pump). If you need longer hose, call Quadra and order longer or go to local hardware store and get ¼” hose with #4 JIC Female fittings, hose rated for 2,700 psi.
- Page 12 Check fluid level Check for leaks in hydraulic lines/fittings… if lines damaged, have them measure and order replacements from Quadra Possibly plumbed backwards… (Bottom port on jack should connect to left port on pump) Relief Valves have failed on pump motor… replace motor/tank assembly...
-
Page 13: Warranty Guide
269-483-9633 for Warranty Parts or Service Labor. For full warranty transcript just contact us! Service labor based on a flat rate schedule determined by Quadra for authorized work performed will be reimbursed. This will eliminate much diagnostic time and avoid refusal of unauthorized claims.
