π
H-9120

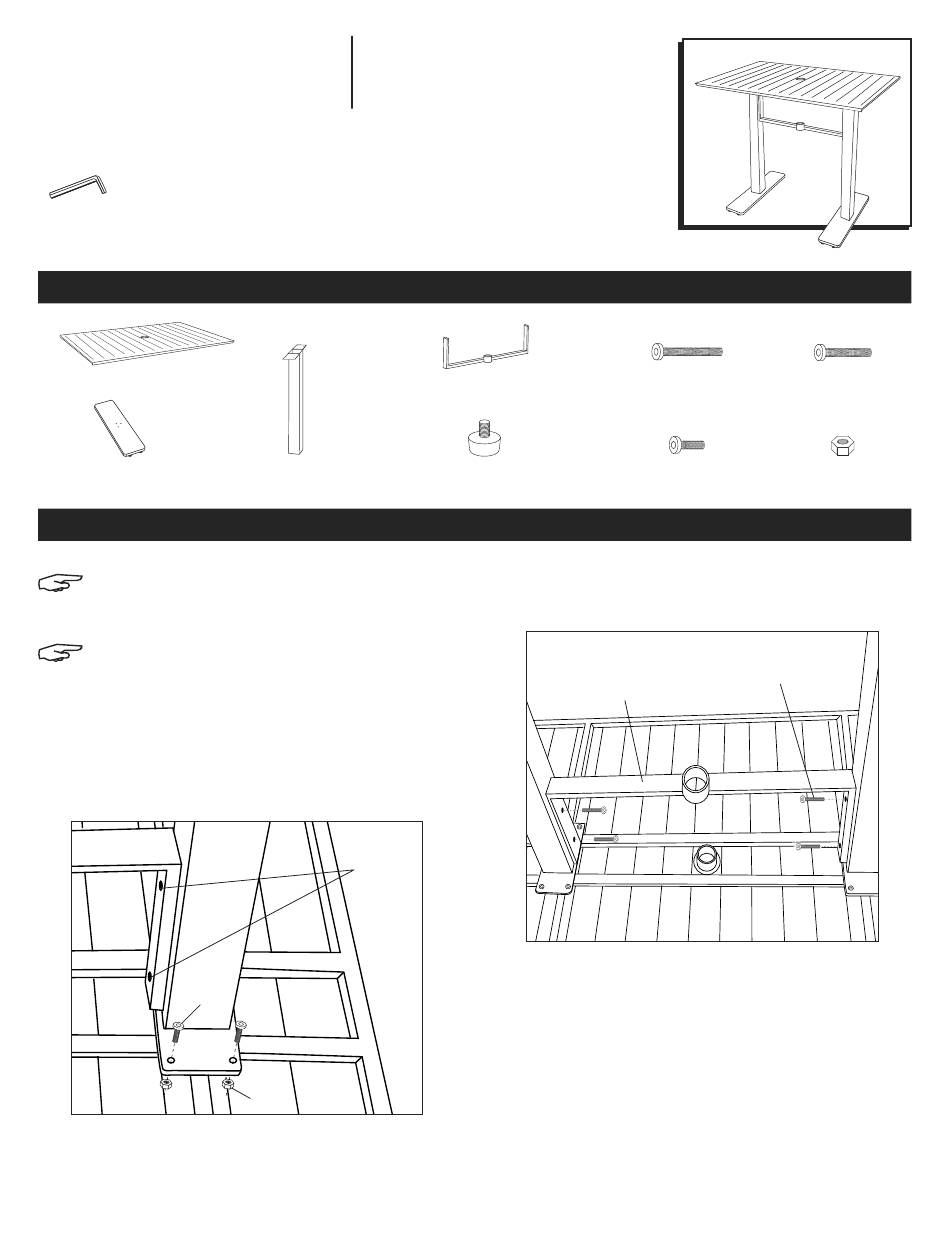

BAYSHORE PATIO TABLE
TOOL NEEDED
Allen Wrench
(included)
Tabletop x 1
Leg Plate x 2
NOTE: It is recommended to assemble unit on
a clean, flat, solid surface. Use a drop cloth to
avoid scratching the tabletop.
NOTE: Do not fully tighten bolts until table is
completely assembled.
1.
Locate all parts before assembly begins.
2. Invert top and set on a protective surface. Loosely
secure the leg columns to the tabletop with 3/4"
bolts and nuts. Ensure the bolt holes on the sides of
the leg columns are facing inward. (See Figure 1)
Figure 1
3/4" Bolt
PAGE 1 OF 6
1-800-295-5510
uline.com
Cross Brace with Umbrella Hole x 1
Leg Column x 2
ASSEMBLY
Bolt
Holes
Nut
PARTS
Foot Pad x 8
3. Loosely attach the cross brace with umbrella hole to
each leg column with 1" bolts. (See Figure 2)
Figure 2
Cross Brace
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
1½" Bolt x 6
1" Bolt x 4
3/4" Bolt x 8
Nut x 8
1" Bolt
1120 IH-9120
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for U-Line H-9120
- Page 1 Para Español, vea páginas 3-4. Pour le français, consulter les pages 5-6. π H-9120 1-800-295-5510 uline.com BAYSHORE PATIO TABLE TOOL NEEDED Allen Wrench (included) PARTS Tabletop x 1 Cross Brace with Umbrella Hole x 1 1½" Bolt x 6 1" Bolt x 4...
- Page 2 ASSEMBLY CONTINUED 4. Attach leg plates to bottom of each leg column with 6. Tighten all hardware. After all parts have been 1½" bolts. (See Figure 3) secured, carefully rotate table to upright position. Figure 3 1½" Bolt 5. Screw foot pads into leg plates. (See Figure 4) Completed Assembly Figure 4 Foot Pad...
- Page 3 π H-9120 800-295-5510 uline.mx BAYSHORE MESA PARA PATIOS HERRAMIENTA NECESARIA Llave Allen (incluida) PARTES 1 Cubierta 1 Soporte Transversal con Orificio 6 Pernos de 1⁄" 4 Pernos de 1" para Sombrilla 2 Placas para Patas 2 Columnas para Patas 8 Patas 8 Pernos de 4/5"...
- Page 4 CONTINUACIÓN DEL ENSAMBLE 4. Fije las placas para patas a la parte inferior de 6. Apriete toda la tornillería. Después de que asegure cada columna para patas con los pernos de 1½". todas las partes, gire la mesa a su posición vertical (Vea Diagrama 3) con cuidado.
- Page 5 π H-9120 1-800-295-5510 uline.ca BAYSHORE – TABLE DE TERRASSE OUTIL REQUIS Clé hexagonale (inclus) PIÈCES Surface de table x 1 Entretoise avec trou pour parasol x 1 Boulon de 1 ½ po x 6 Boulon de 1 po x 4...
- Page 6 MONTAGE SUITE 4. Fixez les plaques de pied au bas de chaque 6. Vissez tout le matériel d'installation. Une fois toutes colonne de pied avec des boulons de 1 ½ po. les pièces bien serrées, retournez la table avec (Voir Figure 3) précaution.
