Summary of Contents for Bio Compression Systems SC-2004-DL

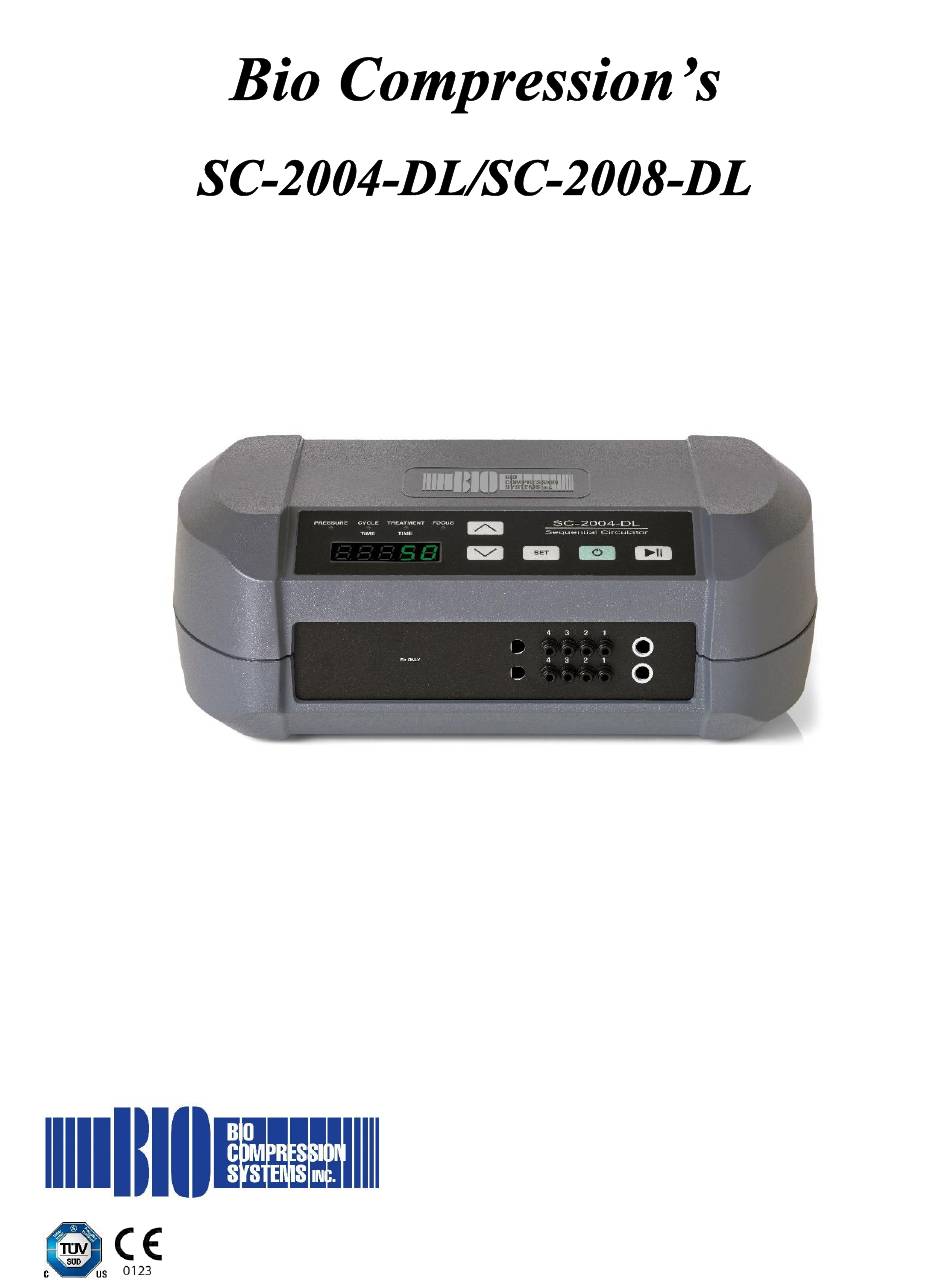

- Page 1 SEQUENTIAL CIRCULATOR Operating Instructions Quality Medical Products Since 1983...
-
Page 2: Table Of Contents
Table of Contents Introduction ....................3 Intended Use ..................... 3 Device Description and Operating Principle ........... 4 Warnings and Precautions ............... 7 Operating Instructions ................8 Accessories .................... 13 Product Specifications ................15 Environmental Specifications ..............16 Symbol Glossary ..................18 Information for Distributors and Healthcare Providers ...... -
Page 3: Introduction
Introduction Congratulations on the purchase of your sequential circulator and garments. Package Contents Sequential Circulator pump Power cord Instructions for use Blocker bar Garment(s) - possibly packed separately Intended Use Sequential Circulators are pneumatic compression devices intended for either primary or adjunctive treatment of lymphedema, peripheral edema, lipedema, venous insufficiency, and venous stasis ulcers. -
Page 4: Device Description And Operating Principle
Presence of fibrotic tissue may require as much as 80 mmHg in order to soften the fibrotic tissue and achieve reduction. Once the tissue is soft, the compression can be readjusted to 50 mmHg. Patients with a history of Congestive Heart Failure (CHF), which is controlled with medication, should never be in a flat position while pumping. - Page 5 Focus Therapy is used to help treat patients at the beginning of their session in an area that requires more attention. Focus therapy doubles the inflation time of two adjacent chambers (SC-2004-DL) or three adjacent chambers (SC-2008-DL) during the first ten minutes of treatment.

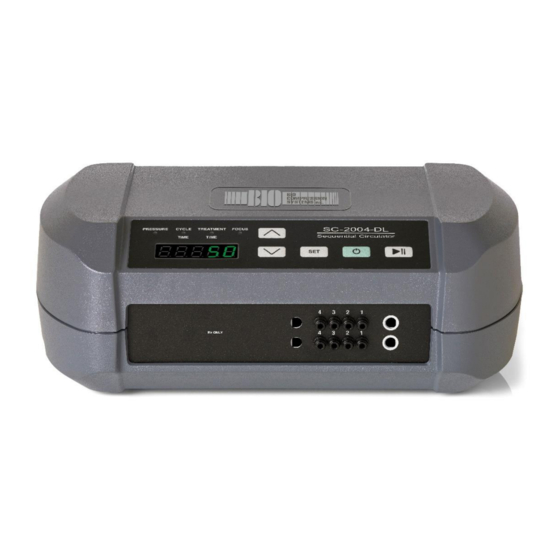

- Page 6 Treatment Compliance Meter The pump records the hours of use. Front Panel 1. LED Indicators 2. LED Display 3. UP Button 4. DOWN Button 5. SET Button 6. Power On/Off Button 7. PLAY/PAUSE Button 8. Garment Connector Bar Port 9. Auxiliary Connector Bar Port (shown with Blocker Bar) The SC-2008-DL has two Garment Connector Bar Ports and two Auxiliary Connector Bar Ports as shown below:...
-
Page 7: Warnings And Precautions
Warnings and Precautions US federal law restricts this device to sale by or on the order of a physician. Electrical Medical Equipment To avoid the risk of electric shock, burns, fire, injury, or improper treatment, read the entire instruction manual before operating this device ... -
Page 8: Operating Instructions
Any serious incident that has occurred in relation to the device must be reported to Bio Compression Systems. In the European Union (EU), incidents should also be reported to the competent authority of the Member State in which the user and / or patient is established. - Page 9 Preparing the Device for Use Remove garment(s) and cardboard underneath from box Remove garment(s) from plastic bag, unroll, and spread flat Lift pump out of box and remove protective end caps – save packaging for transport and storage ...
- Page 10 (SC-2008-DL only) Locate the second connecter bar and repeat previous steps When using two garments, remove blocker bar(s) and repeat previous steps Putting the Garment(s) On Leg sleeve: unzip, place foot in and use straps to guide garment on, pull up zipper to secure ...
- Page 11 Changing Pressure During Treatment While the pump is running, press and hold the UP button for 5 seconds until you see the word “HOld” - let go of UP button Once the pump returns to its resting position “SEt” and “PrES” will show in LED display, the blue LED will light up under “Pressure”...
- Page 12 Store in a dry location away from a source of heat and free of pests Servicing and Repairs Contact Bio Compression Systems for servicing – there are no user serviceable parts Tampering, modifying, or dismantling this device in any way voids the warranty ...
-
Page 13: Accessories
1. Check garment connection to pump 2. Check garment hose for damage, kinks, or twists 3. Check garment for damage 4. Contact Bio Compression Systems Device is loud or making strange noises: 1. Make sure pump is on a stable surface 2. - Page 14 Accessories (SC-2008-DL) Description G8-3035-S 8-Chamber Arm Sleeve - Small G8-3035-M 8-Chamber Arm Sleeve - Medium G8-3035-L 8-Chamber Arm Sleeve - Large G8-3035-SH-S-L 8-Chamber Arm & Shoulder Sleeve - Small, Left G8-3035-SH-S-R 8-Chamber Arm & Shoulder Sleeve - Small, Right G8-3035-SH-M-L 8-Chamber Arm &...
-
Page 15: Product Specifications
Software Safety Class: A Regulatory Classification: AU IIa, CA 2, BR II, EU IIa, US 2 Weight (SC-2004-DL) 3.3 lbs. (1.5 kg) Weight (SC-2008-DL): 3.65 lbs. (1.66 kg) Dimensions: 4.5” x 12” x 7.34” (114 mm x 304 mm x 186 mm) -
Page 16: Environmental Specifications
Environmental Specifications Consumables and Natural Resources Used During Care and Use Electrical energy for operation 70 mL laundry detergent and 250 mL bleach per 7.6 liters water for garment cleaning - only as needed Emissions During Normal Use ... - Page 17 Does not contain hazardous substances requiring special handling and treatment Dispose of in an environmentally responsible manner in accordance with regional requirements Contact Bio Compression Systems if you have questions or concerns regarding disassembly and disposal Manufacturer’s EMC Declaration Electromagnetic Emissions...
-
Page 18: Symbol Glossary
Symbol Glossary Authorized Representative in Manufacturer the European Community Atmospheric pressure limitation Medical Device Batch code (lot number) Keep dry Catalog number Power on/off (stand-by) Refer to instruction manual/ Caution booklet Class II equipment (protection Restricted to sale by or on the against electric shock) order of a physician Complies with the Waste... -
Page 19: Information For Distributors And Healthcare Providers
LED display will light up and the buttons can be released Press “SET” button – LED display will turn off and pump has been reset Contact Information Manufacturer Bio Compression Systems, Inc. 120 West Commercial Avenue Moonachie, NJ 07074, USA Phone: +1-201-939-0716 Toll-Free Phone (US): 800-888-0908 E-mail: biosystems@biocompression.com... - Page 20 L-284 C EN 2021-09...
Need help?
Do you have a question about the SC-2004-DL and is the answer not in the manual?
Questions and answers
Is there a default setting for "cycle time"?
The default setting for cycle time on the Bio Compression Systems SC-2004-DL is not explicitly stated in the provided context.
This answer is automatically generated
The machine is stuck on hold and does not reset
The Bio Compression Systems SC-2004-DL machine may be stuck on "hold" and not resetting if the reset procedure is not followed correctly. To reset:
1. Make sure the pump is plugged in but turned off.
2. Press and hold the up, down, and set buttons together for 5 seconds.
3. When the LED screen lights up, release the buttons—this shows the compliance meter hours.
4. Press the set button one time.
5. The LED screen will turn off, and the pump will be reset.
If these steps are not done correctly, the machine may remain on "hold." Also, the machine may stay on "hold" during normal operation if it is preparing for deflation or if the play/pause button was pressed. To resume treatment, press the play/pause button again.
