Spooky Central Quick Instructions
7
Jan 2016
th

Warning

Do not remove or insert any plugs whilst Spooky Central is powered on.
Turn off at the mains switch at the rear of Spooky Central. The switch light
should be off and there should be no fan noise.

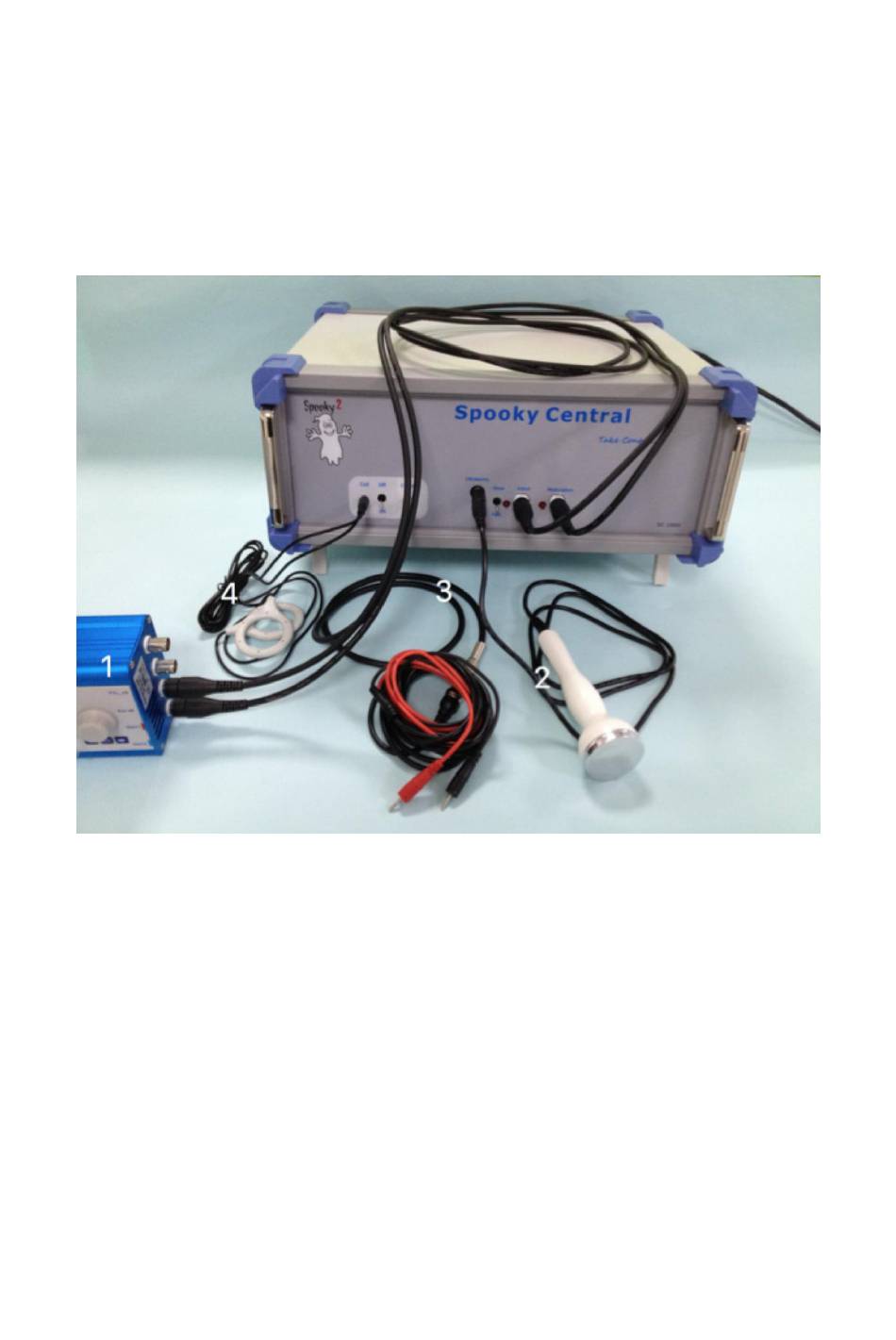

1. Connect your XM generator to Spooky Central.
OUT1 goes to INPUT. OUT2 goes to MODULATION.
2. Plug your ultrasonic speaker into the ULTRASONIC output.
3. Plug the contact mode adapter cable into the CONTACT output.
4. Plug the coil (if supplied) into COIL output.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Spooky Central and is the answer not in the manual?

Questions and answers

Summary of Contents for Spooky2 Spooky Central

  • Page 1 Warning Do not remove or insert any plugs whilst Spooky Central is powered on. Turn off at the mains switch at the rear of Spooky Central. The switch light should be off and there should be no fan noise. 1. Connect your XM generator to Spooky Central.
  • Page 2 5. Plug your plasma tube into the rear high voltage sockets. 6. Plug in the mains cable. 7. Turn Spooky Central on at the rear switch. 8. Start the Spooky software. 9. Select the JW - Spooky Central preset.
  • Page 3 Best results will be achieved if they are run in combination.  Spooky Central only accepts a 5v / 100% offset square wave input. Any other voltage or waveform may cause damage.  A spectrum sweep can be used, but it must use a square wave and be 5v with 100% offset.
  • Page 4 Spooky Central has 2 inputs; an Input, and Modulation. These 2 inputs control the plasma tube. The inputs should be set as below, with critical settings highlighted. Operational truth table of Spooky Central 0 – Off. 1 – On. INPUT...
  • Page 5 Specifications Mains voltage : 230 or 110v (region specific) Mains power (max) :< 150W INPUT (INPUT & MODULATION) voltage: 5VDC INPUT frequency range: 100 kHz – 3.5 MHz MODULATION (optional input signal) voltage: 5VDC MODULATION frequency range: 100 kHz – 3.5 MHz High voltage output (RMS) : 543v High voltage (peak): 9315v Plasma tube power (max) : 40W...
