Brother
TOOLS & SUPPLIES
•
Phillips Screwdriver
•
Safety Glasses
•
Powder-Free Gloves
STEP 1.1 (REMOVAL)
Drive Side End Plate
Use a Philips screwdriver to remove the two screws (Figure 1.1).
Remove the drive side end plate.
Visit Static Control
on the web @ www.scc-inc.com
®

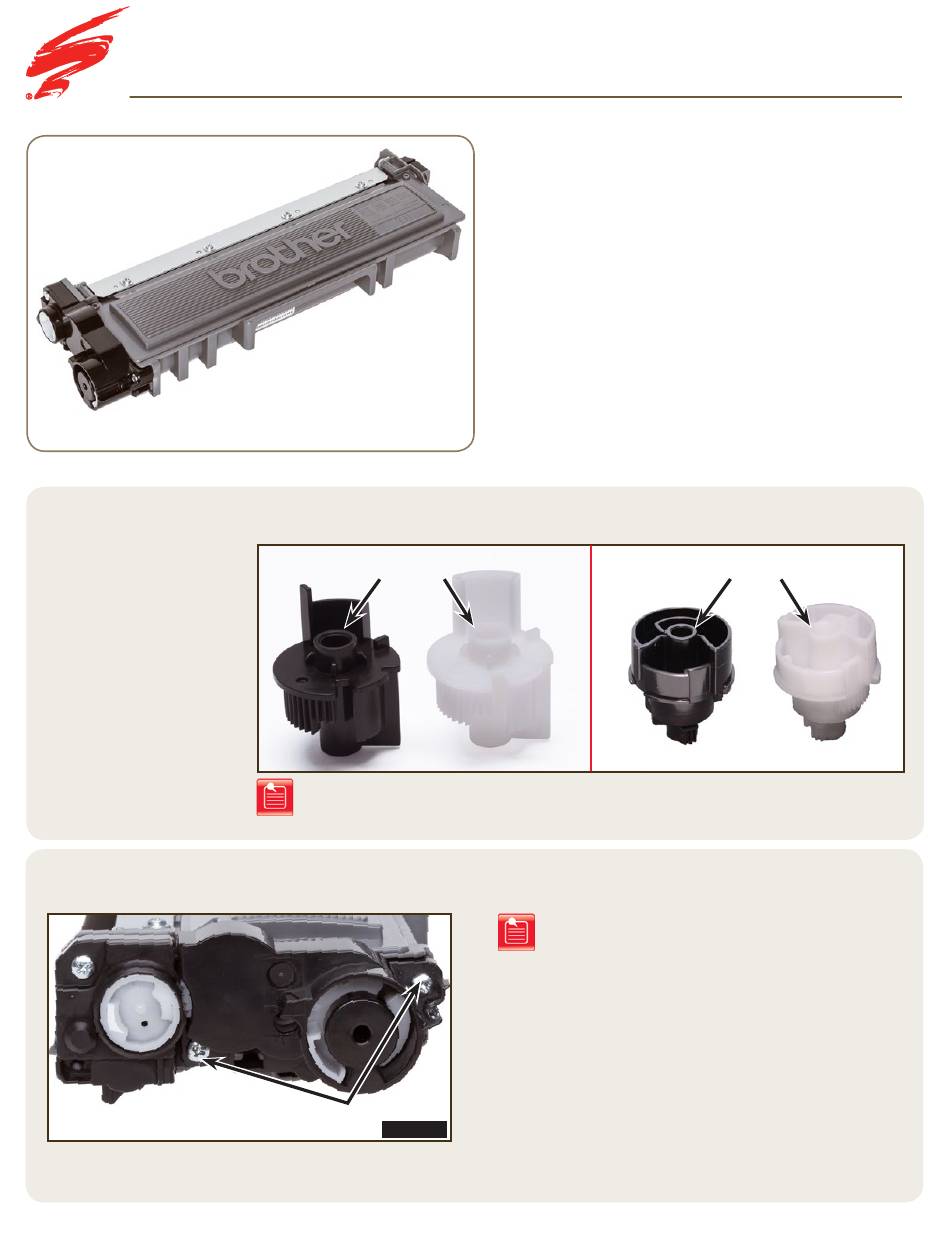

TN-630/660 Flag Gear Reset Instructions
®
Old Style Flag Gears
NOTE: The standard yield flag gear is black and the high yield flag gear is white.
Screws
FIGURE 1.1
For cleaning and remanufacturing
recommendations, please refer to SSS 1138.
NOTE: Be careful not to lose the spring. The new style
flag gear will remain with the end plate when
the plate is removed. Remove the flag gear from
the end plate.
SSS
1242
™
V 1.8: 5-16
New Style Flag Gears
Advertisement
Summary of Contents for STATIC CONTROL Brother TN-630
- Page 1 Old Style Flag Gears New Style Flag Gears • Safety Glasses • Powder-Free Gloves NOTE: The standard yield flag gear is black and the high yield flag gear is white. STEP 1.1 (REMOVAL) NOTE: Be careful not to lose the spring. The new style flag gear will remain with the end plate when the plate is removed. Remove the flag gear from Drive Side End Plate the end plate. Screws FIGURE 1.1 Use a Philips screwdriver to remove the two screws (Figure 1.1). Remove the drive side end plate. Visit Static Control on the web @ www.scc-inc.com ®...
- Page 2 Turn the agitator gear clockwise until the middle of the gear represents a “D”. The flat end should be straight up and down (Figure 1.3). STEP 1.4A (OLD STYLE) STEP 1.4B (NEW STYLE) Flag Gear Flag Gear FIGURE 1.4A FIGURE 1.4B Install the flag gear in the same orientation as shown in Figures 1.4A and 1.4B. Visit Static Control on the web @ www.scc-inc.com 1242 | ® ™...
- Page 3 Gear Removal and Reinstallation Instructions for 1242 ™ Brother TN-630/660 Flag Gear Reset Instructions ® Static Control HP P2055/P3015 Replacement Drum (Glue) ® STEP 1.5 Idler Gear Flag Gear Spring FIGURE 1.5 On the old style cores, install the idler and the flag gear spring (Figure 1.5). NOTE: Install only the idler gear in the new style cores. STEP 1.6A (OLD STYLE) STEP 1.6B (NEW STYLE)
