Kavan GO Servo Instruction Manual

GO Servo USB Programmer

SYSTEM REQUIREMENTS

• Operating Voltage: USB (5 V/ 500 mA)
• Operating System: Windows® XP/Vista/7/8/10 (32/64bit)
• Compatible Servos: KAVAN GO-10xx Series servos
Software Installation
1. Download the software package from the KAVAN website (https://www.pelikandaniel.com/dld/KAVAN0.11.zip) or
scan the QR code to download it. Decompress the .zip file, save it on your PC and run the "KAVAN0.11.exe" file.
2. Plug the USB programmer in a free USB 2.0 port of your PC. The PC detects the device and the driver installation starts
automatically; it might take some time depending on your system. The PC announces the installation progress; once
finished, the restart of your PC might be required (the actual dialog window depends on your system).

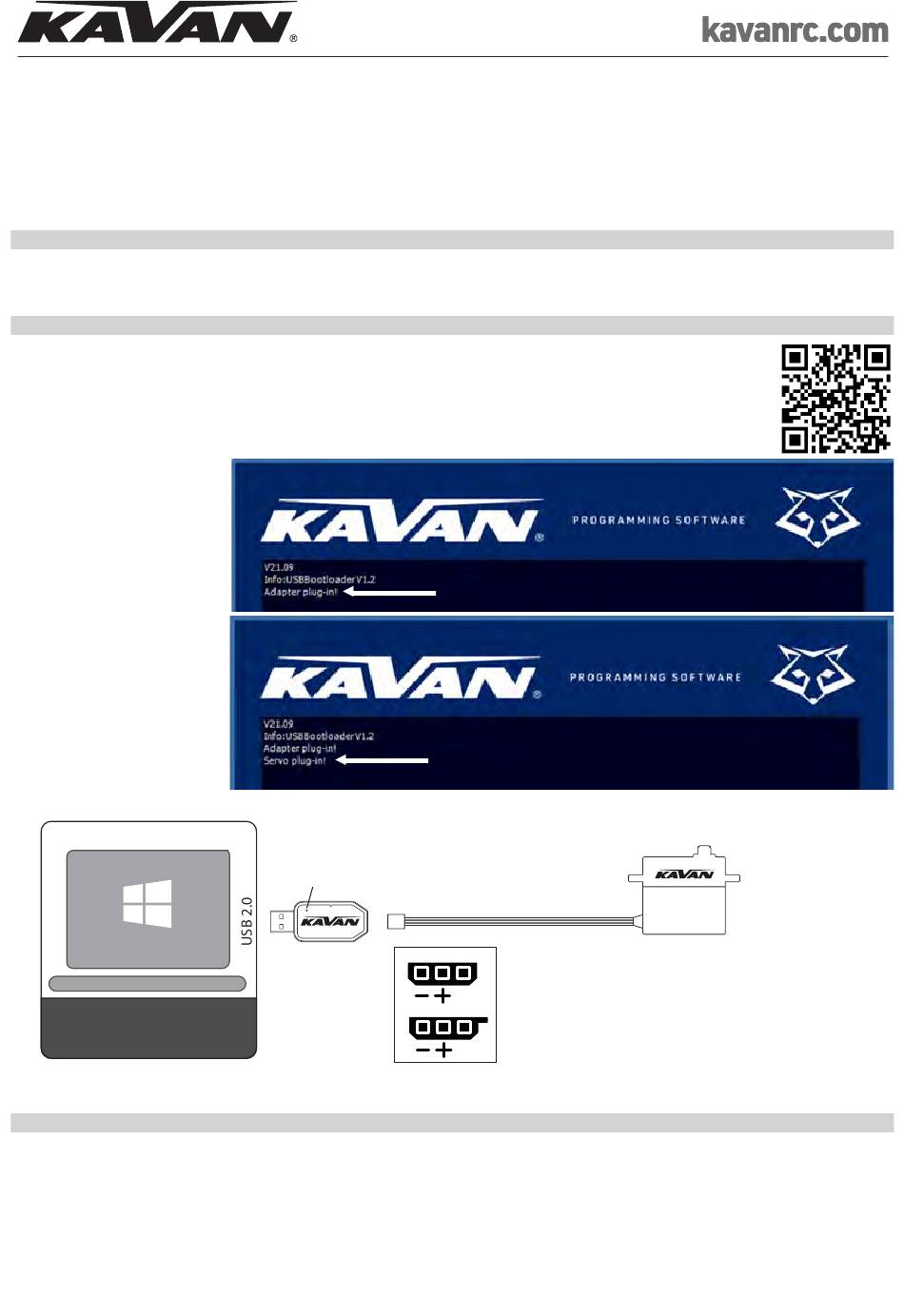

3. Open the programmer soft-
ware, "Adapter plug-in!" will
appear in the information
window. If not, you will have to
remove the USB programmer
and plug it again.
4. Connect your GO-10xx series
servo to the USB programmer;
the software recognizes it au-
tomatically and will read the
servo data and settings. "Servo
plug-in!" will appear in the in-
formation window and servo
name, manufacture date and
firmware version will appear
in the Servo Information box.
Green LED on the USB progra-
mmer flashes.

Wiring Diagram

Windows XP/Vista/7/8/10
(32/64bit) computer
Note: If the servo is not detected, it might be connected to the USB programmer in a wrong way. Remove the servo and programmer and
plug them again correctly (the signal wire – marked with a white stripe – has to be connected to the "S" pin of the servo programmer socket).

THE PROGRAMMER SOFTWARE FUNCTIONS

1. Information Window – displays the connection status of your programmer and servo and other messages.
2. Servo Angle: Maximal servo rotation angle range setting. The default range is ca 120° within the regular RC signal pulse width range
(900~2100 µs); ca 180° within the max. signal pulse width range (500~2500 µs). Range: 1~255
3. Servo Neutral: Servo neutral (centre) position setting. Range: -127~127
4. Damping Factor: Servo damping setting – adjust the characteristics of the servo when stopping. Range: 50~600
5. PWM Power: Adjusts the servo output power. The higher the power, the higher the speed and torque of the servo – indeed also the
current consumption will be higher. Range: 39.2~100.0%
6. Sensitivity: Servo sensitivity (Dead Band) setting. The higher sensitivity the narrower the dead band – servo moves only if the change of
the signal pulse width is bigger than the dead band width. Too high setting may cause servo jitter in some applications.
Range: Ultra High (ca 1 µs dead band) – High (ca 2 µs) – Medium (ca 3 µs) – Low (ca 4 µs)
Instruction Manual
LED
s
+
-

GO Servo
Programmer
|
White Wire
GO-10xx Series Servo
Konektor Hitec
JR/UNI
Rx
S
Konektor Futaba
Futaba
Rx
S
Konektor Tx
Hitec

