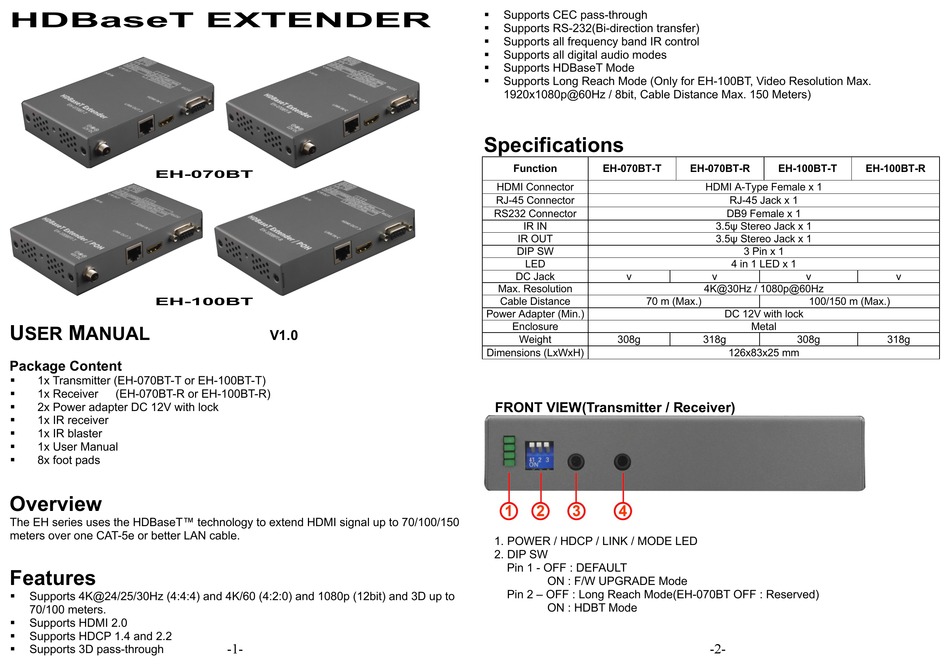

Elite Image EH-070BT User Manual

HDBaseT EXTENDER
EH-070BT
EH-100BT
U M
SER ANUAL

Package Content

§ 1x Transmitter (EH-070BT-T or EH-100BT-T)
§ 1x Receiver (EH-070BT-R or EH-100BT-R)
§ 2x Power adapter DC 12V with lock
§ 1x IR receiver
§ 1x IR blaster
§ 1x User Manual
§ 8x foot pads

Overview

The EH series uses the HDBaseT™ technology to extend HDMI signal up to 70/100/150
meters over one CAT-5e or better LAN cable.

Features

§ Supports 4K@24/25/30Hz (4:4:4) and 4K/60 (4:2:0) and 1080p (12bit) and 3D up to
70/100 meters.
§ Supports HDMI 2.0
§ Supports HDCP 1.4 and 2.2
§ Supports 3D pass-through
V1.0
-1-
§ Supports CEC pass-through
§ Supports RS-232(Bi-direction transfer)
Supports all frequency band IR control
§
§ Supports all digital audio modes
§ Supports HDBaseT Mode
§ Supports Long Reach Mode (Only for EH-100BT, Video Resolution Max.
1920x1080p@60Hz / 8bit, Cable Distance Max. 150 Meters)

Specifications

Function EH-070BT-T
HDMI Connector
RJ-45 Connector
RS232 Connector
IR IN
IR OUT
DIP SW
LED
DC Jack v
Max. Resolution
Cable Distance 70 m (Max.)
Power Adapter (Min.)
Enclosure
Weight 308g
Dimensions (LxWxH)
FRONT VIEW(Transmitter / Receiver)
1. POWER / HDCP / LINK / MODE LED
2. DIP SW
Pin 1 - OFF : DEFAULT
ON : F/W UPGRADE Mode
Pin 2 – OFF : Long Reach Mode(EH-070BT OFF : Reserved)
ON : HDBT Mode
EH-070BT-R EH-100BT-T EH-100BT-R
HDMI A-Type Female x 1
RJ-45 Jack x 1
DB9 Female x 1
3.5ψ Stereo Jack x 1
3.5ψ Stereo Jack x 1
3 Pin x 1
4 in 1 LED x 1
v v
4K@30Hz / 1080p@60Hz
100/150 m (Max.)
DC 12V with lock
Metal
318g 308g
126x83x25 mm
-2-
v
318g
