- Page 2 U S E R ’ S G U I D E 125-MHz Photoreceivers Models 1801 and 1811 These photodetectors are sensitive to electrostatic discharges and could be permanently damaged if subjected to any discharges. Ground your-self adequately prior to handling these detectors or making connections.
- Page 3 Warranty New Focus, Inc. guarantees its products to be free of defects for one year from the date of shipment. This is in lieu of all other guarantees, expressed or implied, and does not cover incidental or consequential loss. Copyright 2001, New Focus, Inc. All rights reserved.
-
Page 4: Table Of Contents
Contents Operation Introduction ......... . . 5 Handling Precautions . - Page 5 4 • Contents NEW FOCUS, Inc. Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
-
Page 6: Operation

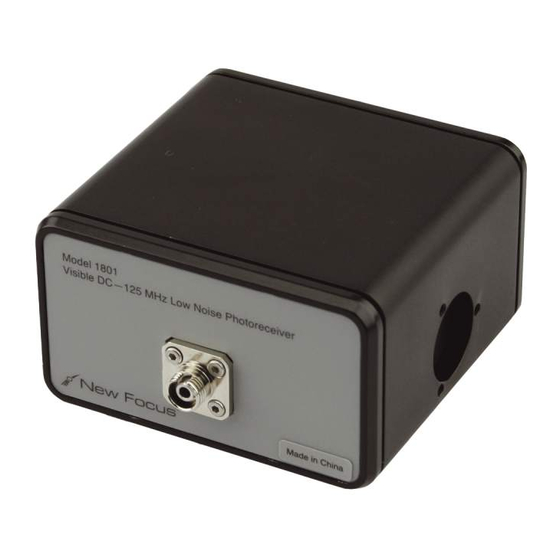

Operation Introduction The New Focus Models 1801 and 1811 125-MHz, low- noise photoreceivers address the needs of the photodetector community in the area of low-noise, high-gain, RF photoreception. These photoreceivers are available either DC or AC coupled. Their typical bandwidth is 125 MHz with a current gain of 40 V/... -
Page 7: Handling Precautions
Model 0921 banana plug-to- microconnector cable and a Model 0922 microconnector-to-microconnector cable. If you have a New Focus Model 0901 power supply, use the Model 0922 cable on one of the supply’s 0.3-A microconnector outputs. Do not use the Model 0921 on the Model 0901 power supply’s 0.1-A... - Page 8 providing a minimum of 0.25 A of current on ±15 V. The convention of the three banana plugs is: Banana Plug Voltage +15 V Green COM/GND Black -15 V 2. Turn on the optical beam. 3. For free-space beam input, align the module so that the beam is incident on the detector surface.
-
Page 9: Theory
Theory The Model 1801 photoreceiver contains a silicon/PIN photodiode. The Model 1811 contains an InGaAs/PIN photodiode. In both models, the photodiode is fol- lowed by a low-noise transimpedance amplifier acting as a pre-amp with a compensating amplifier as the out- put stage. - Page 10 NEP Characteristics For Model 1801, the NEP from 0–10 MHz is 3.3 pW/ and from 10–200 MHz the NEP is 30 pW/ Therefore the integrated noise from 0–130 MHz is 328 nW and with a conversion gain of 2.4x10 V/W, the expected output noise voltage is 7.8 mV...
- Page 11 (top) and noise floor (bottom). At DC the noise floor is 3.3 pW/ for Model 1801 & 2.5 pW/ Frequency, MHz for Model 1811 10 • Operation NEW FOCUS, Inc. Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
-
Page 12: Characteristics
18X1 2.07 Model 18X1 (52.7) casing Made in USA Distance from window face to photodetector: 1.00 1801 2.5 mm (25.4) 1811 0.5 mm Front View 2.86 (72.6) Back View Side View 1.43 8-32 (M4) thread (36.3) DC bias output; SMB connector (included with AC versions only) SMA connector;... -
Page 13: Photodetector Specifications
FC or free space (FS) RF Output DC Bias Monitor output (AC-coupled units only) * NEP is frequency dependent. See page 9 for more details. 12 • Characteristics NEW FOCUS, Inc. Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com... -
Page 14: Customer Service
Customer Service Technical Support Information and advice about the operation of any New Focus product is available from our applications engineers. For quickest response, ask for “Technical Support” and know the model and serial numbers for your product. Hours: 8:00–5:00 PST, Monday through Friday (excluding holidays). - Page 15 14 • Customer Service NEW FOCUS, Inc. Artisan Scientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-scientific.com...
