GTO RB709-U Owner's Manual

RB709-U
Relay Output Universal Receiver
Owners Manual
Designed to work with most brands of gate and
door openers.

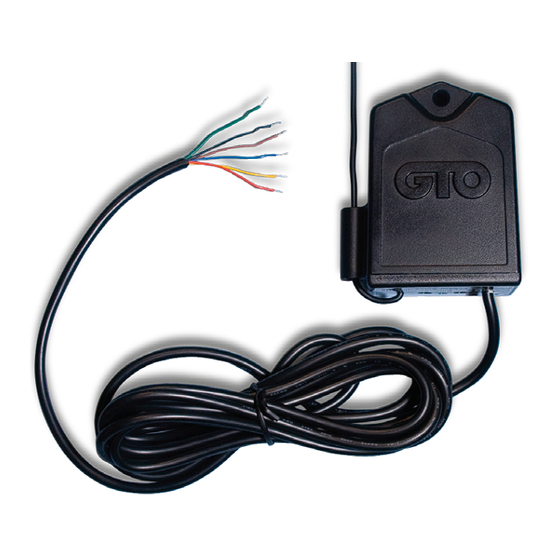

The RB709-U digital receiver is a
wireless radio control designed for
use with automated gate openers
and garage door openers. The
receiver has two channels for re-
ceiving signals from two separate
transmitters.
GTO Technical Support 1-800-543-1236
Mounting the Receiver
Consider the following when mounting the receiver:
• Standard receiver cable length is 10 feet (3.05 m).
• For exterior applications run the cable through
PVC conduit to protect it from damage.
• DO NOT run cable in conduit containing ac wiring.
• The receiver range can vary from 50 to 100
feet (15.2 to 30.5 m) depending upon weather,
topography, and external interference.
NOTE: Do not mount upside down in exterior applications.
Compatible transmitter:
• GTO narrow band transmitters (318MHz)
Power input:
• 8-24 V ac/dc, 10ma standby, 40ma activated (Red & Black wires).
Outputs: 2 channels pulsed outputs
• 2 channels dry-contact normally open relay outputs.
• Channel 1: Blue & Green wires.
• Channel 2: Yellow & Brown wires.
• Activated for .5 seconds when the correct transmitter code is received.
• Relay switching maximum rating: 24Vac/dc @ 1A.
• Operating Range 50 to 100 feet (15.2 to 30.5 m)
Indoor/Outdoor compatible.
FCC Regulation
This device complies with FCC rules Part 15. Operation is subject to the following conditions:
1. This device may not cause harmful interference.
2. This device must accept an interference that may cause undesired operation.
Transmitter distance may vary due to circumstances beyond our control. NOTE: The manufacturer
is not responsible for any radio or TV interference caused by unauthorized modifications to this
equipment. Such modifications could void the user's authority to operate the equipment.
www.gtoinc.com
Specifications

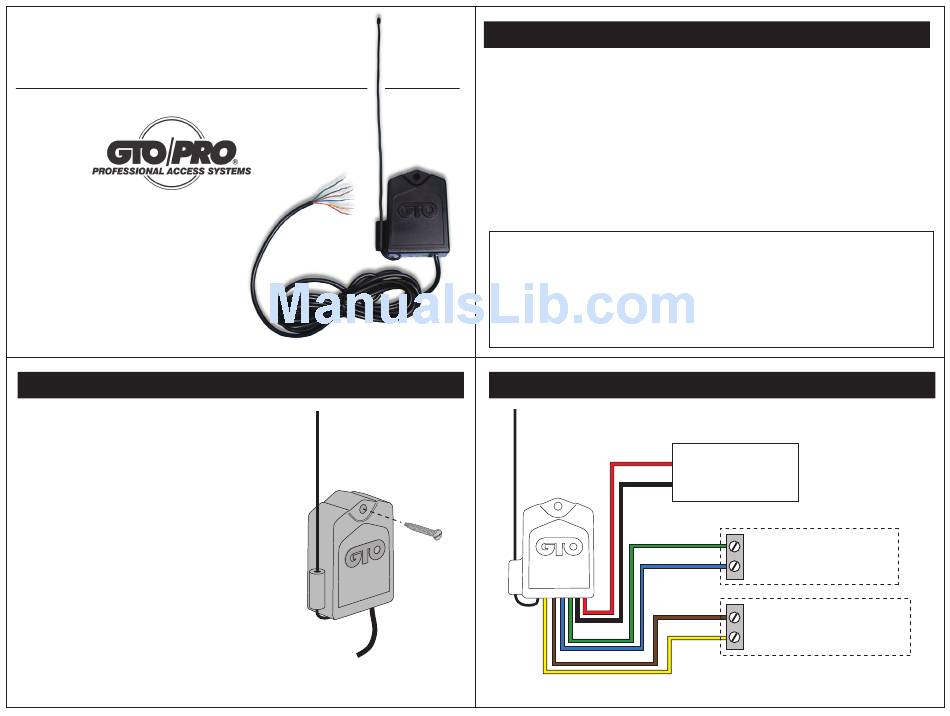

Connect Receiver to Relay Inputs and Power
8 to 24 VOLT AC/DC
RED
POWER SUPPLY
BLACK
RED WIRE to POSITIVE
BLACK WIRE to NEGATIVE
GREEN
BLUE
BROWN
YELLOW
1st GATE OPERATOR or DOOR OPENER
Channel 1 (GREEN WIRE to COM)
Channel 1 (BLUE WIRE to RELAY)
Channel 2 (BROWN WIRE to COM)
Channel 2 (YELLOW WIRE to RELAY)
2nd GATE OPERATOR or DOOR OPENER
